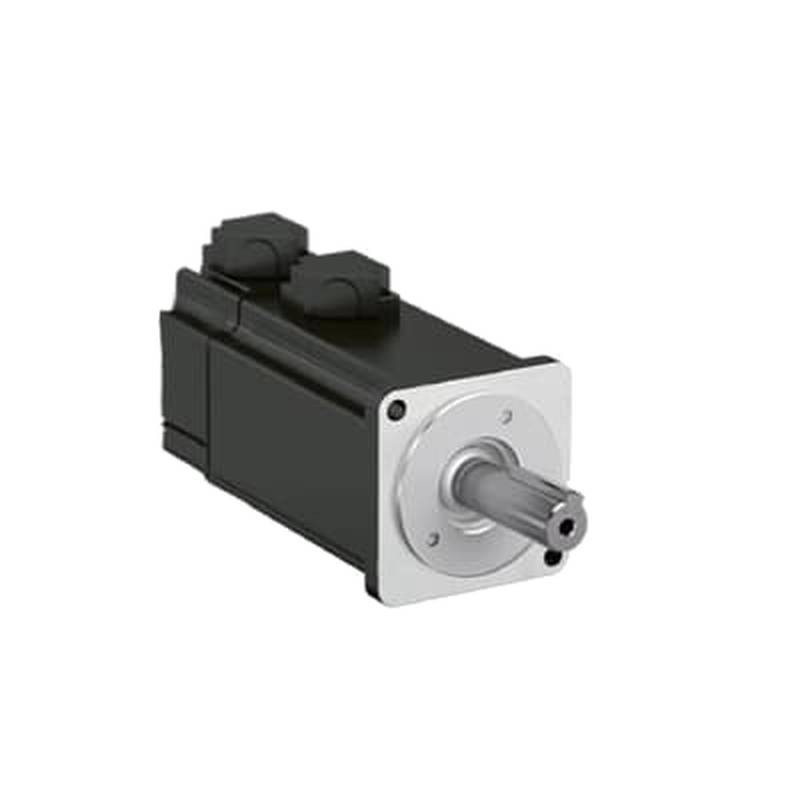

ABB ESM04X-101-302-T1N1A00 220V AC Servo Motor Servo Motor with Absolute Encoder Compact High-Precision Motion Control

Executive Overview and Market Landscape

 Modern automated manufacturing demands motion control systems that balance physical compactness with exceptionally high dynamic performance. As industrial lines scale up speed and throughput, the need for precision servo drives that deliver constant torque and exact positioning in restricted mounting spaces has intensified. The ABB ESM04X-101-302-T1N1A00 220V AC Servo Motor exemplifies this engineering approach, integrating high-density permanent magnet technology with an absolute encoder system to support precise closed-loop control. Developed for versatile application across electronics assembly, packaging machinery, precision textile equipment, and robotic end-effectors, this compact AC servo motor addresses critical requirements for high positional accuracy and rapid start-stop response. To meet the expanding global need for dependable drive components, Beijing Zhongping Technology delivers genuine original industrial automation products, empowering manufacturing facilities to achieve uninterrupted operational excellence.

Comprehensive Overview of ABB Servo Motor Product Lines and Industrial Applications

ABB holds an established presence in industrial drive technology, developing an extensive portfolio of electric motors, motion controllers, and servo drive systems tailored for high-performance motion applications. The brand's servo motor lineup encompasses high-dynamic brushless AC servo motors, compact medium-inertia drive units, direct-drive rotary motors, and specialized explosion-proof servo motors built for demanding industrial environments. These motion control solutions are engineered to interface seamlessly with advanced servo drives, offering smooth torque generation across full speed ranges, fast thermal dissipation, and high overload capability.

Across heavy industrial and high-precision production sectors, ABB motion components perform critical tasks in automated handling, CNC machine tool feeding, rotary indexing, high-speed wrapping, and articulated robotic joint actuation. The broader ESM series of AC servo motors is developed to provide a balance of high torque density and low inertia, enabling rapid velocity changes without introducing mechanical resonance or positional deviation. By leveraging advanced magnetic circuit designs and robust feedback architectures, ABB servo product lines allow industrial operators to optimize cycle times, maintain steady operational stability, and lower long-term maintenance overhead across diverse automation setups.

In-Depth Technical Specification and Innovation of the ABB ESM04X-101-302-T1N1A00

The ABB ESM04X-101-302-T1N1A00 is a compact 220V AC servo motor engineered specifically for applications demanding fine spatial integration and continuous dynamic performance. Operating on a standard 220V AC single-phase or three-phase supply, this motor features a rated output power of 100 watts and a rated rotational speed of 3000 rpm, capable of achieving maximum operational speeds to accommodate quick acceleration profiles. The physical architecture utilizes a compact 40 mm frame size, allowing machine builders to embed the drive unit into space-constrained machinery without altering structural layouts.

Central to the motion precision of the ESM04X-101-302-T1N1A00 is its integrated absolute encoder feedback mechanism. Unlike incremental encoder systems that require mechanical homing routines upon startup, the absolute encoder continuously retains positional coordinates even during power loss. This capability eliminates initialization delays, prevents collision risks during reboots, and guarantees high rotational feedback resolution for closed-loop motion control. Furthermore, the motor casing achieves an IP65 protection rating for the main body structure, safeguarding the stator windings and internal electronics against dust ingress and low-pressure water jets commonly present in active factory environments.

Structural Performance Comparison: Standard Industrial Motors versus ABB ESM04X-101-302-T1N1A00

Parameter Category: Positional Feedback Mechanism

Standard Industrial Motors: Incremental encoders requiring homing sequences at every power-up cycle.

ABB ESM04X-101-302-T1N1A00 System: Absolute encoder maintaining real-time position without mechanical homing.

Parameter Category: Physical Footprint and Power Density

Standard Industrial Motors: Bulky frame dimensions with lower torque-to-volume efficiency.

ABB ESM04X-101-302-T1N1A00 System: Ultra-compact 40 mm frame size delivering 100W rated output in tight spaces.

Parameter Category: Speed and Dynamic Response

Standard Industrial Motors: Moderate dynamic acceleration with potential velocity ripple at low speeds.

ABB ESM04X-101-302-T1N1A00 System: 3000 rpm rated speed with smooth low-speed torque and fast dynamic acceleration.

Parameter Category: Environmental Ingress Protection

Standard Industrial Motors: Basic IP54 open-frame protection vulnerable to dust particles and moisture spray.

ABB ESM04X-101-302-T1N1A00 System: IP65 enclosure protection safeguarding internal components against harsh factory environments.

Real-World Application Case Study: Semiconductor Packaging and Micro-Electronics Assembly

In a high-speed micro-electronics assembly plant located near Hsinchu, Taiwan, an automated surface-mount device placement line experienced ongoing yield losses and frequent re-calibration downtime. The existing indexing feed drive units utilized older incremental motors that suffered positional slip under rapid acceleration, requiring manual homing procedures whenever voltage fluctuations triggered machine resets.

To eliminate these efficiency bottlenecks, the engineering team retrofitted the high-speed chip feeder modules with the ABB ESM04X-101-302-T1N1A00 220V AC servo motor. Utilizing the 40 mm compact frame size, the upgrade was completed without altering the existing mechanical mounting plates. The integrated absolute encoder enabled immediate line restarts after power interruptions, while the 3000 rpm operating speed and high dynamic responsiveness allowed component placement rates to increase significantly.

The operational improvements yielded immediate economic results. Placement repeatability reached tight tolerances, decreasing component alignment errors by over 22 percent. Line setup and reboot times were shortened from 15 minutes down to mere seconds. To ensure the continuous reliability of the upgraded assembly lines, Beijing Zhongping Technology supplied fully certified factory-original ABB servo drive hardware and original interconnect components, giving the plant dependable hardware support for long-term production vitality.

Frequently Asked Questions (FAQ)

Q1: How does the integrated absolute encoder in the ABB ESM04X-101-302-T1N1A00 enhance positioning accuracy and operational efficiency during sudden power interruptions?

A1: The absolute encoder in the ABB ESM04X-101-302-T1N1A00 utilizes multi-turn absolute position tracking that continuously logs the precise angular coordinate of the motor shaft. When power is lost, the encoder maintains positional data via non-volatile memory or battery backup circuits. Upon restoring 220V AC power, the motion controller reads the exact position instantly without executing mechanical zero-point homing routines. This prevents mechanical collision hazards during sudden restarts, preserves precise multi-axis synchronization, and minimizes non-productive downtime in high-throughput production lines.

Q2: What electrical and mechanical precautions should be observed when installing the 40 mm frame ABB ESM04X-101-302-T1N1A00 in compact multi-axis machinery?

A2: When installing the 40 mm frame ESM04X-101-302-T1N1A00, technicians must ensure accurate axial alignment between the motor shaft and driven load to prevent excessive radial forces on the front bearing set. Mechanically, flexible couplings should be used to absorb minor mounting tolerances. Electrically, power supply wiring must comply with standard 220V AC input specifications, and signal cables for the absolute encoder must be routed separately from high-voltage power lines using shielded twisted-pair cabling to prevent electromagnetic interference from distorting feedback signals.

Q3: How does Beijing Zhongping Technology guarantee that all supplied ABB AC servo motors and automation hardware are 100 percent factory-original?

A3: Beijing Zhongping Technology enforces a comprehensive quality assurance protocol by maintaining verified direct supply relationships with global industrial distribution networks. Every ABB AC servo motor, including the ESM04X-101-302-T1N1A00, undergoes strict serial number verification, factory seal inspection, and original packaging validation before shipment. The company provides transparent tracking and authentic documentation for every unit, ensuring industrial clients receive brand-new, original-factory products that conform strictly to OEM manufacturing specifications without risk of receiving counterfeit or refurbished units.

What inventory management and logistics practices ensure rapid supply of critical servo drive components to manufacturing facilities?

A4: Efficient supply delivery is sustained through centralized warehousing, real-time inventory monitoring, and established international shipping channels. By stocking high-demand automation components, such as compact ABB servo motors and matching drive modules, orders can be processed and dispatched rapidly. Dedicated logistics teams coordinate customs declaration workflows and protective industrial packaging to safeguard delicate optical encoders and precision motor shafts during transit, reducing lead times and supporting urgent equipment replacement needs globally.

Q5: Why is sourcing original-factory servo motors from a qualified automation partner essential for preserving equipment warranty and performance integrity?

A5: Sourcing original-factory servo motors guarantees full compliance with designed electrical ratings, thermal limits, and feedback protocols established by the manufacturer. Non-original or improperly refurbished drive components often display irregular magnetic properties, inferior winding insulation, or degraded encoder signals, which can cause servo drive fault trips or premature motor failure. Working with a qualified automation supplier ensures access to genuine parts that maintain system compatibility, protect connected drive electronics, and uphold long-term production reliability throughout the equipment lifecycle.
