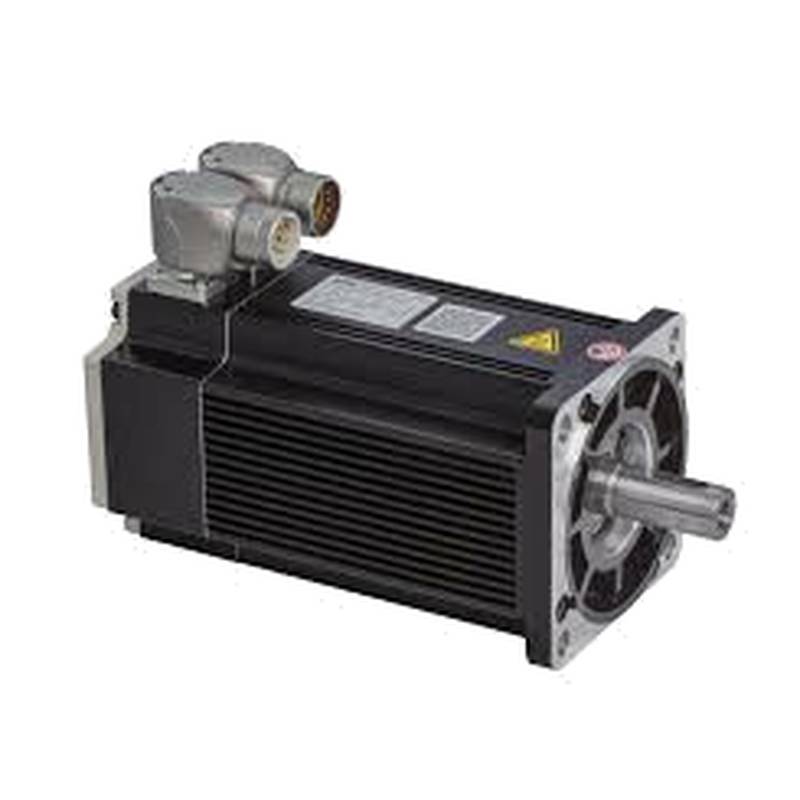

ABB HDS100-0308ASKNN 750 Watt Brushless AC Servo Motor for Motion Control

Modern industrial automation lines frequently suffer from throughput bottlenecks and unexpected downtime caused by thermal drift and encoder feedback degradation in high-duty-cycle positioning tasks.Precision motion control applications require high-performance components to eliminate mechanical backlash and velocity ripple during high-speed indexing.Implementing the ABB HDS100-0308ASKNN 750 watt AC servo motor ensures exact torque output and rapid dynamic response across automated packaging,CNC machining,and semiconductor assembly machinery.

This high-density brushless servo motor utilizes advanced permanent magnet synchronous technology combined with an integrated 20-bit optical absolute encoder to achieve sub-micron position tracking and wide speed regulation ranges.The heavy-duty electromagnetic shielding and internal thermal monitoring safeguard operational integrity against electrical noise and high load transients.Beijing Zhongping Technology provides immediate access to regional warehouse inventory for this model,ensuring pre-shipment testing,dynamic parameter matching,and full 12-month warranty support to minimize operational downtime.

Technical Specifications

Rated Power:750 W(at 3,000 rpm nominal speed)

Rated Torque:2.4 N·m(at 25°C ambient temperature)

Peak Torque:7.2 N·m(at maximum current transient)

Rated Voltage:220 VAC(3-phase power input)

Rated Current:4.2 A(continuous rated load)

Maximum Speed:5,000 rpm(no-load operational limit)

Rotor Inertia:0.00048 kg·m²(rotor core inertia)

Feedback Type:20-bit absolute optical encoder

Insulation Class:Class F(155°C maximum thermal limit)

Protection Rating:IP65(shaft seal excluded)

Operating Temperature:0°C to 40°C(ambient environment)

Motor Weight:2.8 kg(motor body assembly)

Compliance Standards:CE,RoHS,UL certified

System Integration and Hardware Setup

Mechanical mounting of this brushless servo motor requires a rigid precision-machined flange surface to absorb high torsional vibration and dynamic reaction forces during rapid acceleration profiles.Installers should utilize high-tensile socket head cap screws torqued to specified manufacturer limits across the four mounting holes,ensuring absolute coaxial alignment with the driven ball screw or gearbox shaft to prevent premature radial bearing wear.The electrical interface relies on robust heavy-duty industrial circular connectors for both power delivery and encoder feedback signals.Pinout configurations must be verified strictly against the wiring diagram to segregate low-voltage encoder data paths from high-voltage inverter switching lines.

Cable routing practices demand the exclusive use of double-shielded twisted-pair cables for encoder feedback to prevent electromagnetic interference generated by adjacent pulse-width modulation drives.The braided shield must achieve 360-degree bonding to the conductive backshell of the connector and ground directly to the designated machine earth stud to eliminate ground loops and signal corruption.Installers must incorporate mechanical strain relief clamps near the motor housing entry point to absorb dynamic flexing stresses and prevent conductor fatigue.Furthermore,the motor frame housing must maintain a low-impedance bonding path to the main control cabinet ground busbar.

Reliability and Environmental Durability

The unit is engineered to operate within an ambient temperature range of 0°C to 40°C and withstand relative humidity levels up to 90%without internal condensation.Featuring an IP65 protection rating,the main housing successfully prevents the ingress of harmful dust and low-pressure water jets from any direction,although a supplementary shaft oil seal is recommended if exposure to cutting fluids is anticipated.Thermal management relies on natural convection and conduction through the machine mounting plate,meaning adequate heatsink surface area must be provided by the structural framework to dissipate continuous operational heat losses effectively.

Preventive maintenance routines require periodic inspection of the cable jackets for signs of abrasion,chemical degradation,or thermal aging caused by repetitive flexing cycles.Technicians should verify the mechanical tightness of all terminal screws and connector locking rings every 6 months to prevent high-resistance contact points.Optical or magnetic encoder windows must be kept free of metallic debris and conductive particulate accumulation during servicing intervals.Under standard factory operating conditions within rated thermal and electrical limits,the calculated mean time between failures exceeds 40,000 hours of continuous motion service.

Selection Guidance and Alternative Options

Selecting the optimal motion control actuator requires careful calculation of the total load inertia ratio,peak acceleration torque curves,and root-mean-square thermal torque demands across the complete motion cycle profile.If the application demands higher continuous torque density or specialized hollow-shaft integration,engineers should evaluate alternative frame sizes within the same product family.Accurate matching of the servo amplifier current loop bandwidth to the motor winding inductance ensures optimal loop stability and prevents high-frequency acoustic resonance during positioning holding phases.

When facing unexpected OEM supply chain lead time bottlenecks for this specific 750 watt servo motor,Beijing Zhongping Technology provides comprehensive cross-reference evaluation and local stock replacement support.Their technical team analyzes electrical parameters,mechanical flange dimensions,and feedback protocols to supply fully compatible alternative units immediately,preventing costly plant downtime without requiring mechanical redesigns.

Quality Assurance,Safety&Compliance

Ensuring long-term operational safety in high-speed automated environments demands strict adherence to international electrical safety and electromagnetic compatibility standards.The ABB HDS100-0308ASKNN is manufactured in compliance with CE,RoHS,and UL safety benchmarks,featuring Class F winding insulation rated to withstand thermal surges up to 155°C.Embedded thermal sensors provide continuous monitoring to trigger drive-level EHS safety cutoffs prior to winding insulation breakdown.High-voltage dielectric isolation testing verifies that the stator windings can absorb transient voltage spikes without arcing to the grounded outer frame.

To guarantee zero-defect field deployments,every servo motor stocked at our regional distribution hub undergoes a rigorous pre-shipment quality audit.Our engineering specialists conduct winding resistance verification,phase-to-phase inductance balance checks,and encoder signal integrity audits using calibrated diagnostic test benches.This comprehensive quality control protocol confirms that motor inductance tolerances and feedback alignment match factory specifications precisely before the hardware arrives at your facility.

Frequently Asked Questions

Q1:What is the typical local stock availability and dispatch lead time for this motor model?

A1:Beijing Zhongping Technology maintains local warehouse inventory of the ABB HDS100-0308ASKNN servo motor for immediate fulfillment.The unit operates at a rated speed of 3,000 rpm with a 7.2 N·m peak torque output.Our logistics team dispatches orders within 24 to 48 hours to minimize unexpected line stoppage.

Q2:What warranty coverage applies to this brushless servo motor?

A2:This unit includes a full 12-month replacement warranty covering hardware defects and coil insulation anomalies under standard 220 VAC operating conditions.The motor features Class F 155°C thermal insulation to ensure long-term winding resilience.You can submit diagnostic logs directly to Zhongping's integration team to initiate fast RMA processing.

Q3:What input voltage and phase configuration does the motor require?

A3:The motor requires a nominal 220 VAC 3-phase power supply delivered through a compatible digital servo amplifier.It draws a rated current of 4.2 A under full load and withstands transient current spikes during peak acceleration.Our technical specialists provide complete drive parameter matching sheets prior to commissioning.

Q4:What feedback protocol is used by the integrated encoder?

A4:The motor features a 20-bit absolute feedback encoder that transmits high-resolution position data over a dedicated high-speed serial interface.This sensor enables sub-micron positioning accuracy across a maximum speed range of 5,000 rpm.Refer to the hardware connection manual for exact pinout assignments on the circular feedback connector.

Q5:What environmental protection rating does the motor housing maintain?

A5:The main motor body maintains an IP65 protection rating against dust ingress and low-pressure water streams from any direction.The seal rating applies to the main housing enclosure but excludes the rotating shaft pass-through point.We recommend installing an optional radial oil seal when deploying the unit in environments with cutting fluid spray.

Q6:What mechanical mounting tolerances are necessary during installation?

A6:The unit utilizes a standard metric square mounting flange that requires coaxial shaft alignment within 0.02 mm to prevent bearing overload.Absorbing the 7.2 N·m peak torque demands high-tensile M6 socket head cap screws torqued to factory specifications.Contact our engineering support desk for precise mounting flange dimension drawings and CAD models.

Q7:What routine maintenance checks prolong the operational lifespan of this motor?

A7:Maintenance involves checking cable jacket flexibility,verifying terminal screw torque every 6 months,and inspecting circular connectors for contamination.The brushless design eliminates mechanical contact wear,yielding a calculated MTBF exceeding 40,000 hours under rated thermal conditions.Free optical care guidelines and connector cleaning kits are available upon request.

Q8:How is electromagnetic noise suppressed between the drive and the motor coil?

A8:Noise suppression requires double-shielded twisted-pair feedback cabling with 360-degree ground termination at the conductive connector shell.Physical separation of low-voltage encoder signal lines from high-voltage 220 VAC pulse-width modulation power leads prevents signal distortion.Grounding the motor frame directly to the cabinet ground busbar maintains noise immunity.

Q9:What thermal protection mechanisms are built into the motor assembly?

A9:The motor incorporates integrated thermal sensors embedded within the stator windings to monitor continuous operational heat dissipation.Winding insulation is rated for Class F operating thresholds up to 155°C to protect against thermal overload during high-duty cycles.The technical staff at Zhongping can assist in calculating derating curves for ambient operating environments above 40°C.

Q10:Are matching power cables,encoder leads,and drive accessories available?

A10:We supply a complete range of pre-assembled double-shielded power cables,high-flex feedback leads,and mating industrial circular connectors.Accessories are rated for continuous dynamic flexing in drag chain applications up to 10 million cycles.You can order complete plug-and-play wiring harnesses bundled directly with your motor purchase.
