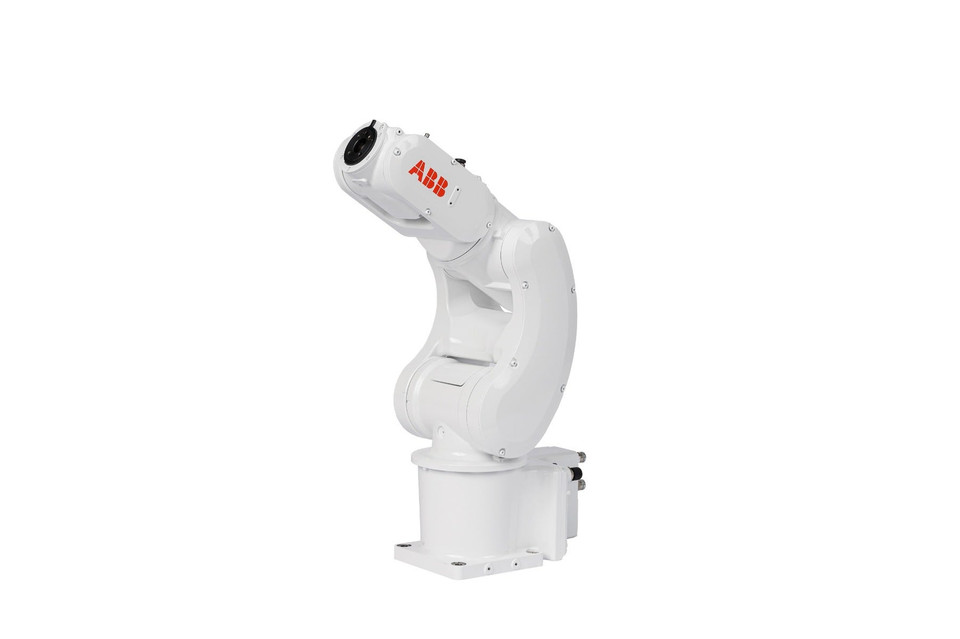

The ABB IRB 1010 is an advanced ultra-compact 6-axis articulated robot designed for high-precision automation in the electronics industry. As the smallest and most precise robot in ABB’s portfolio, it delivers exceptional speed and accuracy for handling and assembling miniaturized components such as smartphones, wearables, and hearables. With a reach of 275 mm and a payload of 0.5 kg, the IRB 1010 operates effectively in cleanroom environments (ISO Class 5 compliant), offering unmatched flexibility in space-constrained and sensitive production applications.
Design Philosophy: Precision by Design
The IRB 1010 is built for micro-assembly, incorporating a rigid magnesium arm, integrated cabling, and a compact controller to minimize vibration and particle generation. This design ensures exceptional path accuracy and repeatability (±0.01 mm), enabling perfect placement of microscopic components on the first attempt to maximize yield and reduce rework.
Key Features
Unmatched Precision and Speed: Delivers ±0.01 mm repeatability and accelerations up to 50 m/s², achieving cycle times up to 35% faster than comparable robots.
Cleanroom Optimized (ISO Class 5): Fully enclosed structure, smooth surfaces, and specialized lubrication minimize particle release, making it ideal for sensitive environments without extra enclosures.
Integrated Design: Internal cabling through the upper arm and base eliminates external cables, reducing contamination risks and simplifying maintenance.
OmniCore E10 Controller: Provides advanced motion control, built-in state machines, and IoT-ready connectivity via OPC UA for smart factory integration.
Technical Specifications
Model: IRB 1010
Type: 6-Axis Articulated Robot
Max. Payload: 0.5 kg
Reach: 275 mm
Repeatability: ±0.01 mm
Controller: OmniCore E10
Installation: Bench, shelf, wall, or ceiling
Weight: 13 kg
Cleanroom Class: ISO Class 5 (ISO 14644-1)
Applications
Micro-assembly of small components like sensors and connectors onto PCBs
Production of hearables, including TWS earbud assembly
Test and inspection using high-resolution cameras and sensors
Precision dispensing and soldering of adhesives or pastes
Key Advantages
The IRB 1010 stands out for its precision, cleanroom compatibility, and miniaturized design. It offers a future-proof solution for high-accuracy electronics manufacturing, supported by the powerful OmniCore platform for improved performance and seamless integration into Industry 4.0 environments.
Packaging & Warranty
ABB ensures secure and clean delivery suitable for cleanroom use. The product comes with a global warranty and support, including service agreements, remote diagnostics, and access to automation experts.
Frequently Asked Questions
What makes the ABB IRB 1010 ideal for electronics manufacturing and cleanroom use?
The IRB 1010 offers exceptional precision (±0.01 mm) necessary for handling miniature components, along with ISO Class 5 cleanroom certification. Its enclosed design and special lubrication prevent contamination, eliminating the need for additional protective enclosures and saving valuable production space.
How does the OmniCore E10 controller improve performance?
The OmniCore E10 enhances performance with advanced motion control, TrueMove, and QuickMove technologies for accurate path following and reduced cycle times. It supports integrated vision, force control, and OPC UA communication, enabling smarter automation and seamless data exchange within digital factories.
What installation options are available for the IRB 1010?
The robot’s compact and lightweight design (13 kg) allows for flexible installation on benches, shelves, walls, or ceilings. Internal cable routing ensures clean integration in any orientation, helping maximize space in crowded production environments.
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
