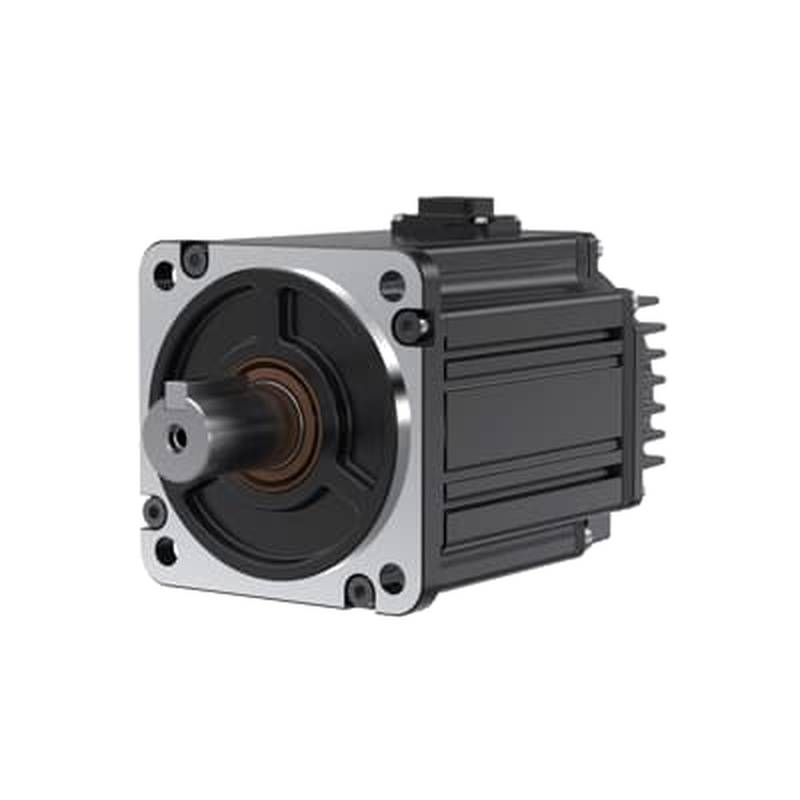

ABB ESM08X-75A-302-T4BTB00 750W Closed Loop Digital AC Servo Motor

The ABB ESM08X-75A-302-T4BTB00 is a 750W high-performance motor engineered for closed loop control of servo motor applications, serving as a critical component in digital ac servo drive systems. This unit provides precise motion management for automated manufacturing lines, CNC machinery, and robotic positioning assemblies. Featuring a rated power output of 750W, the motor integrates advanced feedback mechanisms to maintain synchronization and stability during high-speed operations. Engineering and maintenance teams frequently source this specific model to address degradation in legacy positioning systems, ensuring equipment reliability. Its robust construction supports consistent torque delivery, which is essential for maintaining throughput in complex industrial environments.

Product Type & Category Positioning

This product is categorized as a high-precision AC servo motor designed for integration into motion control architectures. Within industrial automation, it functions as an actuator that receives electrical signals from a servo drive to execute precise mechanical movements. It belongs to the broader class of closed-loop motion control hardware, which relies on continuous feedback to eliminate steady-state errors. This specific model is engineered for medium-inertia applications where rapid acceleration and precise positioning are fundamental to operational success.

Building on this classification, the motor acts as the physical terminal for control systems, converting electromagnetic energy into controlled mechanical torque. It is distinct from standard induction motors due to its ability to manage variable loads while maintaining high tracking accuracy. The ESM08X-75A-302-T4BTB00 series is specifically optimized for digital drives, facilitating high-speed communication and real-time response adjustment across automated production workflows.

Technical Specifications

Rated Power: 0.75 kW

Rated Torque: 2.39 NM

Rated Speed: 3000 RPM

Peak Torque: 7.17 NM

Rated Current: 5.1 A

Voltage Class: 200-230 V

Feedback Resolution: 20-BIT

Protection Class: IP65

Insulation Class: F

Operating Temperature: 0 to 40 °C

Technical Highlights

The electrical design of this motor is optimized for high-bandwidth communication within digital control environments. With a 20-BIT feedback resolution per manufacturer datasheet, the device ensures sub-millimeter positioning accuracy by providing granular data back to the drive. This level of resolution minimizes mechanical oscillation during high-speed cycles, which directly contributes to the longevity of connected gearboxes and lead screws.

Regarding performance, the motor demonstrates robust thermal stability and torque density during continuous duty cycles. The rated speed of 3000 RPM per manufacturer datasheet allows the system to achieve short cycle times in high-throughput assembly tasks. Furthermore, the IP65 protection rating provides a reliable barrier against dust and low-pressure water jets, ensuring operational integrity in environments where ambient contaminants are present.

Application Scenarios

Precision CNC Machining: The motor’s 20-BIT feedback resolution enables accurate tool-path execution during complex milling processes. This precision reduces the need for secondary finishing passes and extends the service life of cutting tools.   Automated Packaging Lines: Utilizing the 750W power output, the motor delivers consistent torque for high-speed conveyor indexing and product sorting. This stability prevents packet accumulation, significantly reducing system downtime.   Robotic Pick-and-Place: The high acceleration capability provided by the 7.17 NM peak torque allows for rapid movement between coordinate points. This efficiency increases total unit throughput while maintaining long-term component reliability.

Selection Recommendations

Suitable for High-Precision Assembly: The unit is highly suitable for tasks requiring high repeatability, such as electronic component mounting, due to its 20-BIT resolution and 3000 RPM rated speed.   Not Suitable for High-Temperature Industrial Furnaces: The motor is rated for an operating temperature of up to 40 °C per technical specifications, making it inappropriate for installation in environments exceeding this limit without active cooling.

FAQ

1. Does the 750W rating provide sufficient torque for heavy-duty material handling?

The 750W power output generates a rated torque of 2.39 NM, which is designed for medium-load applications rather than heavy-duty handling. If your process requires sustained torque above 7.17 NM, this motor may experience thermal throttling or premature failure. Beijing Zhongping Technology recommends evaluating your peak load requirements against the motor's torque-speed curve before finalizing your selection.

2. What is the maximum operating ambient temperature for this motor?

The motor is rated for an operating temperature range of 0 to 40 °C per manufacturer specifications. Operating this unit beyond 40 °C significantly degrades the insulation integrity and decreases expected operational life. Our team suggests ensuring adequate ventilation or cooling systems are in place if your facility ambient temperature exceeds 35 °C.

3. Can this motor be used in washdown environments?

The motor carries an IP65 protection class, meaning it is dust-tight and resistant to low-pressure water jets. However, it is not designed for total submersion or high-pressure steam cleaning, which are common in sanitary washdown applications. Please verify your cleaning protocol; if it involves high-pressure spray, additional protective enclosures will be required.

4. Is there a specific digital drive required for this 20-BIT feedback resolution?

Yes, this motor requires a servo drive capable of processing 20-BIT serial feedback data to achieve its rated performance. Using an incompatible drive will prevent the system from closing the loop effectively, resulting in positioning errors or communication faults. Our team can assist in verifying the compatibility of your current drive hardware.

5.What is the expected delivery timeframe for this unit?

Standard delivery for this 0.75 kW ABB ESM series servo motor is typically 2 to 4 weeks after order confirmation,depending on current factory production schedules and configuration requirements.We recommend contacting us for real-time inventory status and current lead times based on your specific delivery location and order volume.

6. How does the 5.1 A rated current affect power distribution planning?

The 5.1 A rated current is the primary value used to calculate the required capacity of your drive’s output stage and power cabling. Beijing Zhongping Technology suggests ensuring that your power supply and breakers are sized to handle the peak current demands to prevent nuisance tripping. You should consult your electrical schematics to verify that current limits are within safety margins.

7. What maintenance tasks are required to extend the life of this motor?

Regular maintenance includes checking the shaft seal for wear and ensuring the ventilation paths remain free of dust or debris. Given the IP65 rating, periodic inspection of the cable connectors for corrosion is also recommended to maintain signal integrity. Failure to clear debris can lead to overheating, so implement a quarterly visual inspection schedule.

8. Is this model compatible with legacy motor mounting brackets?

The mechanical dimensions must be verified against your existing frame to ensure bolt hole alignment and shaft height match. If the physical specifications do not align, an adapter plate or bracket modification will be necessary to secure the motor properly. We recommend reviewing the mechanical CAD drawings to ensure mechanical fitment before installation.

9. What upgrade path is available if this model does not fully match my requirements?

If your application requires higher power or alternative feedback protocols, we can recommend units within the same series that offer higher torque or different interface capabilities. Please provide your specific torque and speed requirements to our team for a comprehensive technical review. We will identify an alternative configuration that integrates into your existing control architecture.

10. Are there spare parts available for this motor?

Spare parts such as replacement oil seals and feedback connectors are available, though the motor itself is often replaced as a modular unit for critical uptime requirements. If you encounter bearing or winding failure, replacing the unit is often more cost-effective than a field repair. Our team can provide a quotation for a complete replacement unit to minimize your facility's downtime.
