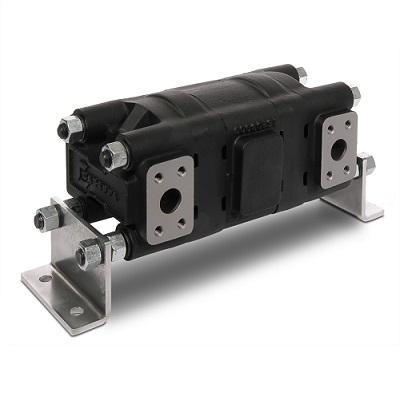

What are the applications of CASAPPA synchronous motors?

1, as a flow distribution device, according to the system requirements to distribute the output flow of the pump

If the shaft is equipped with multiple sets of plain bearings, it is required to ensure that each bearing is supplied with the same amount of oil or in proportion. Synchronous shunt motors do not have any external leakage, and if one part of the rotor is rotating, the other parts will also pass through the same or proportional flow.

2, as a flow balancing device, synchronous operation of multiple cylinders or motors

If several motor live hydraulic cylinders work in parallel, supplied by the same oil source, and there is no control in any way on each branch, then the one bearing the smallest load starts the working cycle first, after its stroke is completed, the second smallest load starts working, and so on.

However, this mode of work is usually not the required mode, so the total pump flow is divided into a series of partial flow, so that several motors or hydraulic cylinders working in parallel are opened at the same time, and at the same time reach the designated position, and the synchronous shunt motor plays this important role.

3. As a booster device, the pressure of a certain output outlet of the shunt exceeds the output pressure of the pump

Synchronous shunt motor, in addition to being a "synchronous element", can also be used as a "supercharger", so that a certain output pressure of the motor exceeds the output pressure of the hydraulic pump.
