HollySys AT4500S Sanitary Pressure Transmitter Tank Level Sensor

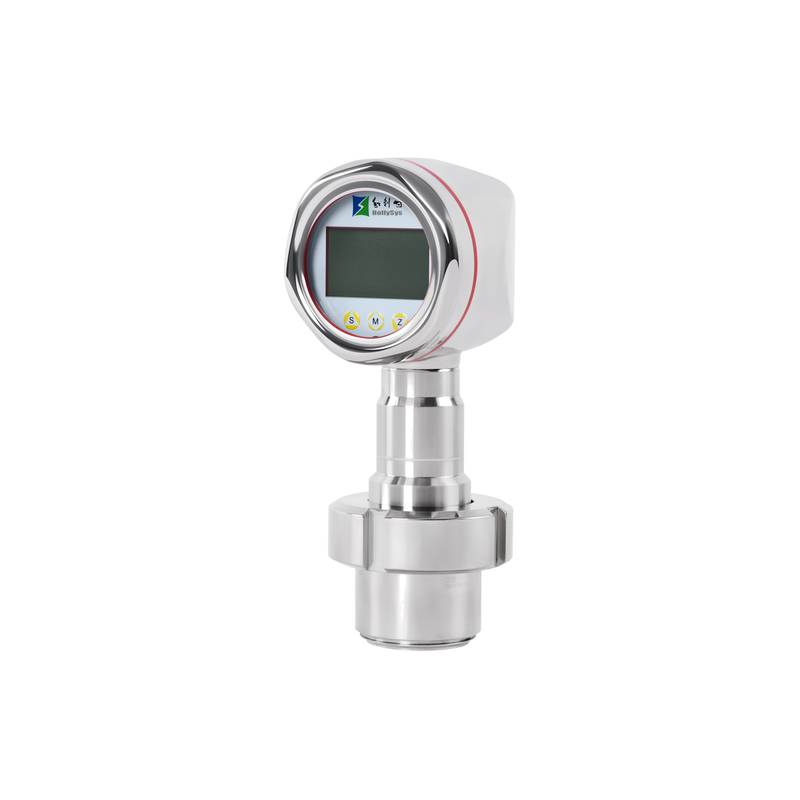

The HollySys AT4500S sanitary pressure transmitter utilizes a flush-mounted 316L diaphragm design to eliminate media accumulation and microbial growth in pharmaceutical and food processing pipelines. This precision sensor delivers reliable pressure and tank level measurements under rigorous clean-in-place and sterilization-in-place operating cycles.

In modern aseptic processing facilities and biopharmaceutical manufacturing plants, standard industrial pressure transmitters frequently introduce critical engineering vulnerabilities. Conventional threaded connections or recessed sensor ports create dead zones where viscous biological media, fermentation broth, or dairy products can stagnate. This trapped material resists standard cleaning routines, leading to bacterial proliferation, cross-contamination, and potential batch failure. Furthermore, aggressive clean-in-place routines involving high-temperature caustic solutions and periodic sterilization-in-place cycles exceeding 120 degrees Celsius subject measuring instruments to severe thermal shock. Such environmental stress typically induces zero-point drift, membrane fatigue, and signal degradation in standard electronic instrumentation, compromising process safety and regulatory compliance.

The HollySys AT4500S sanitary pressure transmitter directly addresses these persistent containment challenges through a dedicated hygienic mechanical architecture. The instrument incorporates a fully welded 316L stainless steel external structure paired with an optimized flush diaphragm process connection, polished to a surface finish roughness of less than or equal to 0.4 micrometers. By eliminating internal crevices and pocket zones, the process fluid flows smoothly across the isolating membrane, ensuring complete product release during drainage and rapid rinsing. The internal pressure chamber utilizes FDA-compliant sanitary filling fluids that safely transmit process pressure to the piezoresistive silicon sensor element while withstanding wide temperature fluctuations. A robust digital temperature compensation algorithm is integrated into the onboard processing circuit, continuously neutralizing thermal expansion coefficients and maintaining stable output performance during rapid thermal cycling.

Technical Specifications

Product Series: AT4500S Sanitary Pressure Transmitter

Measurement Range: 0 ~ 10 kPa to 0 ~ 10 MPa

Output Signal: 4-20 mA with HART, Modbus-RTU / RS485

Reference Accuracy: ± 0.2% of span, optional ± 0.1% of span upper limit

Isolating Diaphragm Material: 316L stainless steel, Hastelloy C optional

Surface Finish: Ra ≤ 0.4 µm

Process Connection: Sanitary clamp, flange types conforming to international standards

Filling Fluid: FDA-compliant sanitary grade

Operating Temperature Range: - 20°C - 85°C (medium dependent)

Enclosure Protection Rating: IP67

System Integration and Hardware Setup

Successful physical installation and electrical integration of the AT4500S require careful attention to wiring topology and grounding protocols in electrically noisy industrial environments. The transmitter features a robust industrial housing equipped with standard cable entries designed to maintain an IP67 protection rating against moisture and washdown jets. Technicians should utilize shielded twisted-pair instrument cables for the 4-20 mA analog loop and digital communication lines to minimize electromagnetic interference from nearby variable frequency drives or high-power heating elements. The cable shield must be grounded at a single point—typically at the control cabinet side—to prevent ground loops that could distort low-level process signals. When establishing local communication via HART or Modbus-RTU over RS485, loop resistance must remain within specified operational limits to ensure data integrity during long-distance transmission to the distributed control system or programmable logic controller.

Reliability and Environmental Durability

Long-term operational stability in harsh food and pharmaceutical environments demands superior mechanical durability and effective thermal management. The AT4500S is engineered with a heavy-duty all-stainless-steel outer enclosure that withstands aggressive external cleaning agents, acidic washdowns, and high-pressure water jets commonly used in daily plant sanitation. The sensor element is hermetically sealed to prevent moisture ingress and condensation accumulation during rapid ambient temperature swings. Its advanced mechanical isolation protects the internal piezoresistive core from pressure spikes, water hammer, and hydraulic shock generated by fast-acting control valves or positive displacement pumps. These structural characteristics yield a high mean time between failures, reducing unplanned maintenance interventions and sustaining continuous production schedules across demanding fermentation and brewing lines.

Selection Guidance and Alternative Options

Choosing the appropriate pressure transmitter configuration involves evaluating specific process parameters, including maximum working pressure, operating temperature extremes, and chemical compatibility of the wetted materials. Engineers must select the correct range span—from 10 kPa for low-pressure bioreactor headspace monitoring up to 10 MPa for high-pressure homogenization lines—to maintain optimal measurement resolution and accuracy. For standard aqueous applications, 316L stainless steel diaphragms provide sufficient corrosion resistance, whereas highly corrosive chemical cleaning agents or aggressive media may require Hastelloy C isolating membranes. Beijing Zhongping Technology offers expert technical support and comprehensive cross-reference selection services to help engineering teams match exact process specifications with suitable device configurations from local inventory.

Frequently Asked Questions (FAQ)

1. What is the standard delivery lead time and warranty policy for this transmitter?

Orders processed through Beijing Zhongping Technology are typically dispatched from local stock within standard commercial timeframes, and the unit is backed by a comprehensive 12-month manufacturer warranty covering material and workmanship defects.

2. Does Beijing Zhongping Technology provide pre-shipment calibration reports?

Yes, every unit undergoes rigorous quality verification prior to dispatch, and traceable calibration documentation can be supplied upon request.

3. Can the AT4500S withstand continuous clean-in-place and sterilization-in-place procedures?

Yes, the wetted components are designed to withstand high-temperature alkaline cleaning solutions and steam sterilization cycles up to standard industrial sanitary thresholds without structural degradation.

4. What is the purpose of the surface finish rating of Ra less than or equal to 0.4 micrometers?

The ultra-smooth polished surface minimizes microscopic imperfections where bacteria or organic residues could adhere, ensuring effective cleaning and preventing biological contamination.

5. How does the HART communication protocol benefit field calibration?

HART protocol enables remote digital interrogation, configuration, damping adjustment, and diagnostic monitoring of the transmitter directly from the control room or via a handheld communicator without requiring physical access to the device.

6. Is it possible to adjust the zero and span settings locally without a handheld communicator?

Yes, the device supports external zero and span adjustment mechanisms depending on the selected local display and housing configuration option.

7. What power supply voltage is required for standard operation of the AT4500S?

The transmitter operates on a standard loop-powered DC voltage range typically spanning between 12 VDC and 30 VDC, depending on the specific output configuration and load resistance.

8. Are alternative process connections available for non-standard pipe diameters?

The series provides a wide variety of international standard sanitary connections, including tri-clamp, thread, and flange configurations, to match diverse piping infrastructure requirements.

9. What isolating diaphragm material should be chosen for highly corrosive cleaning chemicals?

For processes exposed to aggressive oxidizing agents or severe chemical attack, Hastelloy C isolating diaphragms are recommended as an alternative to standard 316L stainless steel.

10. How does the integrated temperature compensation algorithm improve measurement accuracy?

The onboard processor dynamically corrects output signals in real-time to counteract thermal expansion effects caused by fluctuating process temperatures, ensuring stable pressure readings.
