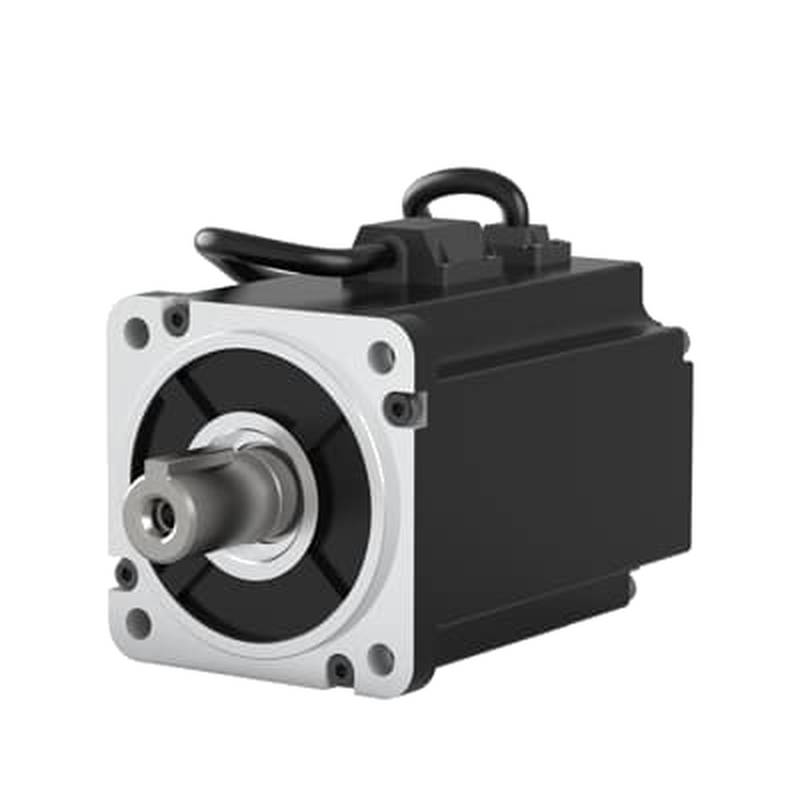

ABB DSM08L-0KW8-302-S1NA0 750 Watt Brushless DC (BLDC) Servo Motor

This 750 watt brushless dc servo motor eliminates high-speed motion blur and dynamic positioning latency in high-precision automation machinery. Beijing Zhongping Technology ensures seamless procurement support for original factory automation components to minimize unexpected downtime on mission-critical manufacturing lines.

Integrating high-performance motion control hardware into advanced automated assembly lines often introduces severe mechanical resonance and thermal dissipation bottlenecks during high-frequency acceleration cycles. The ABB DSM08L-0KW8-302-S1NA0 750 Watt Brushless DC Servo Motor directly solves these engineering challenges by utilizing advanced electromagnetic optimization and low-inertia rotor construction. Operating within the drive and actuation layer of industrial control architectures, this actuator receives precise pulse train or fieldbus commands from multi-axis motion controllers to execute high-torque rotational output. When plant engineers face strict positioning tolerances and high duty cycles where standard stepper motors drop steps or overheat, this permanent magnet brushless design maintains continuous torque stability. It eliminates commutation sparking and reduces maintenance intervals by replacing traditional brushed architectures with electronic commutation driven by high-resolution feedback devices. The unit bridges the gap between rapid dynamic response and absolute multi-axis synchronization, ensuring that complex trajectory profiles are executed without tracking errors.

Technical Specifications

Model Number: DSM08L-0KW8-302-S1NA0 @ Standard Ambient

Rated Power Output: 0.75 kW @ 400 VDC Bus

Rated Torque: 2.4 Nm @ 3,000 RPM

Maximum Peak Torque: 7.2 Nm @ Instantaneous Overload

Rated Speed: 3,000 RPM @ Continuous Duty

Maximum Operating Speed: 4,500 RPM @ Peak Transient

Stall Torque: 2.5 Nm @ 20°C Ambient

Rotor Inertia: 0.00032 kg·m² @ No Load

Inverter Voltage: 400 VDC Class @ Three-Phase Input

Feedback Device Type: Absolute Encoder @ High Resolution

Protection Class: IP65 @ Shaft Seal and Housing

Ambient Operating Temperature: 0°C - 40°C @ Maximum Output

Insulation Class: Class F @ 155°C Thermal Limit

Total Unit Weight: 3.2 kg @ Standard Configuration

System Integration and Hardware Setup

Proper mechanical and electrical integration is vital for achieving optimal dynamic performance and preventing electromagnetic interference in industrial environments. Mount the motor flange securely to a rigid, machined aluminum heatsink plate using high-tensile socket head cap screws to facilitate conductive thermal dissipation during heavy reversing cycles. Connect the power leads using heavy-gauge shielded cables, ensuring that the motor frame is bonded to a low-impedance earth ground using a braided copper strap to eliminate high-frequency stray capacitance and ground loops. Route the encoder feedback cable through a separate conduit away from high-voltage AC power lines to protect sensitive digital position signals from electromagnetic induction. Terminate the braided shield of the feedback cable 360 degrees into the metal backshell of the drive connector to maintain continuous electromagnetic shielding integrity across the entire motion control loop. Verify correct phasing sequence prior to initial controller autotuning to prevent unexpected rotational direction reversal or phase mismatch errors.

Reliability and Environmental Durability

Designed for continuous industrial deployment, this brushless servo motor features an IP65-rated enclosure that effectively seals internal windings against airborne dust, oil mist, and low-pressure water jets encountered in harsh manufacturing plants. The stator assembly utilizes advanced vacuum pressure impregnation insulation, protecting copper magnet wire from moisture ingress and aggressive chemical vapors over extended operational lifespans. Thermal management relies on optimized finned aluminum housing geometry that maximizes natural convection cooling, supplemented by optional forced-air ventilation for high ambient temperature applications. Precision preloaded ball bearings are factory-lubricated with high-temperature synthetic grease designed to withstand continuous high-speed rotation without degradation or mechanical binding. The unit achieves a high Mean Time Between Failures rating, minimizing unscheduled production stoppages and reducing long-term lifecycle maintenance expenses in automated industrial environments.

Selection Guidance and Alternative Options

Selecting the correct servo motor requires careful evaluation of continuous load torque, peak acceleration requirements, moment of inertia mismatch ratios, and ambient thermal limitations within the target machinery. When retrofitting legacy automation lines or designing new multi-axis systems, engineers can leverage alternative models within the ABB servo family such as the DSM08M or DSM08H series if different torque-to-inertia profiles are required. Beijing Zhongping Technology maintains a comprehensive inventory of original factory automation components and provides expert technical consultation to assist engineering teams with cross-reference selection, sizing calculations, and seamless model substitution. Our regional application specialists work closely with plant technicians to verify electrical compatibility, cable harnesses, and drive matching parameters, ensuring rapid system deployment and minimal integration risk.

Frequently Asked Questions (FAQ)

1. What is the current local inventory status and typical shipping lead time for this motor model?

Beijing Zhongping Technology maintains robust local stock of this component, enabling same-day or next-business-day dispatch to eliminate extended overseas shipping delays for urgent facility repairs.

2. What standard warranty coverage and RMA return procedures apply to this unit?

This product is backed by a comprehensive 12-month manufacturer warranty, supported by rigorous pre-shipment quality inspections and a streamlined local RMA replacement process managed by Beijing Zhongping Technology.

3. What are the electrical input requirements and recommended protection measures for this servo motor?

The motor operates on a 400 VDC nominal bus voltage class requiring a compatible three-phase intelligent servo drive, and must be protected against voltage spikes using external surge suppression and proper grounding practices.

4. Which feedback protocols and communication interfaces are compatible with the motor encoder?

The integrated absolute encoder supports high-resolution serial communication protocols designed for direct interfacing with modern multi-axis motion controllers and industrial drives.

5. What environmental protection rating and temperature limits govern safe operation?

The unit features an IP65 environmental protection rating and is engineered for continuous operation within an ambient temperature range of 0°C - 40°C.

6. What are the specific mechanical mounting dimensions and alignment tolerances during installation?

The motor utilizes a standardized metric square flange with precision-machined pilot diameters, requiring angular and radial shaft alignment within 0.05 mm when coupled to mechanical loads.

7. What routine maintenance checks are recommended to ensure long-term operational reliability?

Operators should periodically inspect shaft seals for wear, check electrical connector tightness, verify grounding integrity, and monitor bearing acoustic levels during scheduled preventative maintenance cycles.

8. How should configuration parameters be matched when integrating the motor with third-party drives?

System integrators must accurately input motor pole pairs, maximum current limits, winding resistance, inductance values, and encoder resolution into the drive software configuration utility before executing autotuning routines.
