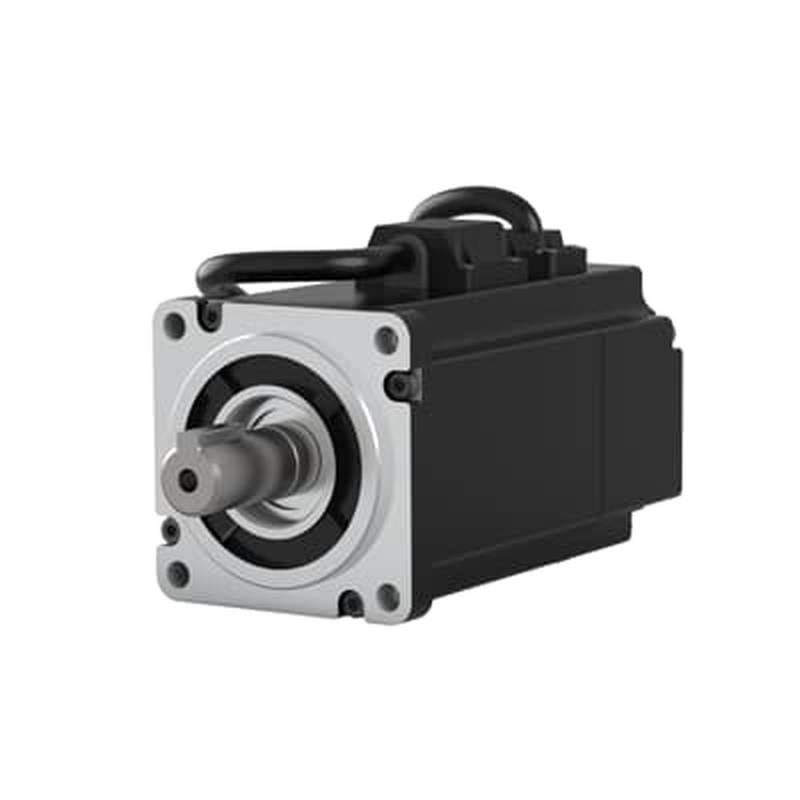

ABB DSM06L-0KW4-302-S1NA0 High Precision AC Servo Motor for Motion Control

Engineered for high-performance motion control applications, the ABB DSM06L-0KW4-302-S1NA0 precision servo motor delivers exceptional dynamic response and positioning accuracy. When integrated into advanced automated manufacturing equipment, this high precision servo motor effectively eliminates tracking errors and ensures sub-micron repeatability under rapid load variations.

The implementation of high-precision multi-axis motion control systems frequently encounters significant engineering bottlenecks, such as thermal drift, harmonic resonance, and encoder feedback jitter during high-acceleration cycles. Industrial automation engineers often face these hurdles when demanding rapid settling times while maintaining strict trajectory tolerances under heavy continuous loads. Operating primarily within the drive layer of industrial automation architecture, this servo motor interfaces directly with high-performance digital servo drives through specialized feedback and power cabling. It translates precise electrical current commands into controlled mechanical rotation, leveraging a high-resolution encoder to close the position and velocity feedback loops. Utilizing precision servo motor technology, the drive system continuously monitors rotor position and automatically compensates for external disturbances, thereby safeguarding the integrity of multi-axis synchronized operations across automated production lines.

Technical Specifications

Rated Power: 0.75 kW @ 400 VDC

Rated Torque: 2.4 Nm @ 20°C Ambient

Max Speed: 5000 rpm @ Continuous Duty

Peak Torque: 7.2 Nm @ Max Current

Inertia: 0.00045 kg·m² @ Rotor Shaft

Encoder Type: Absolute Multiturn @ 24 VDC

Protection Class: IP65 @ Shaft Seal Excluded

Operating Temperature: 0°C - 40°C @ Rated Load

Weight: 3.2 kg @ Standard Configuration

System Integration and Hardware Setup

Proper mechanical and electrical integration is vital for realizing the full performance potential of this high precision servo motor. Technicians must mount the motor frame securely to a rigid, machined aluminum or steel mounting plate using high-tensile fasteners to dissipate operating heat and prevent harmonic vibration coupling. When executing electrical connections, separate high-voltage motor power leads from low-voltage encoder feedback cables within industrial cable trays to mitigate electromagnetic interference. Shielded twisted-pair cables must be utilized for the feedback loop, with the outer electromagnetic shield terminated 360 degrees to the conductive backshell of the connector or the dedicated EMC ground clamp on the drive chassis. Maintaining a low-impedance earth ground connection directly from the motor housing to the central machine ground bus prevents ground loops and protects digital communication integrity against high-frequency switching noise generated by pulse-width modulation in the servo drive.

Reliability and Environmental Durability

Designed for rigorous continuous-duty industrial environments, the motor features a robust housing construction rated to IP65 for dust and liquid ingress protection when utilizing optional shaft seals. The thermal management architecture relies on natural convection and efficient internal conduction paths, allowing the unit to maintain stable winding temperatures under demanding duty cycles without requiring auxiliary forced-air cooling. Preventative maintenance technicians should periodically inspect the shaft sealing ring for signs of wear or chemical degradation, especially in environments exposed to cutting fluids or aggressive washdown agents. The calculated mean time between failures for the internal bearing assemblies and optical encoder components ensures extended operational longevity, provided that radial and axial shaft loads remain strictly within the manufacturer specified dynamic thresholds.

Typical Applications

Conveyor speed control operations require precise velocity profiling to ensure smooth item transfer without slippage or mechanical shock across complex multi-stage transport lines.

CNC machining axis drives demand exceptional dynamic stiffness and high-frequency response to execute intricate contouring paths while maintaining strict dimensional tolerances on metallic workpieces.

Packaging machinery indexing tasks rely heavily on rapid start-stop cycles and minimal settling times to achieve high throughput rates in high-speed bottling and wrapping cells.

Robotics articulation joints utilize high-torque-to-inertia ratios to deliver fluid multi-axis motion, ensuring precise payload placement in automated assembly and welding stations.

Semiconductor wafer handling equipment requires ultra-smooth low-speed rotation and zero backlash to prevent micro-vibrations during delicate substrate transfer processes.

How It Works

The operational cycle begins when the motion controller transmits a real-time trajectory command, specifying target position and velocity profiles to the paired servo drive.

The servo drive processes this command and modulates power transistors to deliver a precise three-phase sinusoidal current to the motor stator windings via insulated power cables.

As electrical current flows through the stator coils, it generates a rotating magnetic field that interacts with the permanent magnets embedded in the rotor assembly.

This magnetic interaction induces mechanical torque, driving the rotor shaft to rotate in exact synchronization with the applied electrical phase angle.

Simultaneously, the high-resolution absolute encoder mounted on the rear shaft monitors angular displacement and velocity, transmitting real-time feedback pulses back to the servo drive.

The drive compares the actual position against the commanded trajectory, instantly adjusting current output to correct for any dynamic error or mechanical load disturbance.

Selection Guidance and Alternative Options

Selecting the appropriate precision servo motor requires careful evaluation of continuous torque requirements, peak acceleration torque, thermal dissipation limits, and moment of inertia matching between the motor and the driven load. When existing production lines require immediate hardware migration or retrofitting, automation professionals can leverage the technical expertise of Beijing Zhongping Technology to identify exact functional equivalents and cross-reference alternative frame sizes or winding configurations. The local technical team at Beijing Zhongping Technology maintains comprehensive engineering data to assist with complex multi-axis sizing calculations, ensuring seamless compatibility with legacy control platforms and minimizing unexpected downtime during system upgrades.

Frequently Asked Questions (FAQ)

1. What is the current local stock status and typical delivery timeline for this unit?

Beijing Zhongping Technology maintains active regional inventory for this model, enabling rapid same-day or next-day dispatch to minimize equipment downtime and eliminate overseas transit delays.

2. What are the terms of the product warranty and the RMA return procedure?

This unit is backed by a comprehensive 12-month warranty covering manufacturing defects, supported by rigorous pre-shipment quality verification and streamlined local RMA processing managed directly through Beijing Zhongping Technology.

3. What is the nominal operating voltage and power consumption profile under rated load?

The motor operates on a standard bus voltage associated with 400 VDC drive systems, drawing current proportional to mechanical load up to its rated power capacity of 0.75 kW.

4. What communication protocols and feedback interfaces are supported by the encoder?

The integrated absolute multiturn encoder communicates position data via high-speed serial protocols designed for noise-resistant digital transmission with compatible servo drives.

5. What are the environmental protection ratings and allowable ambient operating temperatures?

The unit meets IP65 standards for dust and moisture resistance when proper sealing is applied, and it operates reliably within an ambient temperature range of 0°C - 40°C.

6. What are the critical mechanical installation and alignment considerations?

Mounting requires a rigid, flat metallic surface to ensure proper thermal dissipation, and precise shaft coupling alignment is mandatory to prevent premature bearing wear from radial and axial misalignment forces.

7. What routine maintenance procedures are recommended to ensure optimal operational longevity?

Routine maintenance involves inspecting cable connections for secure seating, checking shaft seals for wear in contaminated environments, and verifying that cooling airflow remains unobstructed around the motor housing.

8. How does one ensure software compatibility and parameter matching with third-party controllers?

Parameter tuning requires matching the motor electrical constants, inertia ratio, and feedback resolution within the configuration software of the motion controller or servo amplifier.
