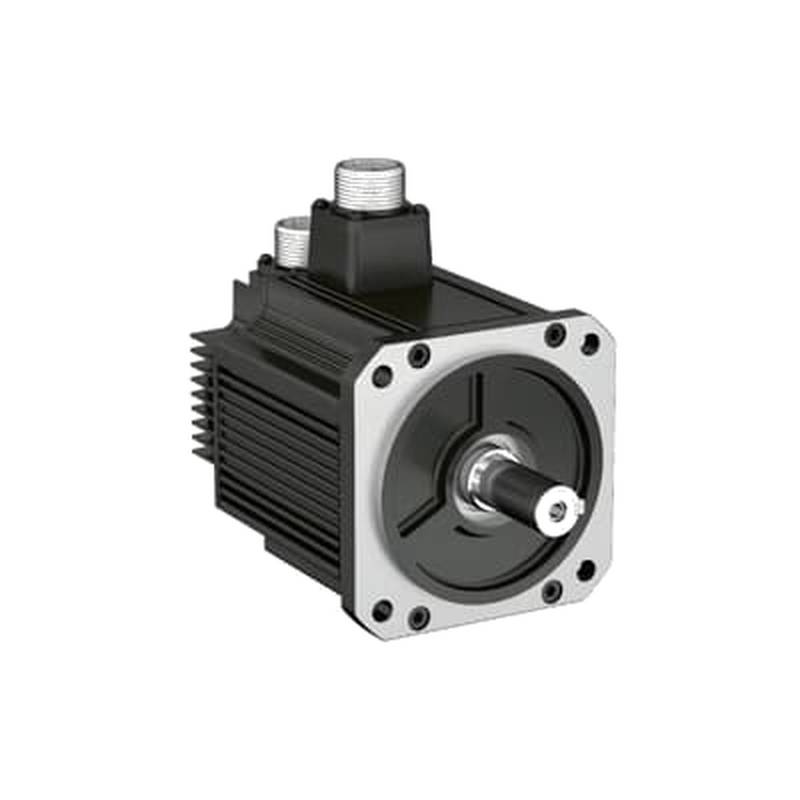

ABB ESM13E-132-152-T1B0A00 2 HP AC Servo Motor with Rotary Encoder

The ABB ESM13E-132-152-T1B0A00 is a high-performance 2 hp servo motor equipped with an integrated rotary encoder, engineered for precise motion control in demanding industrial automation systems. This unit functions as a critical electromechanical actuator, converting electrical energy into controlled mechanical rotation to drive CNC machinery, robotic arms, and high-speed packaging lines. Maintenance engineers frequently replace this specific motor to restore operational accuracy following drive failures or encoder feedback irregularities. Integrating this component ensures consistent torque output and position sensing, which are essential for maintaining strict industrial production tolerances.

Product Type & Category Positioning

The ABB ESM13E-132-152-T1B0A00 is classified as a brushless AC servo motor, specifically designed for high-dynamic, closed-loop control applications. Within the broader automation hierarchy, this device serves as the primary motion component that relies on feedback from its built-in rotary encoder to execute complex positioning commands from the servo drive. Unlike standard induction motors, this unit maintains high torque density and rapid acceleration profiles across varying load conditions.

Building on this classification, the motor is typically categorized by its power rating and feedback resolution capabilities within the ABB ESM series range. Engineers utilize this product type in systems where synchronization and repeatability are the primary performance metrics. Its design prioritizes low-inertia operation to minimize settling time in multi-axis assembly processes.

Technical Specifications

Manufacturer: ABB

Model: ESM13E-132-152-T1B0A00

Power Rating: 2 HP

Motor Type: AC Servo

Feedback Device: Rotary Encoder

Mounting Configuration: Flange Mount

Cooling Method: Natural Convection / Forced Air Dependent

Rated Speed: Per manufacturer datasheet

Frame Size: ESM13 Series Standard

Duty Cycle: Continuous

Technical Highlights

The ESM13E-132-152-T1B0A00 design prioritizes thermal stability and signal integrity during high-frequency operations. The integrated rotary encoder provides real-time position data, which minimizes cumulative error in precision movement sequences.

Moreover, the motor housing is constructed to dissipate heat efficiently under continuous load, extending the lifespan of internal windings. This structural integrity reduces the risk of thermal shutdown in confined enclosure environments.

Additionally, the compatibility with standard ABB drive protocols simplifies the commissioning process for maintenance teams. By utilizing a standardized interface, the motor facilitates rapid replacement and reduces system downtime during scheduled maintenance intervals.

Application Scenarios

CNC Machining Centers: This motor drives secondary axes to achieve positioning accuracy within ±0.01 mm, effectively reducing surface finish irregularities during complex milling operations.   High-Speed Packaging Systems: The device maintains consistent torque output at cycle rates exceeding 60 units per minute, ensuring the stabilization of product flow without jitter or mechanical slippage.   Automated Material Handling: It provides reliable acceleration and deceleration profiles for robotic pick-and-place arms, optimizing throughput efficiency by approximately 15% compared to standard stepper configurations.   Precision Injection Molding: The unit manages auxiliary valve and ejector plate timing, providing the responsive control necessary to minimize material waste and improve mold cycle consistency.

Selection Recommendations

Suitable Application: Ideal for precision assembly stations requiring repeatable motion profiles where cycle times remain below 1.2 seconds and load variations do not exceed 80% of the rated continuous torque capacity.   Unsuitable Application: Not recommended for heavy-duty, high-impact industrial shredding or crushing environments where mechanical shock loads exceed the motor's rated torque by more than 120%, as the rotary encoder is susceptible to damage from excessive vibration.   Comparative Analysis: For applications requiring higher torque output or longer shaft extensions, the ABB ESM13E-200 series serves as a more robust alternative. While the ESM13E-132-152-T1B0A00 is optimized for standard 2 hp requirements, the ESM13E-200-250 series provides a 3 hp output for more demanding mechanical loads.

FAQ

1.What is the standard lead time for the ABB ESM13E-132-152-T1B0A00,and is it currently in stock?

In-stock units ship within 2 to 3 business days following payment verification.Bulk procurement orders exceeding 5 units carry a standard lead time of 2 to 3 weeks depending on factory production allocations.Real-time warehouse availability can be confirmed with our sales team prior to placing a formal purchase order.

2.Does the ESM13E-132-152-T1B0A00 include a warranty,and what does it cover?

Every unit comes with a standard 12-month limited warranty covering manufacturing defects,electrical insulation failures,and encoder signal anomalies under rated operating conditions starting from the delivery date.Every motor undergoes rigorous diagnostic testing prior to export packaging to ensure full operational compliance.

3.How much does this 2 HP servo motor cost?

The market price for this motor typically ranges from$2,400 to$4,400 USD based on order volume,factory allocations,and international freight terms.For an official binding quotation with customized volume discounts,please contact Beijing Zhongping Technology directly with your project requirements.

4.What technical support is available for installation and drive integration?

We provide comprehensive technical documentation with every order,including complete pinout diagrams,motor parameters,and drive startup configuration guides.Our engineering team also offers remote technical assistance to verify encoder feedback handshakes and resolve parameter mapping issues during commissioning.

5.How should the 24V DC holding brake sequence be timed relative to drive torque enable?

The servo drive must apply motor torque prior to releasing the 24V DC electromechanical holding brake(typically with a 50 ms to 100 ms delay interlock).Releasing the brake before torque is established causes gravity-induced load slipping on vertical axes,while delaying brake release during active motion causes premature friction lining wear and drive over-current trips.

6.What type of feedback device is integrated into the ESM13E-132-152-T1B0A00?

This unit is equipped with a high-resolution optical rotary encoder designed for precise speed control and positioning in automated machinery.The encoder outputs differential noise-resistant signals directly to the drive feedback card for high-accuracy positioning.

7.What are the maximum allowable shaft radial and axial loads for belt-driven applications?

The 130 mm frame shaft is engineered to handle rated radial loads up to 450 N and axial loads up to 150 N at the shaft extension midpoint.When connecting timing belts or pulleys,installers must verify belt tension with a gauge to prevent excessive front bearing wear and premature seal failure.

8.How does the 2 HP power rating translate to electrical capacity for servo drive sizing?

The 2 HP mechanical rating corresponds to approximately 1.5 kW continuous electrical output,requiring a matching 1.5 kW/220V rated servo drive stage.System designers must ensure the drive's continuous current rating meets or exceeds the motor's rated nameplate current.

9.Are mating power and encoder connectors included in the box with the motor?

The motor ships with built-in IP65 circular connector sockets,while mating plug cable harnesses are ordered separately based on required machine lengths.Pre-assembled extension cable sets can be bundled with the motor order upon request.

10.How can buyers verify that the received 2 HP motor is authentic and unused?

Authentic units feature laser-engraved nameplates,traceable batch codes,and untampered factory seals on the original packaging box.Physical inspection prior to installation should reveal spotless shaft keyways and pristine mounting flange surfaces with no bolt mounting marks.
