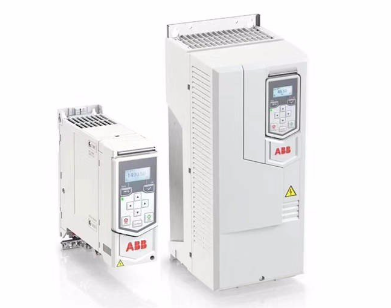

ABB frequency converter parameter setting method
Published:2023-01-30 16:21:33
1. GROUP99 Parameters: Apply macro to select standard macro, motor rating according to motor brand data, modify the set value.
2. GROUP10 Parameter: Check whether parameter 1001 is 1. If no, set it to 1.
3. GROUP11 Parameter: Check whether parameter 1102 is 0. If no, set it to 0. Check whether parameter 1103 is 2. If no, set it to 2.
4. GROUP13 Parameters: Check whether parameter 1304 held 20℅, not changed to 20℅. Check whether the value of parameter 1305 is 100℅, not changed to 100℅.
5. GROUP15 Parameter: Check whether parameter 1510 is 4mA. If not, set it to 4mA. Check whether parameter 1511 is set to 20mA. Check that the value of parameter 1507 is 0103, that is, the output frequency.
6. GROUP20 Parameter: Check whether parameter 2007 is set to 20HZ. If no, set it to 20HZ. Check whether the value of parameter 2008 is 50HZ. If no, set it to 50HZ.
7. GROUP14 Parameter: Check whether parameter 1402 is 2. If no, set it to 2. Check whether 1403 is 4, and change it to 4.

-
