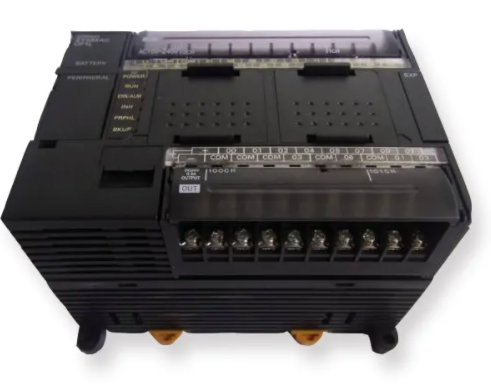

Omron plc equipment disassembly sequence and method
Published:2023-02-21 15:55:40
(1) Stop the machine for maintenance, and more than two people must monitor the operation;
(2) Switch the mode selection switch on the front panel of CPU from "Run" to "Stop" position;
(3) Turn off the main power supply of PLC power supply, and then turn off other power supply to the model ban;
(4) The power cord connected to the power rack can be removed after marking the wire number and connection position, and then remove the screws connected to the power rack and the cabinet, the power rack can be removed;
(5) The CPU motherboard and I/0 board can be removed by rotating the screws below the template;
(6) Install in reverse order.
-
