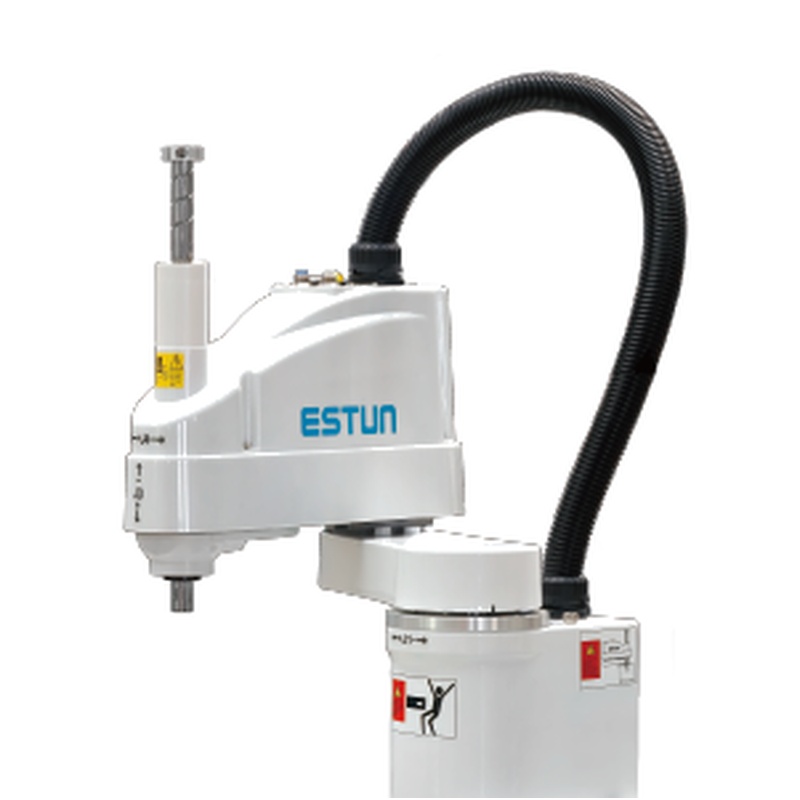

ESTUN ER3-400-SR SCARA Robot for 4 Axis Industrial Robot Applications

　　The ESTUN ER3-400-SR SCARA robot is a compact and high-speed 4 axis industrial robot engineered for precision assembly,material handling,and automated production processes where speed,repeatability,and space efficiency are critical.Designed with a 400 mm working envelope and a 3 kg rated payload,this SCARA robot targets light-duty automation tasks commonly found in electronics manufacturing,consumer goods production,and laboratory automation environments.

　　As a specialized SCARA robot,the ER3-400-SR emphasizes rapid horizontal motion,stable vertical positioning,and consistent cycle performance.Its 4-axis configuration enables efficient pick-and-place operations while maintaining tight positional accuracy,making it suitable for production lines that demand both throughput and reliability.The IP20 protection rating reflects its intended use in controlled indoor industrial settings,where cleanliness and precision take priority over harsh environmental resistance.

　　Understanding SCARA Robots and Their Role in Industrial Automation

　　What Is a SCARA Robot?

　　A SCARA robot,short for Selective Compliance Assembly Robot Arm,is a type of industrial robot optimized for fast,repetitive movements in the horizontal plane with controlled vertical motion.Unlike articulated robots that prioritize multi-directional flexibility,SCARA robots focus on speed,stiffness,and repeatability in planar operations.This design philosophy makes them especially effective for assembly,insertion,packaging,and material transfer tasks.

　　The defining feature of a 4 axis industrial robot in the SCARA category is its balance between mechanical simplicity and functional efficiency.With fewer joints than six-axis robots,SCARA systems typically deliver faster cycle times,lower maintenance requirements,and easier programming.These characteristics explain why SCARA robots remain a core automation choice in high-volume manufacturing sectors.

　　Typical Applications of 4 Axis Industrial Robots

　　4 axis industrial robots are widely used in applications where rotational orientation and vertical movement are required but full spatial articulation is unnecessary.Common use cases include PCB assembly,screw fastening,small-part sorting,loading and unloading of machines,and precision dispensing processes.Their predictable motion paths also make them easier to integrate with vision systems and conveyor tracking solutions.

　　Key Design Characteristics of the ESTUN ER3-400-SR

　　Compact Mechanical Structure and Workspace Efficiency

　　The ER3-400-SR is designed around a 400 mm working radius,allowing it to operate efficiently in confined production cells.This compact footprint is especially valuable in modern factories where space optimization directly affects production density and cost efficiency.The mechanical structure prioritizes rigidity in horizontal motion while maintaining smooth vertical travel for accurate placement.

　　Payload and Motion Performance

　　With a rated payload of 3 kg,the ER3-400-SR is optimized for lightweight tooling,grippers,and end-effectors.This payload capacity aligns well with tasks such as electronic component handling,small package transfer,and precision assembly.The reduced moving mass enables higher acceleration and deceleration,contributing to short cycle times and stable operation during continuous production.

　　Protection Rating and Operating Environment

　　The IP20 protection level indicates suitability for clean,dry,and enclosed industrial environments.While not intended for exposure to dust,liquids,or corrosive atmospheres,this protection rating is common for SCARA robots deployed in electronics,medical device assembly,and laboratory automation,where environmental control is already part of the production infrastructure.

　　Performance Advantages in Real-World Applications

　　Speed,Repeatability,and Process Stability

　　One of the primary advantages of the ESTUN ER3-400-SR lies in its ability to maintain consistent performance over long production cycles.SCARA robots inherently excel at high-speed pick-and-place operations,and the ER3-400-SR leverages this strength to deliver stable motion profiles with minimal vibration.This stability directly contributes to improved product quality and reduced defect rates.

　　Integration with Automated Production Lines

　　The ER3-400-SR is well suited for integration into automated cells that include conveyors,feeders,and inspection systems.Its predictable kinematics simplify synchronization with peripheral equipment,reducing commissioning time and minimizing integration risk.For manufacturers scaling automation incrementally,such compatibility can significantly lower total system cost.

　　Typical Application Scenarios for the ER3-400-SR

　　In electronics manufacturing,the ER3-400-SR SCARA robot is commonly used for component placement,connector insertion,and light assembly operations.In consumer goods production,it supports packaging,labeling,and sorting tasks where speed and consistency are more critical than payload capacity.Laboratory automation and testing environments also benefit from its precise vertical control and compact workspace requirements.

　　For businesses seeking to automate repetitive tasks without the complexity of multi-axis articulated robots,this 4 axis industrial robot offers a practical balance between performance and investment cost.

　　Operational Efficiency and Cost Considerations

　　From a cost-performance perspective,SCARA robots like the ER3-400-SR often provide a faster return on investment compared to more complex robot types.Lower mechanical complexity typically results in reduced maintenance demands and shorter downtime.Additionally,programming and operator training requirements are generally lower,allowing faster deployment and easier long-term operation.

　　Customer-Focused Questions and In-Depth Answers

　　How does a SCARA robot differ from a six-axis industrial robot in practical use?

　　A SCARA robot differs fundamentally from a six-axis industrial robot in both mechanical design and application focus.While six-axis robots are built for maximum flexibility and complex spatial movements,SCARA robots prioritize speed and repeatability within a defined horizontal workspace.This makes SCARA systems more efficient for tasks that involve repetitive motion patterns,such as assembly or pick-and-place operations,where excessive degrees of freedom are unnecessary.

　　From a production efficiency standpoint,a SCARA robot often delivers faster cycle times due to its lighter structure and simplified kinematics.This speed advantage can translate directly into higher throughput,especially in high-volume manufacturing environments.Additionally,the reduced number of axes generally means lower inertia,which improves positional stability during rapid movements.

　　Cost and complexity also differ significantly.Six-axis robots typically require more advanced programming,larger safety envelopes,and higher upfront investment.In contrast,SCARA robots like the ESTUN ER3-400-SR are easier to integrate,maintain,and operate,making them a preferred choice for manufacturers seeking targeted automation without excessive system complexity.

　　What types of industries benefit most from a 4 axis industrial robot?

　　Industries that prioritize speed,consistency,and precision over heavy payload handling tend to benefit the most from 4 axis industrial robots.Electronics manufacturing is a prime example,where small components must be placed accurately at high speed.SCARA robots are well suited for such environments due to their planar motion efficiency and excellent repeatability.

　　The consumer goods sector also sees strong advantages,particularly in packaging,sorting,and light assembly operations.These tasks often involve standardized movements and short cycle times,aligning perfectly with the capabilities of a 4 axis industrial robot.In these scenarios,the robot’s compact footprint allows multiple automation cells to be deployed within limited factory space.

　　Laboratory automation and medical device assembly represent another important application area.In these fields,precision,cleanliness,and process consistency are critical.SCARA robots provide controlled motion and predictable behavior,which helps maintain strict quality standards while supporting scalable production workflows.

　　Why is payload capacity an important consideration when selecting a SCARA robot?

　　Payload capacity directly influences a SCARA robot’s performance,efficiency,and long-term reliability.Selecting a robot with an appropriate payload rating ensures that motors,joints,and mechanical components operate within their designed limits.For the ESTUN ER3-400-SR,a 3 kg payload is optimized for lightweight tooling and components,enabling fast acceleration without excessive mechanical stress.

　　Overloading a robot,even slightly,can lead to reduced positional accuracy,increased wear,and shorter service life.Conversely,choosing a robot with excessive payload capacity may increase cost and reduce dynamic performance due to higher moving mass.Therefore,matching payload capacity closely to application requirements is a key factor in achieving optimal performance.

　　From an energy efficiency perspective,correctly sized payload capacity also contributes to lower power consumption.Lighter robots performing light-duty tasks generally consume less energy per cycle,which can significantly reduce operating costs over long production runs.

　　How does workspace size affect automation cell design?

　　Workspace size determines how a robot interacts with surrounding equipment and how efficiently an automation cell can be designed.A 400 mm working range,as seen in the ER3-400-SR,supports compact cell layouts that minimize travel distance and cycle time.Shorter motion paths often result in faster operations and improved repeatability.

　　In space-constrained factories,compact workspaces allow higher automation density.Multiple SCARA robots can be installed in parallel,each handling a specific task,without requiring large safety zones or extensive structural modifications.This modular approach makes it easier to scale production incrementally.

　　Additionally,smaller workspaces simplify safety management and enclosure design.Reduced reach lowers the risk area,which can help optimize safety guarding and improve operator accessibility during maintenance or setup procedures.

　　When is a SCARA robot a more cost-effective choice than other robot types?

　　A SCARA robot becomes a more cost-effective choice when application requirements align with its strengths.For tasks involving repetitive planar motion,short cycle times,and moderate payloads,SCARA robots often outperform articulated alternatives in both speed and efficiency.This performance advantage can significantly reduce cost per unit produced.

　　Initial investment is typically lower due to simpler mechanical design and reduced control complexity.Integration costs are also minimized,as SCARA robots require less extensive programming and smaller installation footprints.Over time,these factors contribute to lower total cost of ownership.

　　Maintenance and operational expenses further enhance cost-effectiveness.Fewer axes and simpler motion profiles generally mean fewer wear points and easier troubleshooting.For manufacturers focused on high-volume,standardized processes,a SCARA robot like the ESTUN ER3-400-SR often delivers the best balance between performance,reliability,and long-term value.
