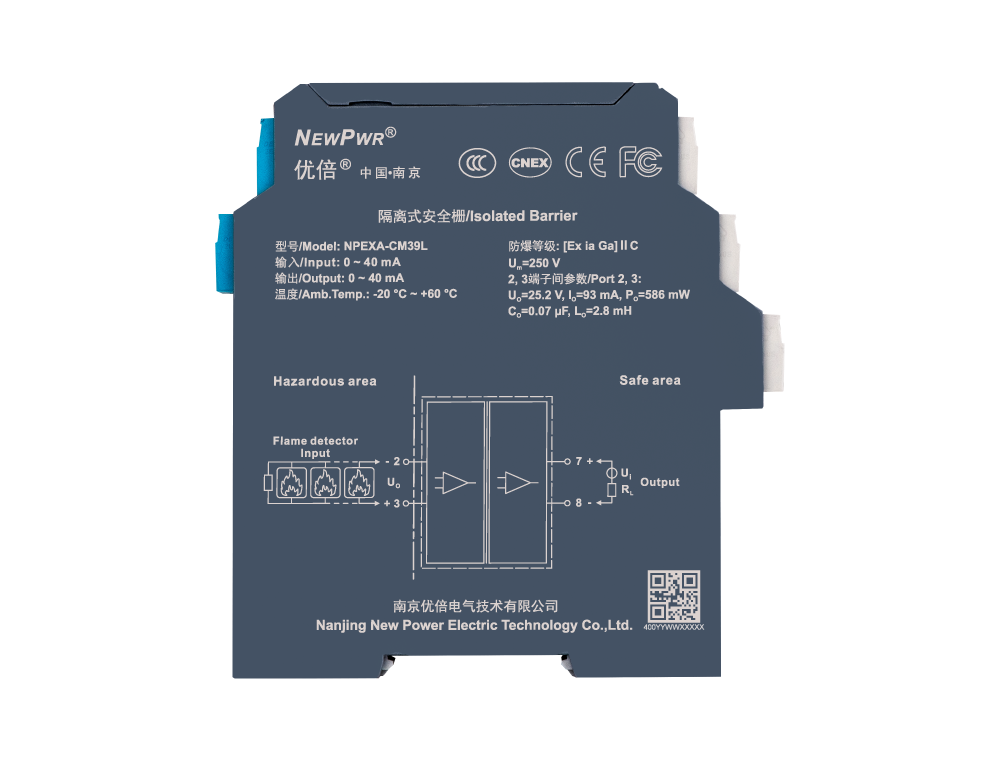

The New Power NPEXA-CM39L is an intrinsically safe isolation barrier designed specifically for the secure signal transmission of flame detectors in hazardous industrial environments. As a high-performance galvanic isolation barrier, this unit ensures reliable operation by preventing high-energy electrical faults from reaching explosive atmospheres, thereby maintaining system integrity in Zone 0, Zone 1, and Zone 2 areas. Engineering teams frequently deploy this model to isolate control signals from field instruments, effectively mitigating ground loop interference and surge-related failures. The NPEXA-CM39L supports a standard 24V DC input and provides precise 4-20mA output conversion, making it a critical component for maintaining safety compliance in chemical processing, oil and gas, and petrochemical facilities.
Product Type & Category Positioning
The NPEXA-CM39L functions as a specialized interface module within the broader category of industrial signal conditioning and explosion-proof protection equipment. It serves as a static safety barrier, specifically engineered to decouple control circuits from field-mounted flame detection hardware. Unlike zener barriers that rely on fuses and resistors, this galvanic isolation barrier eliminates the need for a high-integrity intrinsic safety ground connection, simplifying system installation.
Building on this classification, the unit is categorized under DIN-rail mountable process control peripherals. It acts as an intermediary layer between non-hazardous area PLC input/output cards and hazardous area field instrumentation. Industrial engineers utilize this product to fulfill IEC 60079-11 standards for intrinsic safety while simultaneously performing signal conversion or amplification tasks.
Technical Specifications
Input Signal: 4-20mA DC
Output Signal: 4-20mA DC
Power Supply: 20-30V DC
Isolation Voltage: 2500V AC
Response Time: ≤10ms
Accuracy: ±0.1% Full Scale
Temperature Coefficient: ≤50ppm/°C
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +80°C
Explosion-proof Marking: [Ex ia Ga] IIC
Mounting Type: 35mm DIN Rail
Housing Material: Flame-retardant ABS/PC
Weight: 150g
Technical Highlights
The NPEXA-CM39L utilizes advanced magnetic coupling technology to achieve galvanic isolation without the common signal degradation found in traditional optical isolators. This design choice ensures that the signal integrity remains intact even when subjected to significant electromagnetic interference common in industrial motor control rooms.
Moreover, the internal circuitry incorporates high-speed transient voltage suppression to protect sensitive PLC analog input modules. By isolating the field loop entirely, the device prevents potential differences between grounding points from causing measurement drift or equipment damage. The compact design allows for high-density mounting on standard DIN rails, optimizing valuable cabinet space.
Application Scenarios
Petrochemical Flame Monitoring: Facilitates secure signal transmission for ultraviolet or infrared flame detectors, ensuring uninterrupted monitoring in areas with high concentrations of flammable gases. Offshore Oil Rig Automation: Enhances the reliability of emergency shutdown (ESD) systems by providing robust signal isolation that withstands harsh, high-humidity environments and salt-laden air. Chemical Reactor Safety Control: Maintains precise analog signal accuracy for critical temperature and flame intensity loops, reducing false triggers by filtering out electrical noise from high-voltage actuators.
Selection Recommendations
Selecting the correct barrier requires an assessment of both signal compatibility and power requirements to ensure optimal loop performance. The NPEXA-CM39L is recommended for standard 4-20mA current loops where precision and electrical safety are paramount, particularly when dealing with instruments that lack independent power supplies.
Conversely, this model is not suitable for applications involving high-frequency pulse communication or proprietary digital bus protocols like Foundation Fieldbus. In such high-speed digital scenarios, the 10ms response time will introduce unacceptable latency, potentially causing synchronization errors. For users requiring signal transmission for longer distances or heavier signal loads, we recommend the NPEXA-CM39H model, which offers extended drive capability and enhanced electromagnetic shielding compared to the standard CM39L series.
FAQ
1. What is the typical lead time for the NPEXA-CM39L, and do you have units currently in stock?
We maintain a ready-to-ship inventory of this model to accommodate urgent maintenance requirements. For standard orders under 50 units, we typically dispatch items within 3 working days after payment clearance. If your requirement exceeds current warehouse levels, our production team provides a confirmed lead time within 24 hours of inquiry. We prioritize expedited processing for emergency breakdown support. You can contact us for pricing and current stock levels to get an exact arrival estimate for your location.
2. Does the NPEXA-CM39L require a specific intrinsic safety ground connection?
This unit does not require a dedicated high-integrity intrinsic safety ground because it employs galvanic isolation. Unlike traditional zener barriers that shunt excess energy to the ground, this device isolates the field circuit internally. This design feature simplifies installation and reduces the risk of ground loop interference in complex control cabinets. You only need to provide standard functional grounding for the DIN rail mounting system. Our technical manual provides detailed wiring diagrams to ensure you meet all installation safety requirements efficiently.
3. How much does it cost, and what is the current price range for this model?
The market price for the NPEXA-CM39L ranges from $180 to $330 USD per unit depending on order volume and project requirements. These figures represent the lower and upper bounds of standard market pricing based on current material costs. Prices fluctuate due to exchange rates, tariffs, and factory adjustments. For accurate quotation and bulk discount options, contact Beijing Zhongping Technology directly. We provide formal quotations that remain valid for 30 days to assist your procurement planning.
4. What is the return policy if the unit is found to be defective upon arrival?
We offer a comprehensive 12-month warranty on all isolation barriers, including the NPEXA-CM39L. If you encounter a defect, please submit the serial number and a brief description of the technical issue to our support team. We will guide you through a step-by-step diagnostic process to confirm the hardware failure. If a replacement is necessary, we dispatch a new unit immediately upon verification. Beijing Zhongping Technology ensures that all replacements are tested against original specifications before shipment to guarantee immediate functionality upon installation.
5. Can the NPEXA-CM39L be used in Zone 0 explosive atmospheres?
This device is rated for connection to instrumentation located in Zone 0, Zone 1, and Zone 2 environments. The output side is classified as [Ex ia Ga] IIC, meaning it limits electrical energy to levels that prevent ignition under normal and fault conditions. Ensure your specific flame detector is also certified for use in the corresponding hazardous area classification. Always verify the overall loop parameters to confirm that the barrier, cable, and field device comply with the total system safety certification.
6. What are the dimensions and mounting requirements for this unit?
The NPEXA-CM39L is designed for a standard 35mm DIN rail mounting configuration, which is universal in industrial control panels. The unit measures approximately 110mm by 100mm by 12mm, allowing for extremely dense packing in confined spaces. We recommend leaving at least 10mm of clearance on both sides to facilitate heat dissipation and cable management. Our installation guide provides specific recommendations on wiring terminal sizing to ensure secure connections during high-vibration operation.
7. What payment terms do you accept for international orders?
We accept payments via wire transfer (T/T), which is the standard method for our international transactions. For long-term partners, we may discuss alternative credit terms based on order history and project scale. Payments must be processed in full before we initiate the dispatch of your goods. Our finance department provides clear invoicing details, including banking information and swift codes, to ensure your payment process is smooth and traceable.
8. Is technical support available for installation and integration?
Our engineering support team is available to assist with integration inquiries via email or scheduled video calls. When you contact us, provide the specific signal type and voltage levels of your flame detection system. We will then verify if the NPEXA-CM39L is the correct fit or suggest necessary adjustments to your loop configuration. We also provide digital copies of wiring schematics and application notes to help your maintenance staff perform the setup correctly without unnecessary delays.
9. Do you provide certificates of conformity with the shipment?
We include a factory test report and a certificate of conformity with every order of the NPEXA-CM39L. These documents confirm that the specific unit has been calibrated and tested for insulation resistance and signal accuracy at our facility. If your project requires specific third-party testing or additional documentation for regulatory compliance, please specify these needs during the purchase process. We strive to provide all necessary paperwork to streamline your customs clearance and on-site audit procedures.
10. Can I order spare parts or request a custom configuration?
We maintain a steady supply of common spare parts and accessories, such as terminal connectors and DIN rail clips, for the NPEXA series. If your project demands a unique configuration or a specialized modification, we can evaluate the feasibility of such requests. Our technical department reviews these specifications to ensure that any custom adjustments do not compromise the intrinsic safety certification. For all such custom inquiries, please reach out to our team to discuss the required technical specifications and feasibility.
