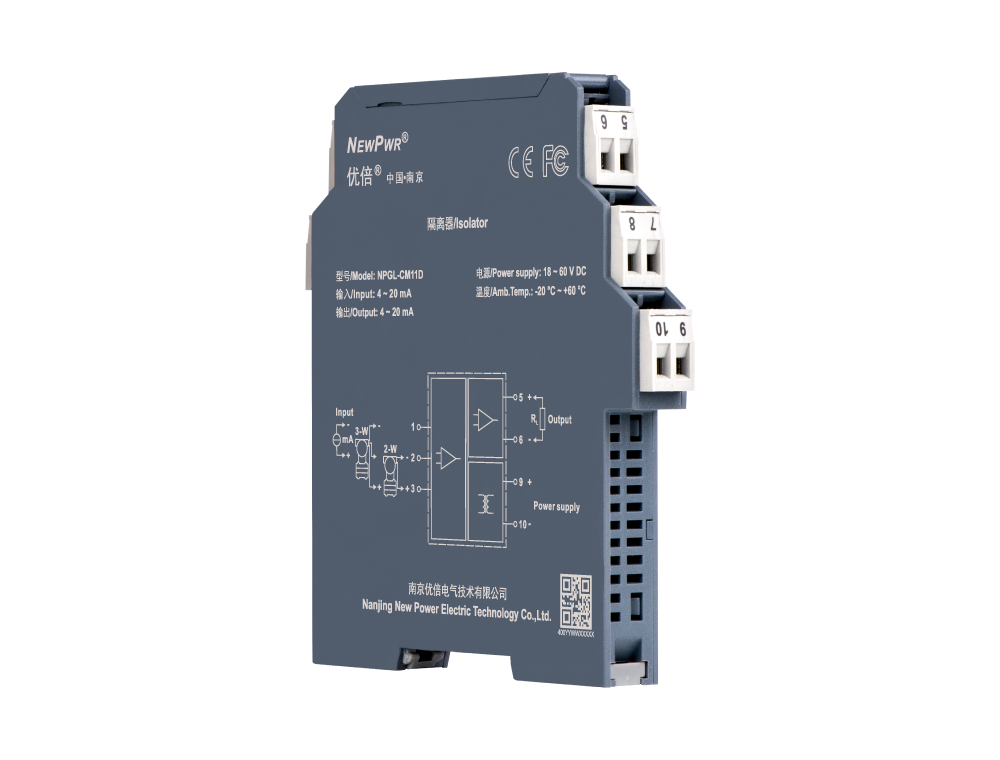

The New Power NPGL-CM11D is a high-precision galvanic signal isolator designed for industrial automation control systems, featuring integrated HART communication compatibility. As a dedicated 4-20mA signal isolator, this unit ensures reliable transmission and galvanic protection between field instrumentation and control room hardware. It is critical for preventing ground loops and electrical noise interference in process control loops found in petrochemical, water treatment, and power generation facilities. The NPGL-CM11D provides a 1:1 signal transfer accuracy while maintaining high dielectric strength to safeguard sensitive PLC and DCS input modules. Engineers frequently specify this model when replacing legacy isolators that lack modern HART transparency or when upgrading isolation standards in existing plant architectures.
Product Type & Category Positioning
The NPGL-CM11D belongs to the category of DIN-rail mounted analog signal conditioning modules, specifically engineered for loop-powered or active 4-20mA current loop isolation. Its core function involves galvanic isolation, where the input and output stages are electrically decoupled to eliminate ground potential differences that cause signal drift or hardware damage. Within the signal conditioning landscape, this device acts as a transparent bridge that supports bidirectional digital communication, specifically the HART protocol.
Building on this classification, the NPGL-CM11D is categorized as a high-density, slim-profile signal isolator, often utilized in high-density cabinet environments. Its design priority is signal integrity, making it a standard choice for systems where field-mounted transmitters interact with centralized controller inputs. The device avoids the signal attenuation common in passive isolators by incorporating active power regulation circuitry to ensure 0.1% accuracy under full load.
Technical Specifications
Input Signal: 4-20mA DC
Output Signal: 4-20mA DC
Isolation Type: Three-port Galvanic Isolation
Accuracy: 0.1% F.S.
HART Compatibility: Bidirectional Transparent Transmission
Response Time: ≤ 10ms
Power Supply: 20-30V DC
Dielectric Strength: 2500V AC (Input/Output/Power)
Operating Temperature: -20°C to +60°C
Mounting: 35mm DIN Rail
Housing Material: Flame-retardant ABS
Protection Rating: IP20
Dimensions: 105mm x 110mm x 12.5mm
Weight: 150g
Technical Highlights
The NPGL-CM11D utilizes an advanced active isolation circuit that maintains signal precision even when subjected to extreme industrial electromagnetic interference. This design effectively mitigates the risk of signal clipping or clipping-induced data errors that frequently plague lower-grade instrumentation.
Moreover, the unit ensures seamless HART communication by providing a wide-band frequency response path. This allows maintenance engineers to perform remote calibration and diagnostic checks on field sensors without disconnecting the isolator from the loop.
Additionally, the modular slim-profile housing optimizes cabinet space utilization by allowing up to 80 units to be installed on a standard one-meter DIN rail. The thermal management system ensures stable operation across the full specified temperature range without requiring forced air ventilation or heat sinks.
Application Scenarios
Petrochemical Flow Metering: This isolator prevents ground loops in long-distance cabling between field flow transmitters and control room DCS systems, maintaining measurement precision within 0.1% despite high-voltage motor noise nearby. Water Treatment Automation: The device provides reliable galvanic protection for 4-20mA current loops in high-humidity environments, extending the service life of sensitive PLC analog input cards by preventing surge propagation. Power Plant Boiler Control: The unit enables real-time HART diagnostic access to boiler pressure sensors, allowing for proactive maintenance and reduced downtime through early detection of instrument drift.
Selection Recommendations
Suitable for: High-density control cabinets where space is limited and multiple HART-enabled field devices are connected to a central DCS (standard DIN rail spacing ≤ 12.5mm per unit). Suitable for: Environments with high EMI/RFI levels where ground potential differences exceed 5V, as the 2500V isolation barrier ensures system stability and prevents erratic signal behavior. Not suitable for: Applications requiring high-voltage isolation above 3000V AC or hazardous area installations that demand intrinsically safe (IS) certified barriers, as the NPGL-CM11D is designed for standard industrial control zones. Not suitable for: High-vibration environments such as reciprocating compressor skids unless installed within an anti-vibration-rated cabinet housing.
For users needing higher isolation ratings or intrinsic safety features, we recommend the NPGL-IS11D series as a performance-indexed alternative. When selecting between models, always compare the input impedance; the NPGL-CM11D is optimized for standard 250-ohm loop burdens, whereas the related NPGL-CM22D model provides dual-channel isolation for higher density requirements.
FAQ
1. What is the standard lead time for the NPGL-CM11D, and do you have units in stock?
We maintain a consistent inventory of 500+ units of the NPGL-CM11D to support immediate project requirements. Orders for standard quantities are processed and dispatched within 3 working days after payment clearance. If your request exceeds 100 units, our logistics team coordinates a production schedule to fulfill the shipment within 14 working days. We provide tracking information immediately upon departure from our facility. Contact our support team for urgent delivery options via air freight.
2. Does this signal isolator require external power to function?
The NPGL-CM11D requires an external 20-30V DC power supply for active operation. The active isolation circuitry allows it to boost the signal strength, ensuring that the output signal remains robust even when connected to long cable runs. This external power input also facilitates the reliable transmission of HART diagnostic data across the loop. We recommend using a regulated power supply to maintain the specified 0.1% accuracy under varying load conditions.
3. How much does it cost, and what is the current price range for this model?
The market price for the NPGL-CM11D typically ranges from $85 to $150 USD per unit depending on order volume. Prices fluctuate due to exchange rates, global logistics costs, and factory material adjustments. For an accurate quotation tailored to your project specifications, please contact Beijing Zhongping Technology directly. Bulk purchase discounts are available for orders exceeding 50 units. We provide transparent pricing structures for all standard and expedited shipping configurations.
4. Is the NPGL-CM11D compatible with all HART-compliant field instruments?
The unit supports full bidirectional transparent transmission for HART 5, 6, and 7 protocols. It acts as a passive pass-through for the digital signal superimposed on the 4-20mA current carrier, ensuring no loss of diagnostic functionality. You can connect it to any standard HART-enabled pressure, temperature, or flow transmitter without additional configuration. We suggest verifying that your control system software supports the specific HART device descriptions to ensure seamless integration.
5. What is your return policy if the device is found to be defective upon arrival?
We provide a comprehensive 12-month warranty against manufacturing defects for all NPGL-CM11D units. If you encounter a performance issue, our technical department conducts a remote diagnostic check to verify the fault. Should the unit fail to meet specifications, we initiate a replacement process immediately upon receipt of the defective item. For all returns, please submit the serial number and a brief description of the operating environment to our support portal.
6. Can I use the NPGL-CM11D in hazardous, explosive environments?
The NPGL-CM11D is designed for standard industrial control environments and does not carry an intrinsic safety (IS) certification for explosive atmospheres. If your application requires ATEX or IECEx protection, you must utilize an intrinsically safe barrier specifically rated for hazardous zones. Using this standard isolator in a Class I, Div 1 location violates safety protocols and voids the product warranty. Beijing Zhongping Technology offers a separate IS-certified series for such specialized hazardous area requirements.
7. How do I perform the initial setup and wiring for this isolator?
Wiring the NPGL-CM11D is straightforward, following the terminal mapping diagram printed on the side of the housing. Step 1: Secure the unit to a standard 35mm DIN rail. Step 2: Connect the field transmitter input to terminals 1 and 2. Step 3: Connect the control system output to terminals 3 and 4, ensuring correct polarity. Step 4: Apply 24V DC power to the designated power terminals and verify the status LED. Consult the digital manual provided with your shipment for detailed wire gauge recommendations.
8. Does this model support dual-channel input, or do I need another unit?
The NPGL-CM11D is a single-channel signal isolator designed for high-precision, isolated transfer of one 4-20mA signal. If your control loop architecture requires dual-channel isolation in a single housing, we recommend switching to the NPGL-CM22D series. This alternative model provides two independent channels within the same physical footprint, effectively doubling your channel density. Contact us for pricing and availability of the dual-channel variants to suit your space-constrained cabinet designs.
9. What are the shipping and payment terms for international orders?
We accept payments via international wire transfer (T/T) and offer flexible terms for long-term partners. For international shipments, we utilize major courier services such as DHL, FedEx, or UPS to ensure reliable and trackable delivery. All shipping costs are calculated based on the weight and destination; for an additional fee, we offer door-to-door insurance. Our logistics department provides all necessary customs documentation, including Certificates of Origin and commercial invoices, to facilitate smooth entry into your country.
10. Do you provide technical support or training for configuring these isolators?
Our engineering team offers extensive technical support via email and video conference to assist with integration. We provide detailed application notes and troubleshooting guides for common loop configurations, ensuring your team can install the devices efficiently. If your project involves complex loop dynamics, we offer remote configuration advice to optimize the signal-to-noise ratio. For on-site commissioning services or extensive technical training programs, please request a custom service proposal from our support desk.
