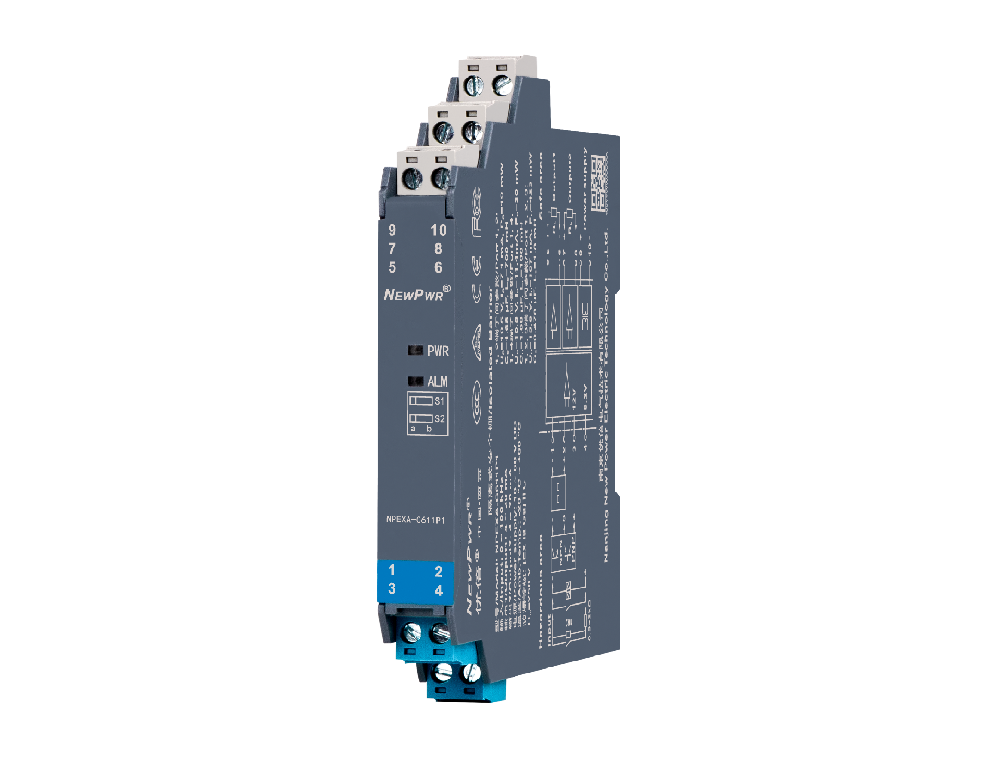

The New Power NPEXA-C611P1 is a high-precision isolated safety barrier and intrinsically safe isolation barrier engineered for signal conditioning in hazardous industrial environments. This frequency signal converter provides galvanic isolation between field-side sensors and control systems, ensuring operational integrity in chemical processing, petroleum, and natural gas facilities. It operates by converting frequency input signals into standardized analog outputs while maintaining explosion-proof standards for electrical equipment. Consistent maintenance of this unit is required to prevent loop failure or signal drift in sensitive monitoring systems. This device supports reliable data transmission in zones where flammable gases or dust concentrations demand strict adherence to safety protocols for instrumentation.
Product Type & Category Positioning
The NPEXA-C611P1 functions as a specialized interface module designed to bridge the gap between hazardous-area sensors and non-hazardous-area control instrumentation. It serves as a protective intermediary that prevents high-energy faults from propagating into potentially explosive atmospheres. In the broader scope of industrial automation, this device is categorized as a signal conditioner or safety barrier, specifically tailored for frequency-to-current or frequency-to-voltage conversion. Building on this classification, the unit is distinguished by its ability to process pulse inputs from flow meters, turbine sensors, or proximity switches without requiring an external explosion-proof housing for the entire control panel. The design focuses on maintaining galvanic isolation, which protects critical control systems from ground loops and voltage spikes originating in the field.
Technical Specifications
Input Signal: 0 Hz to 20 kHz pulse / frequency.
Output Signal: 4 mA to 20 mA DC or 0 V to 10 V DC.
Galvanic Isolation: 2500 V AC between input, output, and power supply.
Power Supply Voltage: 20 V DC to 35 V DC.
Explosion Protection Marking: Ex ia IIC T4 Ga.
Accuracy: 0.1% of full scale.
Operating Temperature Range: -20 °C to +60 °C.
Response Time: Less than 50 ms.
Housing Material: Flame-retardant polyamide (PA66).
Mounting Type: 35 mm DIN rail.
Dimensions: 114 mm x 99 mm x 12.5 mm.
Technical Highlights
The design of the NPEXA-C611P1 emphasizes high-density circuit integration to minimize cabinet space requirements. By reducing the physical footprint of the safety barrier to a 12.5 mm width, users can maximize the number of loops per rack without compromising thermal dissipation.
Additionally, the internal circuitry incorporates advanced surge suppression and filtering components to ensure signal stability in high-EMI industrial environments. This architectural choice minimizes the risk of false triggering or signal degradation caused by nearby high-voltage drives or power cabling.
Moreover, the modularity of the device allows for rapid replacement in the field without the need for complex rewiring or reconfiguration. Every unit is factory-calibrated to ISO standards to provide consistent conversion linearity across the entire frequency input range.
Application Scenarios
Flow Measurement Systems: Integrates with turbine flow meters to convert pulse counts into 4 mA to 20 mA signals, achieving signal transmission accuracy within 0.1% over long distances. Rotational Speed Monitoring: Provides reliable speed feedback from hazardous-zone proximity sensors to PLC inputs, ensuring response times under 50 ms for emergency shutdown protocols. Petrochemical Tank Monitoring: Supplies power to field-mounted frequency sensors while maintaining intrinsic safety, effectively eliminating the risk of electrical ignition in Zone 0 and Zone 1 environments. Water and Wastewater Treatment: Maintains signal integrity in outdoor environments with high humidity and temperature fluctuations, ensuring consistent frequency-to-analog conversion for pump control.
Selection Recommendations
Suitable Application: Use the NPEXA-C611P1 for standard frequency input loops where the total power consumption of the connected field device is below 1.2 W. This unit provides the necessary galvanic isolation for environments requiring Ex ia IIC certification, ensuring safety in gaseous hazard zones. Unsuitable Application: Do not use this model for high-power ignition applications where the input requirement exceeds the 24 V barrier threshold or for environments with extreme corrosive vapors that require IP67 or higher ingress protection for the control housing. If the signal input source is a high-voltage AC frequency source rather than a low-voltage pulse, standard safety barriers are insufficient and high-voltage isolation transformers are required. Comparative Reference: For applications requiring higher channel density or dual-channel functionality, consider the NPEXA-C622 series, which offers two independent conversion channels in a similar 12.5 mm wide housing, providing greater flexibility for space-constrained installations compared to the single-channel NPEXA-C611P1.
FAQ
1. What is the lead time, and do you have units in stock?
We maintain a consistent inventory of the NPEXA-C611P1 to ensure immediate dispatch for standard orders. For quantities under 50 units, we ship from our warehouse within 3 working days after payment clearance. Larger bulk orders are processed within 10 to 15 working days depending on current production schedules. We provide tracking information via email once the carrier collects the package. Our logistics team coordinates with reliable international couriers to ensure timely arrival at your facility.
2. Does the NPEXA-C611P1 require special software for configuration?
No software is required for the standard operation of this signal converter. The device is factory-configured based on the specifications provided at the time of order, allowing for a plug-and-play installation. If you need to verify or modify the signal range after installation, you can adjust the integrated dip switches on the side of the housing. We provide a detailed technical manual with every shipment that outlines these manual adjustment procedures step by step.
3. How much does the NPEXA-C611P1 cost?
The pricing for this model typically ranges from $180 to $330 USD per unit, depending on order volume and specific calibration requirements. Prices fluctuate due to exchange rates, tariffs, and factory adjustments. For an accurate, binding quotation, contact Beijing Zhongping Technology directly. Our sales department will generate a proforma invoice that accounts for current shipping rates and any applicable local taxes for your destination.
4. What is the warranty policy for this safety barrier?
We offer a 24-month comprehensive warranty covering all manufacturing defects in the NPEXA-C611P1. This policy excludes damage caused by improper installation, such as voltage surges beyond the rated 35 V DC limit or physical impact. If a unit fails during the warranty period, we initiate an expedited replacement process after a remote technical assessment. You simply need to provide the serial number and a brief description of the error code or signal malfunction observed.
5. Are there specific storage conditions to maintain the intrinsic safety rating?
The device must be stored in a dry environment with a relative humidity below 80% and temperatures between -10 °C and +40 °C. Keeping the unit in its original anti-static packaging prevents the accumulation of conductive dust or moisture on the terminals. Following these storage guidelines ensures that the internal components and the explosion-proof integrity remain intact before commissioning. If the device has been stored for more than 2 years, we recommend a functional test of the galvanic isolation resistance before installation.
6. Can you provide technical support for the integration of this unit?
Our technical engineering team provides full documentation and remote guidance for the integration of the NPEXA-C611P1 into your control system. We assist with wiring diagrams for both the field side and the control side to prevent grounding loops. For complex system architectures, Beijing Zhongping Technology offers virtual consultation sessions to review your loop design and ensure compliance with E-E-A-T standards. You can reach our support department via email or our online contact portal during standard business hours.
7. Does the unit come with international explosion-proof certifications?
The NPEXA-C611P1 is certified as Ex ia IIC T4 Ga, which meets the global requirements for intrinsically safe equipment in Zone 0 hazardous locations. The certification documents are included in the shipment package for your compliance records. If your specific project requires localized certification updates or additional documentation for customs clearance, our regulatory team prepares these certificates upon request. We ensure that every batch matches the technical files submitted to the relevant safety authorities.
8. What are the common symptoms of a failing isolation barrier?
A failure in the isolation barrier typically manifests as a drifting analog output signal or a complete loss of the 4 mA to 20 mA loop current. If you observe the output value fluctuating without a change in input frequency, first check the input terminal voltage using a multimeter. If the voltage is stable but the output remains unresponsive, the internal galvanic isolation circuit may have tripped due to a severe field-side fault. We recommend replacing the unit immediately in such cases to protect downstream PLC modules.
9. Do you provide installation accessories such as DIN rail mounts or connectors?
Each unit is shipped with the necessary pluggable screw terminals for fast installation on standard 35 mm DIN rails. We do not include the DIN rail itself, as this is considered a standard infrastructure component in industrial control cabinets. If you require additional terminal blocks or replacement connectors due to maintenance wear, we supply these spare parts for an additional fee. Contact us for pricing and availability of these peripheral components.
10. What is your return policy if the product is incompatible with our system?
We accept returns for non-customized units within 30 days of delivery, provided the device remains in its original, unopened packaging. A restocking fee applies to all returned items to cover the cost of inspection and recertification of the safety barrier. Before initiating a return, we suggest contacting our technical department to confirm that the incompatibility is not due to a simple configuration oversight. Our team ensures that all returned units are properly decommissioned from your system records.
