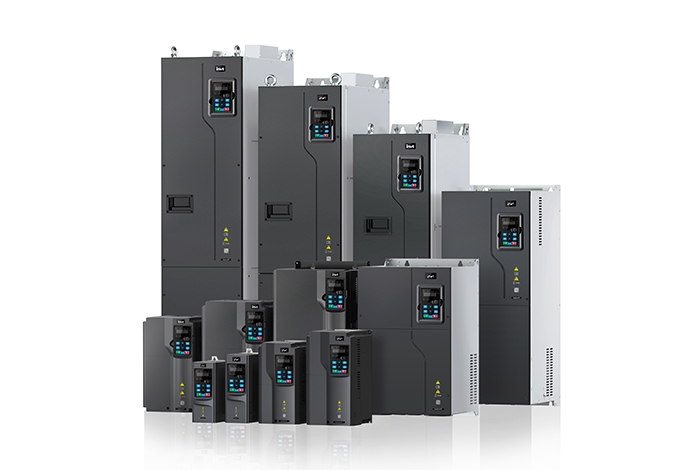

INVT GD270-2R2-4 Three Phase Variable Frequency Drive Unit

　　The INVT Goodrive270(GD270-2R2-4)is a specialized variable frequency drive(VFD)engineered to deliver superior performance and energy efficiency in fan and pump applications.This 2.2 kW,three-phase 3 phase variable frequency drive incorporates features tailored for fluid dynamics,making it an ideal choice for systems in water treatment,HVAC,and various industrial settings.Its compact,book-sized design facilitates easy installation in space-constrained control cabinets,while its advanced control algorithms ensure reliable and economical operation of both asynchronous and permanent magnet synchronous motors.

　　1.Product Overview and Core Technology

　　The GD270 series represents a significant development in the field of drives for fluid handling.The GD270-2R2-4 model is not a general-purpose drive;it is purpose-built for the operational profiles of fans and pumps.This focus translates into embedded application macros and dedicated PID controllers that simplify setup for functions like constant pressure water supply,making it virtually a"plug-and-play"solution for many standard applications.

　　At its core,this variable frequency drive utilizes a sophisticated space voltage vector control method,even without a feedback encoder(Sensorless Vector Control-SVC).This technology provides excellent speed regulation with a precision of±0.2%and a torque response time of under 20 milliseconds.This means the drive can quickly adapt to changing system demands,such as a sudden need for increased water pressure,while maintaining stable operation and protecting the motor from disruptive loads.

　　2.Key Features and Design Advantages

　　The GD270-2R2-4 is packed with features that deliver tangible benefits in real-world applications.

　　Energy Efficiency at the Forefront:A standout feature is the integrated ECO energy-saving algorithm.This function intelligently monitors the load demand and automatically adjusts the motor's operating voltage and frequency to minimize energy consumption during low-load conditions.For facilities with long-running pumps or fans,this can lead to substantial reductions in electricity costs.Furthermore,its capability to drive high-efficiency permanent magnet synchronous motors(PMSMs)can unlock even greater levels of system efficiency.

　　Robustness and Reliability:Designed for the rigors of industrial environments,this 3 phase variable frequency drive boasts a robust construction.It features a wide input voltage range(380-480V±15%),allowing it to handle grid fluctuations effectively.The core printed circuit board is coated with a thickened protective layer that resists corrosion,moisture,and dust,enhancing its longevity in harsh conditions like those found in wastewater treatment plants.An independent air duct design prevents dust from accumulating inside the drive,further improving reliability.

　　Unmatched Flexibility and Integration:The drive offers remarkable configuration flexibility.It comes with two expansion slots(SLOT1 and SLOT2)that can be populated with a variety of optional communication cards,supporting major industrial networks like Profibus-DP,Profinet,CANopen,and Modbus-TCP.This allows for seamless integration into virtually any factory automation system.Additionally,users can opt for models with built-in DC or AC output reactors to meet specific harmonic mitigation requirements without needing external components.

　　3.Technical Performance and Specifications

　　The GD270-2R2-4 is rated for a 2.2 kW output power,with a corresponding output current of 5 Amps.It operates on a standard three-phase AC input voltage ranging from 380 to 480 Volts at a frequency of 50 or 60 Hz.Its output frequency can be varied from 0 Hz up to 400 Hz,accommodating a wide range of motor speeds for precise process control.

　　In terms of motor control,the drive is compatible with both standard asynchronous induction motors and modern permanent magnet synchronous motors.It provides a robust starting torque of 150%at 0.5 Hz for asynchronous motors,ensuring smooth start-ups even under load.The drive is designed for continuous operation in ambient temperatures from-10°C to 50°C,with a derating applied above 40°C to ensure component life.Cooling is achieved via an internal forced-air fan system.

　　Expanded Perspective:The Role of Specialized VFDs in Modern Industry

　　Understanding the broader context of why a dedicated variable frequency drive for fans and pumps is beneficial can help in making a more informed selection.

　　1.Why Choose an Application-Specific VFD?

　　While general-purpose drives are available,a specialized 3 phase variable frequency drive like the GD270-2R2-4 offers distinct advantages.It comes with pre-programmed functions for common tasks in its target market.For example,it includes built-in logic for multi-pump control in a water boosting station or specialized PID tuning for maintaining constant pressure in a closed-loop system.This reduces engineering time,minimizes configuration errors,and accelerates commissioning.It also includes application-specific protection features,such as anti-cavitation and frost protection,which are not always standard in general-purpose drives.

　　2.Key Considerations for System Implementation

　　To ensure optimal performance and longevity,a few critical factors must be considered when integrating this drive.

　　Proper Sizing and Derating:It is crucial to select a drive with a current rating that exceeds the motor's full-load amperage.For pump applications,especially those involving heavy start-up or variable torque loads,consulting the manufacturer's derating curves is essential to avoid overstressing the drive components.

　　The Imperative of Filtration:The electronic components inside a VFD are susceptible to damage from conductive dust and corrosive gases.Ensuring the control cabinet has adequate filtration and maintaining a clean environment around the drive is a simple yet effective way to extend its service life significantly.

　　Comprehensive System Integration:A successful installation involves more than just the drive and motor.It requires correctly sized upstream circuit breakers or fuses for short-circuit protection,properly terminated control wiring for noise immunity,and,in some cases,external harmonic filters to maintain power quality standards as required by the specific installation site.

　　Frequently Asked Questions(FAQs)

　　1.How does the ECO mode in this drive actually save energy?

　　The ECO mode operates as an advanced auto-tuning system that continuously seeks the most efficient operating point.Instead of running the motor at a fixed voltage-to-frequency ratio,it dynamically reduces the motor's magnetic flux(and thus the supplied voltage)when full torque is not required.This minimizes the core losses in the motor,which are a significant source of energy waste,especially in partially loaded fans and pumps.The algorithm ensures this is done without compromising the system's response to sudden load changes.

　　2.Can this 2.2kW drive control a permanent magnet synchronous motor(PMSM)for a pump?

　　Yes,absolutely.The GD270-2R2-4 is explicitly designed to control both standard asynchronous(induction)motors and high-efficiency permanent magnet synchronous motors.You will need to select the motor type in the drive's parameters and,ideally,perform an auto-tuning routine to ensure the vector control is optimally matched to the PMSM's specific characteristics,thereby achieving the highest possible efficiency and control performance.

　　3.What is the significance of the built-in PID controller for a pump application?

　　The built-in PID(Proportional,Integral,Derivative)controller is the brain for maintaining a stable process variable,such as water pressure in a pipeline or level in a tank.In a constant pressure pump system,the drive uses feedback from a remote pressure sensor.The PID controller then continuously adjusts the motor speed to maintain the set pressure,regardless of changes in demand(like multiple taps being opened).This eliminates the need for a separate,external process controller,simplifying the system and reducing costs.

　　4.Why is the"booksize"compact design a major advantage?

　　The compact,standardized booksize form factor allows multiple drives to be mounted side-by-side on a single rail within a control cabinet.This drastically optimizes the use of valuable panel space.For system integrators and OEMs,this means they can design smaller,more cost-effective control cabinets or fit more equipment into an existing cabinet footprint,which is a critical factor in many projects.

　　5.What safety features does this drive offer?

　　Beyond standard electronic protection against overcurrent,overvoltage,and overtemperature,the drive's safety credentials include support for safety functions.While specific certifications should be verified per model,drives in this class often support functions like Safe Torque Off(STO)via an optional safety expansion card.STO is a critical safety feature that prevents the drive from generating any output torque that could start the motor,allowing for safe maintenance and meeting machinery safety standards.
