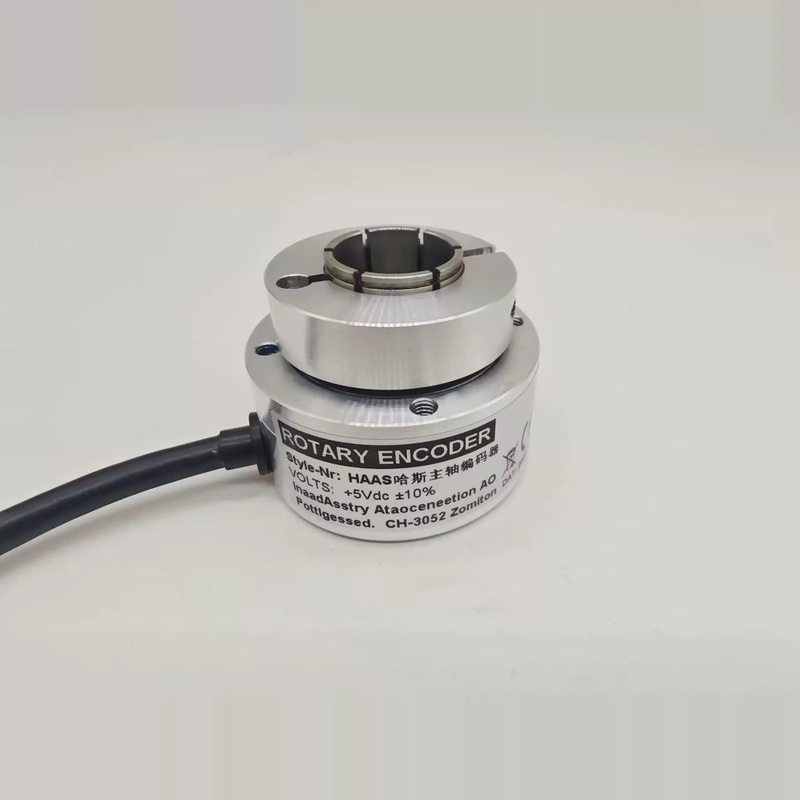

HAAS 93-1902/4096CPR/30-5840 High-Resolution CNC Spindle Encoder

　　The HAAS 93-1902/4096CPR/30-5840 stands as a critical component within the HAAS CNC ecosystem,specifically engineered as a high-performance spindle encoder.This device is paramount for closed-loop control of the machine tool's spindle,ensuring that rotational speed and angular position are precisely monitored and maintained.With a resolution of 4096 pulses per revolution(CPR),this CNC encoder provides the fine-grained feedback necessary for advanced machining operations such as rigid tapping,spindle orientation for tool changes,and synchronized C-axis contouring.Its robust design is tailored to withstand the harsh environments of machine shops,dealing with contaminants like coolant,oil mist,and metallic particles while delivering unwavering reliability.

　　1.Product Overview and System Integration

　　A spindle encoder is fundamentally a sensory device that converts the mechanical motion of a rotating shaft into an electrical signal.The HAAS 93-1902 model performs this task with high fidelity,acting as the spindle's"eyes"for the machine's control system.Unlike linear encoders that measure straight-line movement,this rotary encoder is dedicated to monitoring the pivotal rotation of the spindle.In a HAAS CNC system,the feedback from this encoder is continuously fed back to the main control unit.This creates a closed-loop system where the commanded spindle speed(e.g.,5000 RPM)is constantly compared to the actual measured speed.If any deviation due to load variation occurs,the control system instantly compensates by adjusting the motor torque,thereby maintaining the set speed under varying cutting conditions.This integration is vital for processes like rigid tapping,where the spindle rotation must be perfectly synchronized with the Z-axis feed to accurately cut threads.

　　2.Technical Specifications and Performance Characteristics

　　The identity and capability of this encoder are defined by its specific model code.The 93-1902 is the core HAAS part number,identifying it as a genuine OEM component designed for seamless compatibility.The 4096 CPR specification is a key performance indicator,denoting the encoder's resolution.This high pulse count means the control system receives 4096 distinct digital signals for every single revolution of the spindle.This translates to an angular resolution of less than 0.1 degrees,enabling exceptionally precise positional control.This high resolution is what allows for accurate spindle orientation,where the spindle must stop at an exact,repeatable angular position for automatic tool changing.The 30-5840 segment of the model number often refers to specific configuration details,which can include the output signal type and the physical cable length and interface.This particular model is designed to interface directly with HAAS control systems,ensuring plug-and-play compatibility and reliable signal integrity without the need for external signal converters.

　　3.Core Design Features and Construction

　　The durability of the HAAS 93-1902 encoder is a result of its purpose-built construction for a demanding industrial environment.The housing is typically crafted from robust materials like machined aluminum or hardened polymer,offering a blend of light weight and resistance to physical impact and corrosion.Critical to its operation is the shaft and bearing assembly.These components are engineered for high-speed operation and are sealed to prevent the ingress of coolant,oil,and fine abrasive dust,which are common contaminants in a machining center.This robust sealing is essential for achieving a long service life and preventing premature failure.The sensing technology inside is often based on an optical system,featuring a glass or metal disc with extremely fine gratings.A light source(LED)and a photodetector on either side of this disc work together to generate the electrical pulses as the disc rotates with the spindle.This optical design is favored for its high accuracy,low friction,and excellent response at high speeds.

　　4.Application Areas and Operational Benefits

　　The primary application of this CNC encoder is to enable advanced spindle functions that are essential for modern,efficient machining.For Rigid Tapping,the encoder ensures the spindle rotation and the tap's linear descent into the part are perfectly synchronized,preventing the tap from breaking or stripping the threads.In Spindle Orientation,it provides the precise feedback needed to stop the spindle at a specific angular location,which is crucial for automatic tool changers to grip and release tools correctly.Furthermore,when a HAAS control is equipped with C-axis capability,this high-resolution encoder allows the spindle to function as a precision rotary table,enabling complex contouring operations like milling hexagons or drilling holes on a bolt circle without needing a separate rotary axis.The operational benefits are substantial.It directly enhances machining accuracy and repeatability,reduces scrap rates by ensuring processes like tapping are executed correctly,and increases overall equipment uptime by providing reliable,maintenance-free performance.Using a genuine HAAS encoder like the 93-1902 guarantees optimal communication with the machine control,eliminating compatibility issues and ensuring all advanced functions perform as intended by the manufacturer.

　　Expanded Perspective:The Critical Role of Encoders in CNC Machining

　　Understanding the broader context of feedback devices illuminates why a component like the HAAS 93-1902 is indispensable in automated manufacturing.

　　1.The Feedback Loop:Open vs.Closed Systems

　　In motion control,an open-loop system operates without feedback;a command is sent to a motor(like a stepper motor)with the assumption it has been executed.This is simple and cost-effective but prone to errors if the motor misses steps due to overload.In contrast,virtually all modern CNC machine tools,including HAAS mills and lathes,operate on a closed-loop principle for critical axes and the spindle.The spindle encoder is a fundamental part of this closed loop.It provides real-time verification that the spindle is following commands.If the control detects a discrepancy between the commanded state and the feedback from the encoder,it can generate an alarm,halt the program,or actively correct the error,thus protecting the machine,the tool,and the part from damage.

　　2.Comparative Analysis:Spindle Encoder vs.Servo Motor Encoder

　　While both are rotary encoders,a spindle encoder and a servo motor encoder often have different design priorities.A servo encoder,typically attached to the servomotors driving the X,Y,and Z axes,requires an extremely high resolution(often in the range of millions of counts per revolution)to achieve precise positioning and smooth motion at very low speeds.A spindle encoder,however,is optimized for high-speed operation.Its resolution,while still high(e.g.,4096 CPR),is balanced against the need to reliably generate and process signals at very high RPMs(e.g.,10,000 RPM or more).Its primary functions are speed regulation and angular positioning rather than ultra-fine micro-positioning.Furthermore,spindle encoders are often built with more robust sealing to handle the direct exposure to the machining environment,which is typically harsher at the spindle compared to the ball screw drives of the linear axes.

　　3.Installation,Troubleshooting,and Maintenance

　　Proper installation is key to the longevity and accuracy of a spindle encoder.It must be mounted with precise alignment to the spindle shaft to prevent bearing wear and signal runout.The mounting must also be secure to resist vibration.From a troubleshooting perspective,symptoms of a failing encoder can include spindle speed fluctuations,alarms related to"spindle sync loss"or"orientation fault,"and inaccurate threading.Maintenance is generally minimal but should involve keeping the surrounding area clean and periodically inspecting the unit for physical damage or accumulated debris that could compromise seals.The cable and connector are also common failure points and should be checked for integrity.

　　Frequently Asked Questions(FAQs)

　　What does the 4096 CPR resolution mean for my machining operations?

　　A resolution of 4096 CPR means the control system receives 4096 discrete pieces of positional information for every single revolution of the spindle.This high level of detail is crucial for precision tasks.For spindle orientation,it allows the control to stop the spindle within a fraction of a degree for reliable tool changes.In rigid tapping,it ensures the spindle's rotational position is perfectly locked to the Z-axis position,preventing tap breakage and ensuring high-quality threads.For simple speed control,it provides a very stable and accurate speed feedback signal.

　　Can this encoder be used as a replacement on non-HAAS machines?

　　While it is technically a rotary encoder that outputs standard square wave signals(likely with differential A,B,and Index channels),it is specifically calibrated and configured as a genuine HAAS OEM part.Using it on a different brand of CNC machine would require verifying electrical compatibility(voltage,signal type),physical mounting compatibility,and ensuring the resolution matches the requirements of the foreign control system.For optimal and guaranteed performance on a HAAS machine,the genuine HAAS 93-1902 part is strongly recommended.

　　What are the most common signs of a failing spindle encoder?

　　The most common symptoms are spindle-related alarms on the control screen,such as"Spindle Sync Loss"or"Spindle Orientation Fault."You may also observe the spindle running at an incorrect speed,fluctuating in speed under a constant load,or failing to stop at the correct position for a tool change.In processes like rigid tapping,a failing encoder will typically cause broken taps or poorly formed threads due to a loss of synchronization.

　　How does the environment inside a CNC machine affect encoder lifespan?

　　The machine shop environment is one of the harshest for electronic components.The encoder is constantly exposed to vibration from the spindle and cutting forces,temperature fluctuations,and pervasive contaminants like coolant mist,lubricating oil,and fine metal chips.The HAAS 93-1902 is built to resist these factors with sealed housings and bearings,but extreme exposure or direct fluid ingress can still lead to premature failure.Proper machine maintenance,including controlling coolant contamination and keeping the spindle area clean,directly contributes to a longer encoder life.

　　Is professional calibration required after replacing this encoder?

　　In most cases on a HAAS machine,a simple replacement of the encoder with a genuine part does not require manual calibration in the traditional sense.However,after installation,it is often necessary to perform a"Spindle Orientation"setup procedure through the machine's control software.This routine teaches the control the exact relationship between the encoder's index pulse(which indicates one full revolution)and the physical position of the spindle.This step is critical for ensuring that tool changes occur reliably and accurately.
