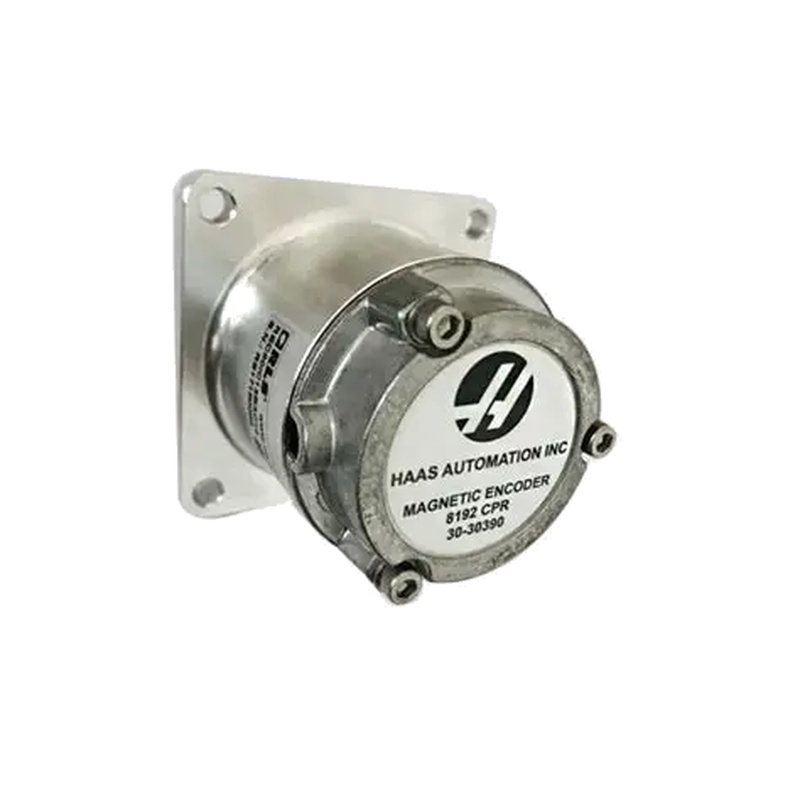

HAAS 93-0447A/8192CPR/30-30390 Precision CNC Spindle Encode

　　The HAAS 93-0447A/8192CPR/30-30390 is a high-performance CNC spindle encoder designed to deliver exceptional accuracy and reliability in demanding computer numerical control(CNC)machining environments.This specific model,with its notable 8192 cycles per revolution(CPR)resolution,provides the precise feedback necessary for advanced manufacturing processes.It serves as the critical sensory component on CNC machine tool spindles,converting physical rotation into electrical signals that the control system uses to monitor and maintain precise spindle speed,position,and direction.Its design is geared towards ensuring high-quality surface finishes,accurate threading,and rigid tapping operations,making it an indispensable component for modern machining centers.

　　1.Product Overview and Core Functionality

　　The primary role of the HAAS 93-0447A encoder is to provide closed-loop feedback to the CNC system.In a typical Haas machine setup,the encoder is mounted directly onto the spindle motor or shaft.As the spindle rotates,the encoder generates a series of high-frequency pulses corresponding to the shaft's angular position and velocity.This real-time data is continuously fed back to the controller,which compares the actual spindle performance with the commanded values.This allows for immediate corrective actions,ensuring that the spindle maintains the programmed speed under varying load conditions,which is crucial for operations like heavy-duty milling or high-speed finishing.

　　This high resolution encoder is particularly critical for functions that require precise angular positioning,such as spindle orientation for tool changes.In automatic tool changers,the spindle must stop at an exact angular position to allow the tool holder to be released or grasped accurately.The 8192 CPR resolution of this model enables this precise stopping,thereby protecting the tool changer mechanism from damage and minimizing non-cut time.

　　2.Technical Specifications and Key Features

　　The HAAS 93-0447A is characterized by its high-resolution output and robust construction.The standout specification is its 8192 CPR,which signifies the number of discrete positions it can detect within a single revolution of the spindle.This high pulse count translates to extremely fine granularity in position feedback,enabling superior control over the machining process.

　　Key technical attributes and features include:

　　High Resolution:The 8192 CPR capability allows for extremely precise speed regulation and position control,which is essential for high-tolerance machining and complex contours.

　　Durable Construction:Built to withstand the harsh conditions of a machine shop,including exposure to coolant,metal chips,and constant vibration.Many modern spindle encoders from Haas feature a non-contact design,which eliminates physical wear and tear,enhancing longevity and reducing maintenance needs.

　　Differential Signal Output:It typically outputs differential signals(such as A,/A,B,/B).This configuration is highly resistant to electrical noise,which is common in industrial environments with powerful motors and drives,ensuring data integrity over longer cable runs.

　　Integrated Mounting System:The encoder is designed for seamless integration with Haas spindle assemblies,ensuring proper alignment and mechanical coupling,which is vital for signal accuracy.

　　3.Operational Principle and Internal Technology

　　The HAAS 93-0447A encoder operates on an optical principle to achieve its high resolution.Inside the encoder,a light-emitting diode(LED)projects light through a glass disc,known as a reticle,which has a radial pattern of very fine lines.On the other side of the disc,a photosensor array detects the alternating pattern of light and dark as the disc rotates with the spindle.

　　This detection generates the primary sine wave signals.These analog signals are then processed internally by the encoder's electronics to be converted into the digital square wave outputs(A and B channels)that the CNC control understands.The phase relationship between the A and B channels—which channel leads the other—determines the direction of spindle rotation(clockwise or counterclockwise).The high density of lines on the glass disc is what allows this encoder to achieve its 8192 CPR resolution,providing the CNC system with a very detailed picture of the spindle's movement.

　　4.Performance Advantages in CNC Applications

　　Utilizing a high-resolution encoder like the HAAS 93-0447A brings several tangible benefits to CNC machining operations.

　　Enhanced Surface Finish and Dimensional Accuracy:By ensuring the spindle rotates at the exact commanded speed without fluctuation,the encoder helps prevent defects such as chatter marks or inconsistent surface textures.This leads to superior part quality and reduces the need for secondary finishing operations.

　　Reliable Rigid Tapping and Threading:For rigid tapping,the spindle's rotational position must be perfectly synchronized with the linear feed of the Z-axis.The precise feedback from this encoder makes this synchronization possible,resulting in accurate and clean threads.

　　Improved Process Reliability and Uptime:Accurate spindle control minimizes tool stress and breakage.Furthermore,the encoder's role in reliable tool changing prevents costly crashes and machine downtime,thereby increasing overall equipment effectiveness(OEE).

　　Expanded Perspective:The Critical Role of Encoders in Modern CNC Systems

　　Understanding the broader context of encoder technology and its implementation helps in appreciating the value of a component like the HAAS 93-0447A.

　　1.The Backbone of Closed-Loop Control

　　In CNC machinery,the motion control system is fundamentally a closed-loop system.The CNC spindle encoder is a key component in this loop,acting as the"eyes"for the controller.Without this feedback,the system would operate in open loop,blindly assuming the motor has followed its command,which is insufficient for precision machining.The encoder feedback allows for real-time compensation for load variations,thermal expansion,and mechanical slip,ensuring the final machined part matches the digital design intent.

　　2.Installation,Calibration,and Maintenance Best Practices

　　The high performance of an encoder is contingent upon its correct installation and upkeep.Proper alignment is paramount;even minor radial runout or incorrect axial gap between the read head and the scale can lead to signal errors and trigger alarms.Techniques such as using a dial indicator to check runout are often recommended during installation.

　　Maintenance is generally minimal for non-contact encoders,but the focus should be on preventing physical damage and contamination.The encoder cable and its connections are common failure points.It is critical to ensure cables are securely fastened away from moving parts like spindle belts to prevent wear and tear.Additionally,verifying that the encoder read head is properly grounded to the machine casting is a standard troubleshooting step to resolve intermittent signal issues.For machines in particularly demanding environments,ensuring that the correct ferrite filters are installed on encoder and vector drive cables is also a noted practice to maintain signal integrity.

　　Frequently Asked Questions(FAQs)

　　1.What does"8192 CPR"mean for a spindle encoder?

　　CPR stands for"Cycles Per Revolution."An 8192 CPR rating means the encoder generates 8192 distinct digital pulses for every single turn of the spindle.This high resolution provides the CNC control with extremely fine-grained data on the spindle's position and speed,which is directly linked to the precision of machining operations,especially those requiring synchronized motion like rigid tapping.

　　2.Can a faulty spindle encoder cause tool changer problems?

　　Absolutely.A faulty or misaligned encoder can fail to provide the correct positional feedback for spindle orientation.If the spindle does not stop at the precise angle required by the tool changer,the tool exchange process can fail,potentially leading to a tool drop or a collision between the tool and the changer mechanism,resulting in machine damage and significant downtime.

　　3.What are common symptoms of a failing spindle encoder?

　　Common symptoms include the inability to orient the spindle for a tool change,inconsistent spindle speeds under load,the appearance of specific spindle-related alarms(e.g.,communication errors or excessive servo error),and the spindle motor not turning while the load meter shows a maximum value.Intermittent issues can often be traced back to cable connections or grounding.

　　4.How does a non-contact encoder differ from older-style encoders?

　　Traditional encoders may use physical contacts like brushes,which are prone to wear.A non-contact encoder,like many modern Haas spindle encoders,uses optical or magnetic principles to read position without physical contact.This design eliminates mechanical wear,offers higher reliability,faster operational speeds,and greater resistance to contamination,leading to a longer service life.

　　5.Why is proper grounding for the encoder so important?

　　Proper grounding of the encoder read head to the machine casting is crucial for electrical noise immunity.An ungrounded or poorly grounded encoder can act as an antenna,picking up electrical noise from motors and drives.This noise can corrupt the delicate feedback signals,leading to erratic spindle behavior,data errors,and persistent alarms.
