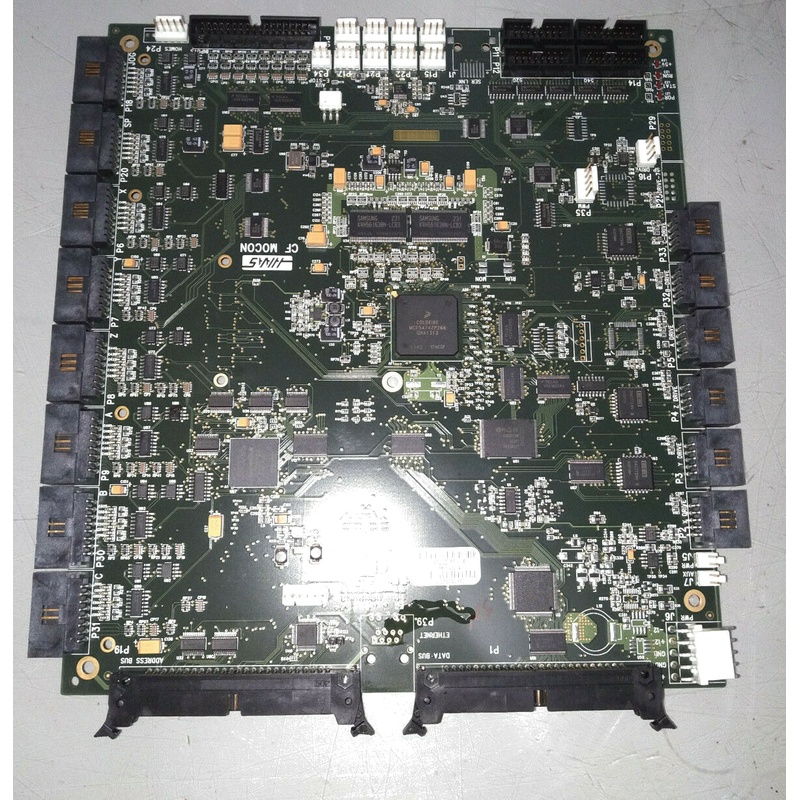

The HAAS 93-32-4123D represents a critical component within Haas Automation's ecosystem,specifically engineered as a high-performance Servo Control PCB.This specialized Industrial Control PCB is the nerve center for managing servo motors in demanding CNC machinery,translating digital commands into precise physical movement.Designed for reliability in harsh manufacturing environments,this board ensures that Haas machine tools maintain their renowned accuracy and repeatability during high-speed machining operations.Its role is pivotal in closed-loop motion control systems,where it continuously processes feedback from encoders to dynamically adjust motor torque and speed,making it an indispensable element for advanced manufacturing and precision engineering applications.
1.Product Overview and System Integration
The 93-32-4123D is a quintessential Industrial Control PCB designed to operate within Haas's proprietary control architecture.It functions as a dedicated motion controller,often interfacing directly with the main microprocessor board and the vector drive system.In a typical Haas CNC system,this Servo Control PCB receives high-level motion commands and translates them into precise,low-level signals that drive the servo amplifiers and,consequently,the servo motors themselves.
A key aspect of its integration is its role in the closed-loop control system.Unlike open-loop systems,this board actively monitors the status and position of the motor via feedback devices like encoders.This continuous feedback loop allows for real-time correction of any discrepancy between the commanded position and the actual motor position,ensuring exceptional accuracy and handling dynamic loads encountered during cutting operations.This board is a fundamental reason why Haas machines can achieve high levels of precision and reliability in production environments.
2.Technical Specifications and Design Features
The HAAS 93-32-4123D is built with specifications that meet the rigorous demands of industrial automation.
Processing and Memory:While specific details for this model are not publicly disclosed,similar Haas servo control boards often feature powerful embedded microprocessors and sufficient onboard memory to handle complex motion profiles and algorithmic computations.
Input/Output Configuration:The board is equipped with a range of I/O interfaces to connect with encoders,resolvers,and the main control unit.These connections are crucial for reading positional feedback and transmitting control signals.
Power Requirements:It typically operates on low-voltage DC power,such as+12V,-12V,and+5V,which is supplied from the machine's robust low-voltage power supply system.
Environmental Robustness:As a true Industrial Control PCB,it is designed to withstand the challenging conditions of a machine shop,including moderate temperature fluctuations,vibration,and potential exposure to coolants or particulates.
3.Core Design Advantages and Technologies
This Servo Control PCB incorporates several advanced technologies that contribute to its superior performance.
Closed-Loop Vector Control:At the heart of its operation is advanced vector control technology.This allows for independent control of the motor's torque and magnetic flux,resulting in high torque output even at low speeds,smooth operation across the entire speed range,and improved dynamic response.
Real-Time Fault Monitoring and Diagnostics:The board is integrated into the machine's comprehensive diagnostic system.It can trigger specific alarm codes related to servo performance,such as axis drive faults,overload conditions,or feedback errors.This capability is invaluable for rapid troubleshooting and minimizing machine downtime.
Robust Industrial-Grade Construction:Adhering to the highest standards for Industrial Control PCBs,the 93-32-4123D likely utilizes a high-Tg FR-4 material for the substrate to resist thermal stress.Furthermore,it employs features like thickened copper traces for higher current carrying capacity,protective conformal coatings to guard against moisture and contamination,and industrial-grade connectors to ensure long-term reliability.
Optimized Signal Integrity:The board's layout is engineered for exceptional signal integrity.Careful separation of analog and digital grounds,along with strategic shielding and filtering,minimizes electromagnetic interference(EMI),which is critical for maintaining the accuracy of sensitive feedback signals.
4.Performance and Application Benefits
The sophisticated design of the 93-32-4123D translates into direct,tangible benefits for end-users.
Enhanced Machining Precision and Surface Finish:By providing stable and accurate servo control,this board directly contributes to superior part quality.It enables precise tool paths,resulting in excellent surface finishes and tight tolerances,which is paramount in aerospace,automotive,and medical manufacturing.
Improved Production Efficiency:The high dynamic response of the servo system allows for faster axis acceleration and deceleration.This reduces non-cutting time,leading to shorter cycle times and increased overall equipment effectiveness(OEE)for manufacturing facilities.
Exceptional System Reliability and Uptime:Built to the stringent requirements of an Industrial Control PCB,this component is engineered for 24/7 operation in a production environment.Its robust design and integrated diagnostics contribute to a high mean time between failures(MTBF),maximizing machine availability.
Seamless Integration and Diagnostics:As a genuine Haas component,the 93-32-4123D guarantees full compatibility with the machine's control software and user interface.This seamless integration simplifies troubleshooting,as faults are clearly displayed on the control screen,guiding maintenance personnel directly to the issue.
Expanded Perspective:The Critical Role of Servo Control PCBs in Industrial Automation
Understanding the broader context of where and why specialized Industrial Control PCBs are used is key to appreciating the engineering behind the HAAS 93-32-4123D.
1.The Niche of Industrial Control PCBs vs.Consumer PCBs
It is a common misconception that any circuit board can serve in an industrial setting.In reality,Industrial Control PCBs like the HAAS 93-32-4123D are fundamentally different from consumer-grade PCBs.
Environmental Tolerance:Consumer boards are designed for benign,climate-controlled environments.Industrial boards must withstand wide temperature swings,high humidity,conductive dust,and constant vibration from nearby machinery.
Longevity and Component Sourcing:Industrial automation equipment is expected to have a lifecycle of decades.Therefore,Industrial Control PCBs are designed with a long-term view,often using components that are guaranteed to be available for many years,unlike the rapidly changing consumer electronics market.
Safety and Reliability:Failure of a servo control board in a CNC machine can lead to a catastrophic crash,causing thousands of dollars in damage and posing a safety risk.These boards are designed with redundant safety checks and higher margins of safety to prevent such occurrences,a level of reliability not required in consumer products.
2.Application Spectrum:Beyond Machine Tools
While the HAAS 93-32-4123D is specific to CNC machinery,the underlying technology of Servo Control PCBs is fundamental to modern automation.
Robotics and Automated Guided Vehicles(AGVs):These systems rely on servo control for precise joint movement and accurate navigation.
Packaging and Material Handling:High-speed pick-and-place robots,conveyor systems,and sorting machines use servo control for speed and accuracy.
Printing and Converting Machinery:Register control,which ensures patterns are aligned perfectly on a moving web of material,is achieved through advanced servo control systems.
Selection Insight:When selecting or specifying a Servo Control PCB,the key is to match its performance characteristics—such as processing speed,feedback resolution,and output current capacity—to the specific demands of the application,whether it's a high-speed router or a heavy-duty milling machine.
3.Implementation and Maintenance Best Practices
To ensure the longevity and reliability of a sophisticated component like the 93-32-4123D,proper handling and maintenance are paramount.
Power and Grounding Integrity:A clean and stable power supply is the foundation for any sensitive electronic board.Proper grounding is equally critical to shunt electrical noise away from the control circuitry and prevent damage from voltage spikes or electrostatic discharge(ESD).
Environmental and Cooling Management:Ensuring the control cabinet remains clean,cool,and within the specified humidity range is one of the most effective ways to extend the life of all Industrial Control PCBs,including servo controllers.
Firmware and Software Management:Keeping the board's firmware up to date,as recommended by the manufacturer(Haas,in this case),can provide performance enhancements,new features,and critical bug fixes that improve stability.
Frequently Asked Questions(FAQs)
1.What is the primary function of a Servo Control PCB like the HAAS 93-32-4123D?
Its primary function is to act as the intelligent intermediary in a motion control system.It takes high-level positioning commands from the main CNC controller and executes them by generating the precise low-level signals needed to drive servo amplifiers or drives.Simultaneously,it constantly monitors feedback from motor encoders to ensure the motor is following the command accurately,creating a closed-loop system for ultimate precision.
2.How does an Industrial Control PCB differ from a standard PCB?
An Industrial Control PCB is built to a much higher standard of robustness and reliability.It uses industrial-grade components rated for wider temperature ranges,employs thicker copper for higher current loads,and often includes a protective conformal coating to resist moisture,dust,and chemicals.Its design prioritizes long-term stability and resistance to the electrical noise,vibration,and thermal cycling commonly found in factory environments,unlike consumer-grade PCBs.
3.What are common symptoms of a failing Servo Control PCB?
Common symptoms can include erratic axis movement,failure of an axis to move,servo drift where the axis slowly creeps,sudden servo overload alarms without a mechanical cause,and specific fault codes related to drive or feedback errors.It is crucial to perform thorough diagnostics to confirm the PCB is the root cause,as these symptoms can sometimes be related to motors,cables,or encoders.
4.Can this PCB be repaired,or does it require replacement?
While specialized electronics repair services can sometimes repair a faulty Servo Control PCB,it is generally recommended to go through the manufacturer or an authorized distributor for a replacement or official repair.This ensures the board meets original specifications,maintains system integrity,and does not void the machine's warranty.Repairing complex,multi-layer boards without proper documentation and equipment can be challenging and may lead to further issues.
5.Why is the closed-loop design so critical in modern servo systems?
Closed-loop design is fundamental because it allows for real-time error correction.The system is not just"hoping"the motor moved to the right position;it is"watching"it via the encoder and making instantaneous adjustments.This compensates for variables like changing load forces(e.g.,during a heavy cut),temperature-induced expansion,and mechanical wear,ensuring the tool path is followed with exceptional accuracy.
