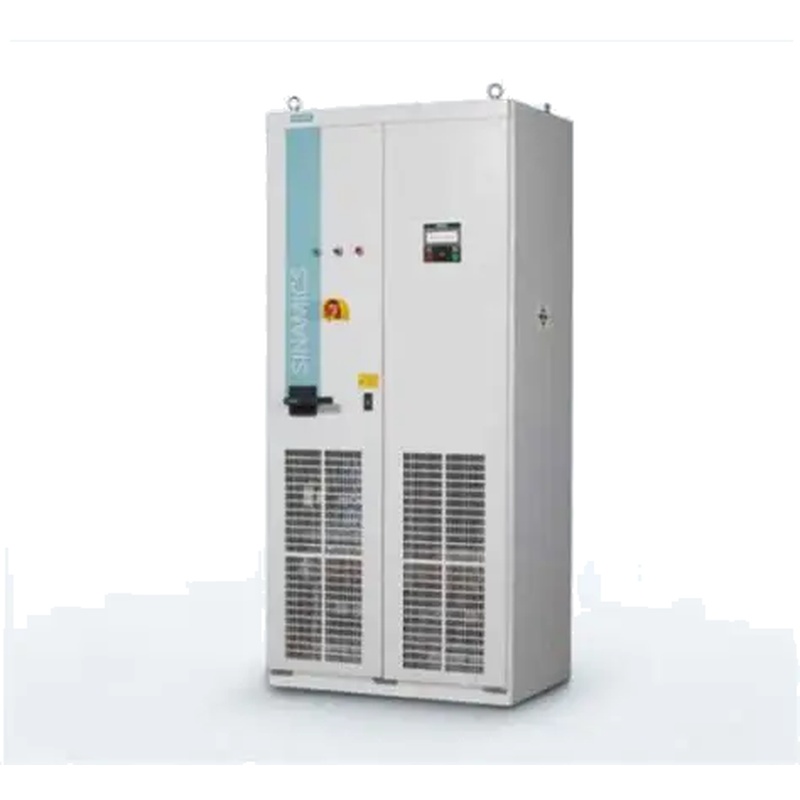

The SIEMENS 6SL3721‑1TE41‑2BE0 is a high‑performance Single Motor Control Module designed for modular drives within the SINAMICS S120 system family,optimized as an Air‑cooled Industrial VFD solution for precise and reliable control of medium‑to‑high power AC motors.This module integrates advanced power electronics and control features to support demanding industrial automation environments where flexibility,efficiency,and scalability are essential.
Overview of SINAMICS S120 and the Role of the Single Motor Control Module
The SINAMICS S120 platform from Siemens is a modular drive system architecture widely adopted in modern industrial automation.Unlike fixed standalone variable frequency drives,the S120 family consists of replaceable drive modules that slot into standardized racks and can be configured for:
Single motor control
Multi‑motor systems
Regenerative energy applications
High dynamic performance tasks requiring precise motor feedback
Within this system,the Single Motor Control Module(such as the 6SL3721‑1TE41‑2BE0)is focused on controlling a single AC motor with high efficiency,dynamic response,and flexibility.It receives DC power(often from a line converter or DC bus shared across multiple modules)and converts it into three‑phase variable frequency AC output tailored to the connected motor type and control algorithm.
Key Features and Technical Capabilities
Industrial‑grade Air‑cooled VFD Design
As an Air‑cooled Industrial VFD,this module avoids the need for liquid cooling systems,which simplifies cabinet design,reduces maintenance complexity,and lowers total cost of ownership.Suitability for air cooling is particularly important in:
Clean or dry industrial environments
Enclosures with sufficient airflow
Systems where liquid cooling infrastructure is not preferred or needed
The integrated heat‑dissipation design ensures thermal stability while supporting continuous duty cycles common in production lines.
Motor Control and Performance
The 6SL3721‑1TE41‑2BE0 supports:
Precise speed and torque control across a wide speed range,ideal for servo‑like performance in demanding applications
Compatibility with multiple motor types(induction motors,permanent magnet synchronous motors),depending on specific firmware and feedback options
Built‑in safety features such as overcurrent and overvoltage protection,fault detection,and diagnostics
The module’s design supports high dynamic performance,making it suitable for:
Packaging machinery
Printing presses
Extruders
Conveyors requiring tight speed regulation
Integration with SINAMICS S120 Ecosystem
The module tightly integrates with other components in the SINAMICS S120 ecosystem:
Control Units:Supervisory selection of motion profiles,PLC integration,and automation sequencing
DC Link Modules:Shared DC bus architecture for energy recovery and multi‑axis systems
Feedback Modules:Resolver or encoder feedback support for advanced motion control
Power Modules:Coordinated power stages that distribute energy efficiently across modules
Such modularization enables customers to scale systems without redesigning complete drive architectures.
Typical Industrial Applications and Benefits
Automotive Manufacturing Lines
In automotive assembly and processing lines,precise motion control directly impacts production quality and cycle time.Using the 6SL3721‑1TE41‑2BE0 module provides:
Smoother acceleration and deceleration
Reduced mechanical stress
Better coordination in multi‑axis systems
These contribute to higher uptime and lower long‑term operational costs.
General Machine Automation
Air‑cooled Industrial VFDs like this module are well suited to common industrial equipment:
Conveyor systems with variable loading conditions
Industrial fans and blowers
Pumps with variable flow requirements
Material handling systems
The combination of energy efficiency,modular serviceability,and advanced fault detection enhances personnel safety and reduces downtime risk.
Flexible Retrofit and Upgrade Scenarios
Existing installations with older generation drives can be modernized using SINAMICS S120 modules.Benefits of upgrading include:
Enhanced energy efficiency through optimized control algorithms
Better integration with modern PLC and motion control systems
Improved diagnostics that support predictive maintenance
Such upgrades can yield measurable productivity improvements without full system replumbing or retrenching.
Customer‑Focused Value Proposition
1.Scalability and Future‑Proofing
Industrial automation systems often evolve over time.Choosing a modular Single Motor Control Module facilitates:
Future capacity increases
Easy replacement of modules
Addition of motion axes without swapping entire drives
This aligns with long‑term automation investment strategies.
2.Lower Maintenance Over Lifecycle
Air‑cooled designs maintain reliability in a broad range of industrial conditions,reducing:
Leak risk associated with liquid cooling
Need for specialized cooling service
Downtime due to cooling media failures
Simplified maintenance and common parts inventory further drive cost savings.
3.Rich Diagnostics and Connectivity
Modern industrial VFDs increasingly act as connected nodes within automation systems.This module supports:
Real‑time fault and performance logging
Integration with industrial communication standards
Compatibility with remote monitoring tools
These features enable better planning for repairs and service interventions.
Frequently Asked Questions(Potential Customer Interests)
1.What distinguishes a Single Motor Control Module from a conventional standalone VFD?
A Single Motor Control Module,like the SIEMENS 6SL3721‑1TE41‑2BE0,is specifically designed for modular drive systems such as SINAMICS S120.Unlike a conventional standalone VFD that combines all power and control elements into one fixed enclosure,this module is part of a distributed modular architecture.It relies on shared DC bus infrastructure and centralized control units to coordinate motor control while enabling scalability and flexibility.This architectural separation provides better adaptability in multi‑axis systems and typically results in easier maintenance and integration within complex automation environments.
In contrast,traditional standalone VFDs are often simpler to deploy for single‑axis,point applications but lack the systemic benefits—such as shared energy modules,coordinated motion control,and common diagnostics—that modular systems bring.The modular approach becomes especially advantageous in systems where multiple motors must operate together or where future expansion is planned.
Finally,modular modules can support advanced feedback devices(encoders,resolvers)and advanced dynamic control schemes often required in high‑performance industrial applications.
2.Can this air‑cooled module be used in harsh industrial environments?
Yes.As an Air‑cooled Industrial VFD,this module is engineered to withstand typical industrial conditions where dust,vibration,and temperature variations are present.The air‑cooled design eliminates the dependency on secondary cooling infrastructure but does require that cabinets are designed with proper airflow and filtration to ensure effective heat dissipation.In extremely dusty or corrosive environments,cabinet air filtration and routine maintenance schedules should be considered to prevent clogging and ensure continued performance.
Its robust internal protection features,such as over‑temperature,over‑current,and fault reporting,further enhance reliability.Proper selection of enclosures and environmental conditioning can expand the applicability of this module even further into demanding industrial sites.
3.What are the key benefits of modular drives compared to monolithic VFD architectures?
Modular drives like the SINAMICS S120 allow users to separate functional blocks—power conversion,control logic,feedback processing—into replaceable modules.This separation has several advantages:
Serviceability:Faulty modules can be replaced individually without overhauling the entire drive.
Customization:Systems can mix and match modules based on specific motor power,control complexity,and communication requirements.
Energy Efficiency:Shared DC link and regenerative options allow multiple drives to reuse braking energy,reducing overall power consumption.
System Growth:If automation needs expand,additional modules can be introduced without redesigning the foundation architecture.
These strengths make modular systems better suited for large,complex,or evolving automation applications than monolithic VFDs.
4.How does using this module impact energy efficiency in industrial systems?
Utilizing an air‑cooled,modular drive module like the 6SL3721‑1TE41‑2BE0 contributes to energy efficiency in several ways.First,precise motor control allows matching the motor’s output to real load requirements,reducing wasted energy.Second,the modular SINAMICS S120 platform can support a shared DC bus with regenerative modules that feed braking energy back into the system rather than dissipating it as heat.This can translate into significant savings in high‑duty applications with frequent speed changes or start/stop cycles.
Additionally,the air‑cooled design eliminates auxiliary energy consumption associated with liquid cooling pumps or chillers.This not only lowers operating cost but also reduces system complexity and potential failure points.
5.What should be considered when selecting the right cooling method(air vs liquid)for industrial VFDs?
Selecting between air‑cooled and liquid‑cooled VFD designs hinges on multiple factors:
Power Level and Density:Very high‑power installations(hundreds of kilowatts)may produce heat levels beyond what passive air cooling can handle,favoring liquid cooling.
Environmental Conditions:Dusty,hot,or confined spaces may limit the effectiveness of air cooling unless adequate ventilation is provided.Liquid cooling works well where ambient air conditions are unfavorable.
Maintenance Strategy:Air‑cooled systems generally require less maintenance infrastructure and are simpler to service than liquid systems,which need coolant monitoring and potential leak control.
Total Lifecycle Cost:While liquid cooling can support higher power density,its support systems add complexity and expense.For many industrial applications,air‑cooled modules deliver optimal balance between performance,cost,and ease of upkeep.
