Category & Core Purpose

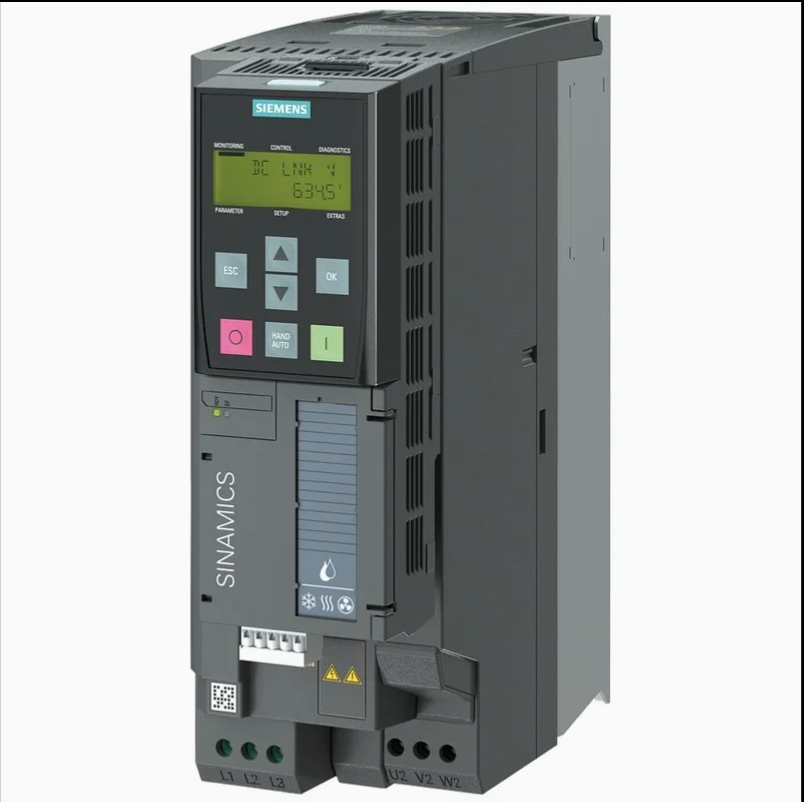

The Siemens 6SL3220-1YD22-0UB0 belongs to the SINAMICS G120XA family, purpose-built for variable-torque applications such as centrifugal pumps, supply-air fans, and cooling-tower blowers. Unlike general-purpose drives, every parameter set, macro, and I/O point is tuned for flow-control tasks, making integration faster and energy savings immediate.
Function Highlights
A 5.5 kW (7.5 hp) three-phase inverter, it runs 380–440 V mains with ±20 % tolerance and delivers 150 % overload for 60 s at 5 kHz switching. Integrated ECO mode, quadratic V/f curves, and automatic flux reduction cut energy use by up to 20 %. A smart sleep/wake algorithm stops the motor at no-flow demand and restarts it instantly when pressure drops, eliminating idle losses and water hammer.
Installation & Connectivity
Side-by-side mounting without derating saves panel space; wall- or duct-mount kits adapt to any plant layout. The coated PCB and replaceable cooling fan withstand 60 °C ambient and dusty HVAC rooms. Parameter cloning via micro-SD card slashes commissioning time, while Modbus RTU comes standard—optional PROFINET, EtherNet/IP, or BACnet cards slot in without firmware change.
Real-World Use Cases
From supply-air fans in office towers to irrigation pumps in greenhouses, the 6SL3220-1YD22-0UB0 turns constant-speed motors into demand-responsive systems. One drive can run up to four pumps in cascade mode, maintaining pressure without external PLCs. Fire mode overrides all faults to keep smoke-extraction fans running during emergencies, meeting EN 12101-3.
ROI & Sustainability
Field data show payback in under 18 months through reduced kWh and maintenance visits. Real-time energy and flow counters in the free web server allow operators to document CO₂ savings for sustainability reporting.
FAQs
Q1: Is the 6SL3220-1YD22-0UB0 ready for IoT integration?
A: Yes. It supports Modbus RTU and can be linked to Siemens MindSphere or any SCADA via optional PROFINET, EtherNet/IP, or BACnet modules.
Q2: How often do I need to service the unit?
A: Under normal conditions, only the cooling fan needs replacement every 3–5 years; the coated electronics extend overall service life.
Q3: Can I run multiple pumps with one inverter?
A: Absolutely. The built-in multi-pump macro lets you cascade up to four pumps without extra controllers.
