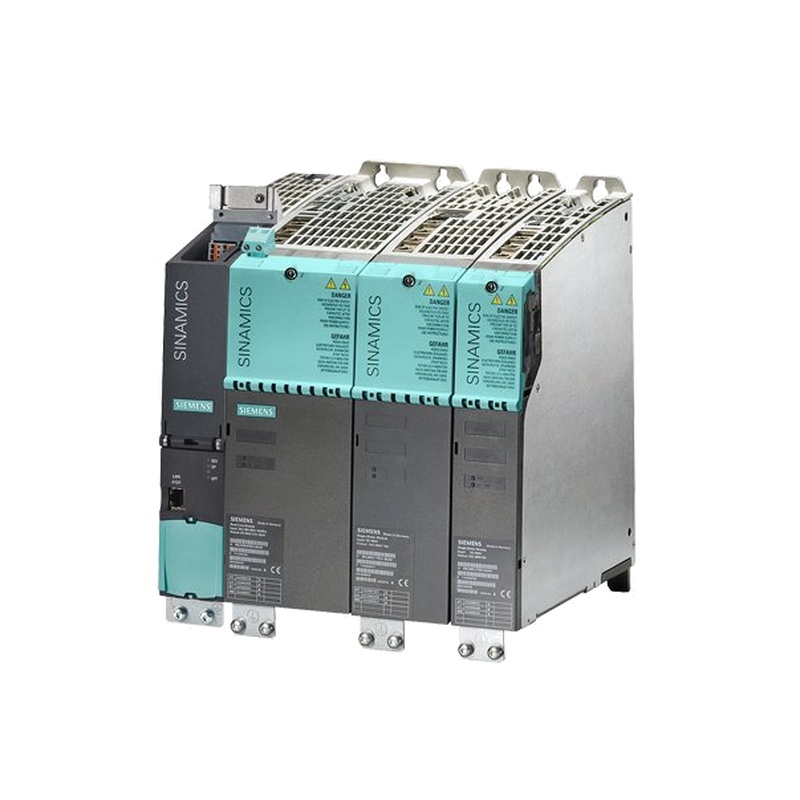

Basic Line Module SIEMENS 6SL3335-1TE41-7AA3 830kW Liquid Cooled Power Supply

　　The SIEMENS 6SL3335-1TE41-7AA3 stands as a formidable Basic Line Module(BLM)within the SINAMICS S120 family,specifically engineered for high-power industrial applications.Unlike its compact,air-cooled booksize counterparts,this unit is a heavy-duty,Power Supply Module designed to deliver a massive 830 kW of continuous power from a common DC bus.Operating on a 380-480V three-phase AC input,it outputs a robust 510-650V DC at 1730A,forming the foundational power backbone for extensive multi-axis drive systems in heavy industries.Its defining characteristic is its integrated liquid cooling system,a necessity for managing the significant thermal load at this power level,ensuring reliability and stability in the most demanding production environments such as metals processing,large test rigs,and heavy machinery.

　　1.Product Overview and Core System Integration

　　The 6SL3335-1TE41-7AA3 is more than just a power converter;it is the central power generation unit for a SINAMICS S120"common DC link"system.In this architecture,this single,high-capacity Basic Line Module rectifies the incoming AC mains power to create a stable DC voltage bus.Multiple motor modules(which can be booksize or chassis-type)then draw from this common DC bus to drive individual motors.This approach centralizes power conversion,improves overall system efficiency,and simplifies the electrical infrastructure for machines with numerous axes.

　　As a Basic Line Module,its operational principle is rectification.It converts AC to DC but does not actively regulate the DC link voltage to a fixed value(a feature of Active Line Modules),and it is non-regenerative.This means any braking energy generated by the motors must be dissipated via an external braking resistor unit.This design philosophy prioritizes robustness,simplicity,and cost-effectiveness for applications where frequent,high-energy braking is not the primary operational mode.The module's intelligence is harnessed through its integrated DRIVE-CLiQ interface,which allows it to be seamlessly configured,monitored,and diagnosed by a central SINAMICS Control Unit(e.g.,CU320-2),making it a smart component within a digitally integrated drive system.

　　2.Technical Specifications and Performance Characteristics

　　The 6SL3335-1TE41-7AA3 is defined by its exceptional power ratings and specialized thermal management.It accepts a standard three-phase AC input with a voltage range of 380V to 480V and a frequency of 50 or 60 Hz.Its primary output is an unregulated DC link,with a voltage that varies proportionally to the input,typically in the range of 510V to 650V DC.The rated DC output current is a substantial 1730 A,culminating in a continuous output power rating of 830 kW under specified conditions.

　　A critical and distinguishing specification is its IP00 protection rating.This indicates the module has no enclosure protection against dust or water ingress.It is designed explicitly for installation inside a fully protected control cabinet or a dedicated electrical room where environmental conditions are controlled.This design choice is common for high-power components,as it prioritizes unimpeded access for cooling and service over built-in environmental sealing.The module's performance is guaranteed within a defined ambient temperature range,and adherence to these limits is crucial for long-term reliability.

　　3.Design Philosophy and Key Engineering Features

　　3.1 Advanced Liquid Cooling System

　　The most prominent design feature of this Power Supply Module is its liquid cooling circuit.At 830 kW,the power losses(heat generated)within the module are far too great to be dissipated by conventional air cooling.The integrated liquid cooling system uses a circulating coolant(typically water-glycol mixture)to directly absorb heat from the power semiconductors and other critical components.This method is vastly more efficient than air cooling,allowing for a remarkably high power density—delivering massive power from a relatively compact footprint.It also significantly reduces the acoustic noise output and prevents the recirculation of hot air inside the control cabinet,simplifying the overall cabinet climate control.

　　3.2 Heavy-Duty Construction for Industrial Longevity

　　Built for 24/7 operation in heavy industries,the module employs a rugged chassis-type construction.It utilizes high-grade power semiconductors and robust DC-link capacitors designed for long service life under high electrical stress.All power connections are designed for high-current cabling,requiring proper termination and torque settings as per Siemens installation guidelines.The design facilitates maintenance,with clear access to cooling connections and status indicators.

　　3.3 Integrated Safety and System Diagnostics

　　Despite its"basic"classification in terms of power conversion,the module is fully integrated into the SINAMICS safety and diagnostic ecosystem.Through DRIVE-CLiQ,it supports critical safety functions like Safe Torque Off(STO),which can be routed through the control system to prevent unintended motor operation.It provides comprehensive real-time data on operating status,temperatures,electrical values,and fault messages,enabling predictive maintenance and minimizing unplanned downtime.

　　4.Primary Application Areas and Operational Value

　　This 830 kW Basic Line Module is not a general-purpose component;it is deployed in specific,high-demand sectors.Its primary application is in metals industry processes,such as driving the main rolls in hot and cold rolling mills,operating slitters,or powering continuous casting lines.It is equally vital for large-scale material handling,including the drives for bucket-wheel reclaimers,stackers,and ship unloaders in mining and port operations.Another key area is mega-watt class test benches for automotive,aerospace,and energy sectors,where precise,high-power motoring is required.

　　The operational value proposition is clear:it provides a highly reliable and efficient centralized power source.By using one large,efficient rectifier instead of multiple smaller ones,system losses are reduced,and power quality at the grid connection point can be better managed.While the non-regenerative design means braking energy is wasted as heat,in many of these continuous-process applications,braking events are infrequent or of lower energy relative to the motoring power,making the economic case for a regenerative ALM less compelling.The BLM offers a robust,proven,and cost-optimized solution.

　　Expanded Perspective:The Role of High-Power Liquid-Cooled Drives in Industry

　　1.Why Liquid Cooling is the Standard for Megawatt Drives

　　When drive systems scale into the hundreds of kilowatts and beyond,air cooling hits fundamental physical limits.The sheer volume of air required becomes impractical to move quietly and efficiently.Liquid cooling,with its superior heat capacity and thermal conductivity,becomes the only viable option.It allows engineers to package extremely high power in a manageable footprint,a critical factor in industrial plants where floor space is at a premium.This technology directly enables the high performance and reliability expected in capital-intensive heavy industry.

　　2.System Design Imperatives for High-Current BLMs

　　Implementing a module of this caliber requires meticulous system engineering.The external braking unit is not an accessory but a mandatory safety-critical component,sized to handle the maximum braking power of the entire downstream drive system.The liquid cooling circuit must be a professionally engineered subsystem with pumps,heat exchangers,filtration,and controls,often requiring a dedicated cooling skid.Equally important are the mains connection components—oversized line contactors,protective circuit breakers or fuses,and possibly harmonic mitigation filters—all rated for the high continuous current.Cabinet design must ensure perfect IP54 or higher protection for the IP00 module and provide adequate space for the mandatory clearances around the unit for coolant piping and airflow to auxiliary components.

　　3.Comparing Power Module Architectures at Scale

　　At the power level of the 6SL3335-1TE41-7AA3,the choice between a Basic(BLM),Smart(SLM),and Active Line Module(ALM)involves significant trade-offs.A comparable Smart Line Module(SLM)would add the capability to regenerate braking energy back to the grid,offering dramatic energy savings in applications with frequent deceleration of large inertial loads.However,it comes at a higher initial cost and complexity.An Active Line Module(ALM)would add both regeneration and a perfectly regulated DC bus voltage,ideal for the most dynamic and sensitive processes,but at a further premium.

　　The decision hinges on the application's duty cycle.For a continuous-process rolling mill with steady load,the energy savings from an SLM/ALM may never justify its cost.For a ore grinder with a cyclical load or a test bench constantly accelerating and braking,the regenerative feature of an SLM/ALM can lead to a compelling return on investment through reduced energy bills and eliminated braking resistor maintenance.

　　Frequently Asked Questions(FAQs)

　　1.What is the most critical auxiliary system for this Basic Line Module?

　　The single most critical auxiliary system is the external liquid cooling circuit.The module cannot operate without a properly functioning cooling system delivering the correct flow rate,pressure,and temperature of coolant as specified in the manual.Failure of this system will lead to immediate overheating and shutdown of the module to prevent damage.

　　2.Can this 830kW module supply a mix of different motor modules?

　　Yes,this is a core strength of the common DC bus concept.The module's 830kW power rating and 1730A current capacity represent the total available power on the DC bus.System designers can connect any combination of SINAMICS S120 motor modules(e.g.,several large 200kW chassis modules and numerous smaller booksize modules)as long as the sum of their simultaneous power demands does not exceed the BLM's continuous rating.

　　3.Why choose a non-regenerative BLM at this power level if energy efficiency is important?

　　The choice is fundamentally economic and application-specific.The upfront cost difference between a BLM and a regenerative SLM/ALM of this power rating is substantial.In applications where braking is very infrequent,short in duration,or where the braking energy is relatively small(e.g.,a slow-stop on a conveyor),the simple payback period for the regenerative technology can be decades.The BLM,with its external resistor,provides a robust,predictable,and lower-cost solution for these scenarios.

　　4.What does the IP00 rating mean for cabinet design?

　　The IP00 rating mandates that the module must be installed inside a fully protected enclosure—typically a control cabinet with a minimum of IP54 rating for the overall cabinet.This ensures protection against dust and water spray common in industrial environments.The cabinet design must also account for the heat dissipated from the module's cooling system and provide the specified clearances for maintenance and cooling air flow to other components.

　　5.How is the braking energy managed with this Basic Line Module?

　　Braking energy is managed entirely by an external braking unit(also called a chopper)and a bank of braking resistors.When motors decelerate and cause the DC bus voltage to rise,the braking unit automatically switches the resistor bank into the circuit,converting the excess electrical energy into heat,which is then dissipated into the surrounding air.The resistors are always installed outside the main control cabinet in a well-ventilated area due to the intense heat they generate.
