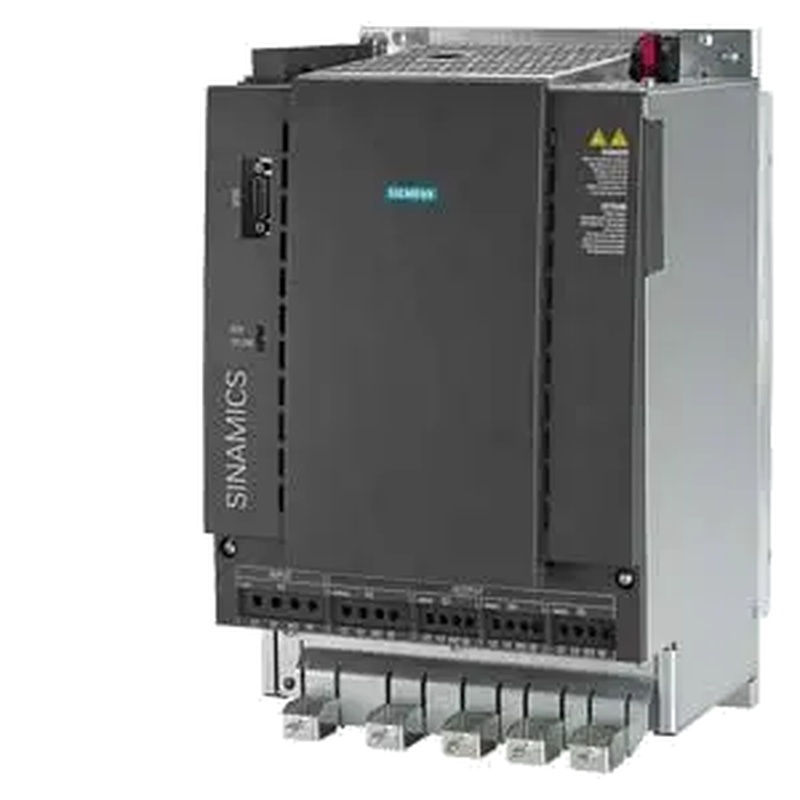

The Siemens 6SL3111-3VE21-6FC1 is a sophisticated Multi-axis Drive Module that redefines space efficiency and performance density in industrial automation.Known as the SINAMICS S120 COMBI B11 Power Module,this unit consolidates the control of up to three motor axes into a single,highly integrated chassis.Engineered for applications demanding synchronized motion and premium dynamic response,it delivers a total output power of 16 kW from a 400 V AC supply.By combining the inverter stages for one 18 A and two 9 A axes with shared cooling and control electronics,this module eliminates the need for multiple discrete drives,offering machine builders a streamlined,reliable,and space-saving Power Module solution for advanced multi-axis systems.
1.Product Overview and System Architecture
The 6SL3111-3VE21-6FC1 is a cornerstone of the SINAMICS S120 motion control system,designed under a"shared-infrastructure"philosophy.Unlike a cabinet built with individual,side-by-side Power Module units,this COMBI module integrates the power electronics,heat sink,and system interfaces for three axes into one unified housing.It operates on the SINAMICS common DC bus principle,requiring an upstream Active Line Module(ALM),Smart Line Module(SLM),or Basic Line Module(BLM)to provide a regulated 600 V DC supply.The intelligence for all three axes is provided by a single,separate Siemens Control Unit(e.g.,CU320-2),which communicates with the module via the DRIVE-CLiQ interface for centralized parameterization,control,and diagnostics.This architecture is optimal for complex machines with several small to medium-powered axes,such as robotic tool changers,multi-function heads,or intricate material handling systems.
2.Technical Specifications and Performance Profile
The module is defined by its multi-axis output configuration and robust electrical characteristics.It accepts a standard three-phase input of 400 V AC,50/60 Hz.Its defining feature is the triple-output design:one main axis with a rated output current of 18 A,and two secondary axes each rated at 9 A.This allows for a flexible power distribution,perfect for driving a primary axis(like a main spindle or a large linear axis)alongside two smaller auxiliary axes(such as feed axes or grippers).The total continuous output power is 16 kW.The module employs an advanced external air-cooling system,where air is forced through a large,shared heatsink by an externally mounted fan.This efficient cooling design is crucial for maintaining performance and reliability under the combined thermal load of three inverters.Critically,the module is designed to support Siemens'comprehensive Safety Integrated functions,enabling the implementation of safety protocols like Safe Torque Off(STO)or Safe Stop 1(SS1)directly on each axis to meet stringent machine safety standards.
3.Core Design Features and Engineering Advantages
The engineering of the COMBI B11 Power Module focuses on integration,reliability,and performance optimization.
High-Density,Multi-Axis Integration:The most significant innovation is the physical and electrical integration of three complete drive channels.This reduces the total footprint in the control cabinet by over 50%compared to three separate booksize modules.It also minimizes internal cabling,connection points,and mounting hardware,leading to a cleaner and more reliable system build.
Optimized Shared Cooling System:The single,large heatsink with forced external air cooling is meticulously designed for the combined thermal output.This shared thermal management is often more efficient than cooling three independent units,as it allows for a larger,more optimized heat exchange surface and a single,powerful fan.This design ensures stable operation even when all three axes are under simultaneous load.
Unified Control and Advanced Diagnostics:Despite housing three inverters,the module presents as a single node on the DRIVE-CLiQ network.This simplifies the system topology and configuration in Siemens'engineering software,SINAMICS Startdrive within the TIA Portal.Engineers can parameterize all three axes from one interface,and diagnostic data for the entire module—including temperatures,currents,and faults—is aggregated and easily accessible,streamlining commissioning and troubleshooting.
Built-in Safety Integration:Safety is not an add-on but a foundational capability.The module's hardware is prepared to execute safety functions commanded by the Control Unit.This integrated approach eliminates the need for external safety relays for basic functions on each axis,reducing component count,wiring complexity,and validation effort for safety-critical applications.
4.Application Scenarios and Operational Value Proposition
The Siemens 6SL3111-3VE21-6FC1 COMBI module delivers maximum value in specific,high-performance automation contexts.
Compact Machinery with Multiple Coordinated Axes:It is the ideal solution for OEMs designing machines where cabinet space is at an absolute premium but performance cannot be compromised.Examples include high-speed packaging machines with multiple sealing jaws or feeders,electronic assembly machines with several pick-and-place heads,or advanced laboratory automation equipment.
Cost-Effective Multi-Axis Systems:For applications requiring several axes in the 9-18 A range,using a single COMBI module is typically more cost-effective than procuring and installing three individual drive units.The savings extend beyond the component cost to include reduced engineering time,cabinet fabrication costs,and wiring labor.
Systems Demanding High Synchronization:Since all three axes derive their control from the same physical Multi-axis Drive Module and the same Control Unit,they benefit from extremely precise internal synchronization.This is critical for applications like contouring control,where two or more axes must move in perfect coordination to trace a complex path,such as in cutting,welding,or dispensing applications.
Expanded Perspective:The Strategic Role of Combined Power Modules in System Design
The choice to implement a combined Power Module over discrete units is a strategic decision with far-reaching implications for the machine's design,performance,and lifecycle cost.
1.Comparative Analysis:COMBI Module vs.Discrete Single-Axis Modules
Understanding the trade-offs is key to proper technology selection.
Discrete Single-Axis Modules:Offer maximum flexibility.Each axis is independent,allowing for mixed power ratings,different mounting locations,and individual replacement.This approach is best for systems where axes are physically separated or have vastly different power requirements.
COMBI Multi-axis Drive Module(This Model):Provides superior spatial efficiency,lower total installed cost,and simplified synchronization.It is the preferred choice when multiple axes with similar power needs are co-located and must work in tight coordination.The trade-off is a loss of individual axis flexibility;if one inverter channel fails,the entire module may need to be serviced.
Selection Insight:The 6SL3111-3VE21-6FC1 is not just a component choice but a system architecture choice.It pushes the design toward higher integration,which pays dividends in reduced size,cost,and complexity,provided the axis power requirements align with its 18A+9A+9A configuration.
2.Critical Implementation and Engineering Considerations
Successfully deploying this advanced module requires attention to specific integration details.
Thermal Management and Cabinet Design:While the module has an integrated heatsink,the cabinet's overall thermal design is paramount.The external fan requires a dedicated air path.Designers must ensure sufficient clean,cool intake air and a clear exhaust path to avoid recirculation of hot air,which would degrade performance.
Control Unit and Software Configuration:A compatible Siemens Control Unit with sufficient processing power to handle three coordinated axes is mandatory.Configuration in SINAMICS Startdrive involves setting up the module as a"B11"type and then independently parameterizing each of the three drives—defining motor types,encoder systems,and closed-loop control parameters for each.
Power Supply and Safety Integration:The upstream DC bus supply(Line Module)must be sized to deliver the peak power required by all three axes simultaneously.The integration of Safety Integrated functions must be planned from the start,with safety signals wired to the Control Unit and the relevant function blocks configured and validated in the safety program.
Frequently Asked Questions(FAQs)
What is the primary advantage of a COMBI Power Module over three separate motor modules?
The overwhelming advantage is space and cost efficiency.By integrating three drive channels into one housing with shared cooling,power electronics,and interfaces,it drastically reduces the physical footprint in the control cabinet—often by more than half.This also leads to significant savings in mounting hardware,cabinet wiring,engineering time,and overall component count,lowering the total installed cost of the multi-axis system.
Can the three axes of this module control different types of motors?
Yes,each of the three inverter channels can be independently configured to control different motor types.For example,the 18A axis could drive a synchronous servo motor for a main spindle,while one 9A axis controls an induction motor for a conveyor and the other controls a linear motor for precise positioning.The SINAMICS S120 Control Unit supports a wide range of motor types and control modes for each axis individually.
How does the external cooling system work,and what are its requirements?
The module features a central heatsink with an interface for an externally mounted fan unit.This fan forces ambient air from the control cabinet through the fins of the heatsink,carrying heat away.The critical requirement is that the cabinet provides an adequate supply of cool air(within the specified ambient temperature range)to the fan intake and allows the exhausted hot air to exit the cabinet without being drawn back into the cooling circuit of this or other components.
Is this module suitable for safety-critical applications?
Absolutely.The 6SL3111-3VE21-6FC1 is designed with support for Siemens'Safety Integrated portfolio.This means the hardware is capable of executing safety functions like Safe Torque Off(STO)or Safe Stop 1(SS1)on a per-axis basis.These functions are activated by signals to the Control Unit and are implemented via certified software function blocks,allowing the drive system to contribute directly to achieving the required machine safety performance level(PL)or Safety Integrity Level(SIL).
What happens if one of the three axes within the module fails?
The integrated design means that a serious hardware failure in one part of the Power Module(e.g.,in the shared DC link or control power supply)could potentially disable all three axes.However,the module has extensive diagnostics to identify the specific fault.For servicing,typically the entire COMBI module would be replaced as a unit to minimize machine downtime.This contrasts with discrete modules,where only the faulty unit needs replacement,highlighting the importance of weighing the benefits of integration against service strategy.
