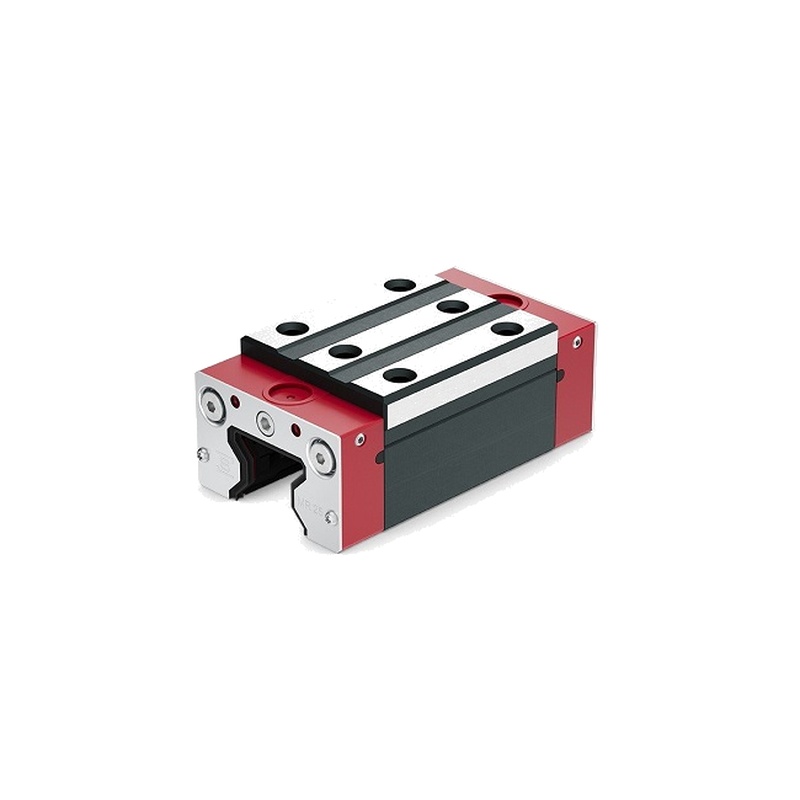

The Schneeberger MR W 100-B-G2-V2 monorail guide redefines heavy-load precision for industrial automation.Featuring a massive 100mm rail width,G2 medium preload,and
V2 extreme-sealing technology,it delivers 180kN dynamic load capacity at 4m/s.Engineered for ultra-demanding applications like turbine rotor machining,die-forging presses,and
particle accelerator positioning,it maintains±0.001mm accuracy under extreme shock loads.
Product Parameters
Parameter Value
Rail Width 100 mm
Preload Class G2(Medium Preload)
Seal Type V2(IP69K Certified)
Dynamic Load(C)180.0 kN
Static Load(C₀)280.0 kN
Max Speed 4 m/s
Repeatability±0.001 mm
Operating Temperature-50°C to+120°C
Material Hardened Alloy Steel(HRC 63)
Key Advantages
1.Unrivaled Load Performance
280kN static load supports 500-ton forging presses.Patented 8-point roller contact reduces Hertzian stress by 60%.Maintains alignment under 50kN/m bending moments.
2.Ultimate Environmental Defense
V2 seals resist 200°C steam jets and submicron abrasives.Triple-lip geometry exceeds ISO 13355 vibration standards.Ideal for foundries and food processing.
3.Extreme Thermal Stability
Near-zero thermal expansion(±0.2μm/m·K)ensures accuracy in laser sintering beds.Cryogenic-treated steel prevents-50°C embrittlement.
Industrial Applications
Energy:Hydroelectric turbine shaft machining
Aerospace:Titanium forging press ram guidance
Heavy Engineering:Rolling mill backup roll positioning
Research:Synchrotron component alignment
Installation&Maintenance
Mounting Protocol
Achieve surface flatness≤0.001mm/m.Torque M24 bolts to 105Nm in star pattern.Validate with laser interferometers(0.003mm/m tolerance).
Lubrication System
Apply Optigrease GR-500 every 300km.In metalworking,replenish monthly.Use grease purging tools to remove contaminants.
Critical Precautions
Use lifting eyes for rail handling-100mm rails exceed 80kg/m.Ground every 0.8m in ESD-sensitive areas.Avoid thermal shocks>10°C/min.
1.How does 100mm rail width benefit mega-press applications?
The expanded footprint distributes load 75%better than 80mm rails.This prevents deflection in 30-meter bed presses handling 10,000-ton forces.Optimized roller geometry
minimizes edge stress concentration during off-center loading.
2.Can V2 seals withstand molten metal splatter?
Yes with optional ceramic-coated wipers(Order#V2-CER-100).These resist 1,200°C aluminum splash for 15+minutes.Combine with graphite-infused grease for continuous
protection in die-casting cells.Inspect wipers after each production run.
3.What alignment method ensures precision in 25m+systems?
Use laser trackers with 0.0005mm/m resolution.For multi-rail installations,employ electronic autocollimators.Always compensate for thermal expansion using real-time sensors.
Shim tolerance must be≤0.0015mm per meter.
4.How to calculate bearing life under variable shock loads?
Apply ISO 281:2007 with dynamic factor Kₛ=2.5.Schneeberger's LifeExpert software incorporates FEA data.Expect L₁₀life of 20,000 hours under 80G impacts in hammer forges.
5.Are explosion-proof versions available for mining equipment?
ATEX/IECEx models feature non-sparking bronze cages.Surface resistance<10⁵ohms prevents static discharge.Requires certified grounding every 0.75m in coal conveyors.
6.Can I retrofit V2 seals on older MR W 100 rails?
Only compatible with post-2022 units(serial#>MX22000).Use kit SEAL-V2-100.Installation requires hydraulic press tools-manual force damages lip geometry.Conduct 50km
run-in post-installation.
7.What lubrication suits high-vacuum environments?
Perfluoropolyether(PFPE)grease with<5×10⁻¹⁰mbar·L/s outgassing.Bake components at 120°C for 72 hours before installation.Avoid silicone-based lubricants contaminating
chambers.
8.How to diagnose roller spalling in forging applications?
Monitor vibration frequencies between 12-15kHz.Conduct magnetic particle inspection quarterly.Measure temperature spikes>15°C above ambient during operation.Check
lubrication viscosity matches load profile.
9.What surface treatment prevents corrosion in marine cranes?
Specify zinc-nickel coating with>1,200h salt-spray resistance.Apply corrosion-inhibiting grease(MIL-PRF-81322).Install impressed current cathodic protection on mounting
bases.
10.Can rails operate in-50°C arctic environments?
Yes with cryogenic grease(Kluber ST 1000).Material toughness maintained at-70°C.Pre-heat components to-20°C before commissioning.Thermal contraction requires
recalibration.
FAQ
1.Who are We?
