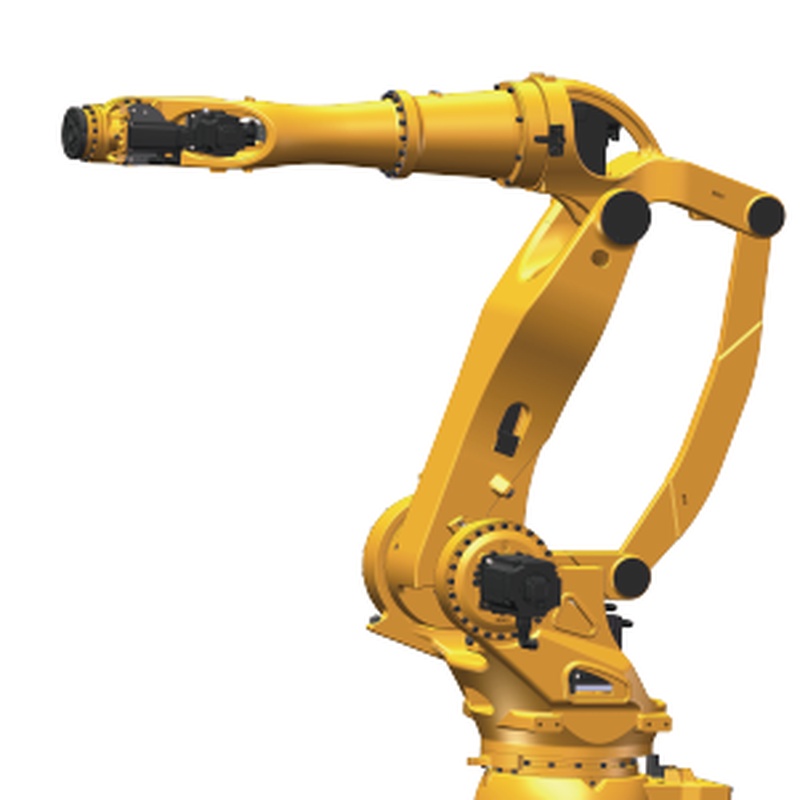

ESTUN ER280-3200 Large Reach Industrial Robot for Material Handling

　　Explore the ESTUN ER280-3200,a powerful Large Reach Industrial Robot designed for heavy Material Handling Robot applications.This article details its 3200mm reach,280kg payload,technical features,and how it solves challenges in palletizing,machine tending,and logistics.

　　Introduction to the ESTUN ER280-3200 Industrial Robot

　　In the world of industrial automation,the ability to move heavy loads across significant distances within a single work envelope is a critical challenge,often solved by a combination of gantry systems,conveyors,and multiple robots.The ESTUN ER280-3200 redefines this paradigm by integrating immense strength with an exceptionally large operational sphere in a single,articulated Material Handling Robot.As a premier Large Reach Industrial Robot,the ER280-3200 is engineered for applications where payload capacity exceeding 200kg and a reach beyond 3 meters are non-negotiable requirements.This 6-axis articulated robot,with its 280kg payload and 3200mm reach,represents a sophisticated solution for sectors like automotive component handling,heavy palletizing in building materials,and large-scale foundry operations,offering unparalleled flexibility and strength where it matters most.

　　Understanding Articulated Robots for Heavy Material Handling

　　Before delving into the specifics of the ER280-3200,it’s essential to understand its category:the 6-axis articulated industrial robot.Unlike Cartesian or SCARA robots,articulated robots mimic the human arm with rotating joints,offering maximum dexterity within a spherical work volume.When scaled to the size and capacity of the ER280-3200,this design philosophy translates into a machine capable of complex,heavy-duty trajectories.In material handling,this means not just lifting and placing,but also performing precise insertions,angled placements(like stacking pallets with overhang),and reaching into deep containers or around obstacles—tasks impossible for simpler linear actuators.This type of robot becomes the centerpiece of a flexible automation cell,adaptable to changing production needs through reprogramming rather than mechanical reconfiguration.

　　Technical Highlights&Design Philosophy of the ER280-3200

　　The ESTUN ER280-3200 is built on a philosophy of"robust reach."Every component is optimized for stability and longevity under high dynamic loads.

　　The Significance of a 3200mm Reach:A reach of 3.2 meters is substantial.It allows a single robot to cover a large palletizing area(e.g.,multiple pallet positions),service several large machine tools from a central location,or load/unload long and bulky components from a conveyor or AGV.This reduces the need for additional robots or complex and expensive part transfer systems,consolidating workflow and minimizing floor space requirements.

　　Engineering for a 280kg Payload:Handling 280kg at full extension demands an incredibly rigid mechanical structure and powerful,precisely controlled servo motors.The robot’s arm is constructed from high-strength castings and alloys to minimize deflection during high-speed movement with heavy loads.This ensures consistent positioning accuracy,which is crucial for tasks like placing engine blocks onto a production line or stacking heavy sacks precisely.

　　IP54 Protection for Harsh Environments:The IP54 rating is a key feature for a robot in material handling.It signifies protection against dust ingress(level 5)and water splashes from any direction(level 4).In environments like cement bag palletizing,metal stamping,or outdoor-adjacent logistics hubs,this protection safeguards critical components like joints and motors from particulate abrasion and moisture,ensuring reliable operation and reducing maintenance downtime.

　　Primary Applications&Industry Solutions

　　The ER280-3200 excels in scenarios where size,weight,and reach converge.

　　Automotive&Heavy Machinery:Handling large body-in-white components,transferring engines and transmissions,and loading/unloading massive CNC machining centers for frames or axles.

　　Building Materials&Logistics:High-speed palletizing of bags of cement,fertilizer,or pet food onto Euro or block pallets.It can also de-palletize heavy slabs of stone,glass,or composite panels.

　　Metal Casting&Forging:Picking hot,heavy metal parts from dies or molds and transferring them to trimming or cooling stations.Its reach allows it to service large press lines effectively.

　　Tire Manufacturing:Handling and positioning large truck and OTR(Off-the-Road)tires throughout the curing and inspection processes.

　　Competitive Advantages:Beyond Strength and Reach

　　While its specifications are impressive,the true value lies in its holistic design:

　　Optimized Footprint-to-Reach Ratio:It achieves a vast work volume from a relatively compact base footprint,preserving valuable factory floor space.

　　High Inertia Management:Advanced control algorithms allow it to smoothly accelerate and decelerate massive loads,preventing load swing and ensuring cycle time efficiency without compromising safety or accuracy.

　　Integration Readiness:Designed to work seamlessly with ESTUN’s own servo systems and controllers,as well as third-party peripherals like heavy-duty grippers,vacuum systems,and vision guidance,simplifying system integration.

　　Model Specifications at a Glance

　　Parameter Specification

　　Model ESTUN ER280-3200

　　Robot Type 6-Axis Articulated Industrial Robot

　　Maximum Payload 280 kg

　　Maximum Reach 3200 mm

　　Repeatability Typically±0.2 mm(confirm with official datasheet)

　　Degree of Protection IP54

　　Mounting Floor mounted

　　Applications Heavy Palletizing,Machine Tending,Material Transfer,Loading/Unloading

　　Expanding Your Knowledge:Key Q&A on Large Reach Heavy-Duty Robots

　　Q1:What are the main safety considerations when deploying a large,heavy-payload robot like the ER280-3200?

　　Safety is paramount.The first consideration is risk assessment and physical safeguarding.A robot of this size and power requires robust perimeter fencing,interlocked safety gates,and light curtains or laser scanners to create a safeguarded space.Due to its long reach,the entire massive work envelope must be secured.Second,functional safety integrated into the control system is crucial.This involves safety-rated monitored stop(SMS),speed and position monitoring(SSM,SP),and potentially safe limited speed(SLS)functions.These are implemented via safety PLCs or dedicated safety controllers that can instantly halt motion if a person is detected in the danger zone.Finally,tooling and load security is a specific risk.The end-effector(gripper,vacuum head)must be rated for more than the payload with a significant safety factor.Redundant clamping or vacuum sensors with safety feedback are essential to prevent a 280kg load from being dropped,which could be catastrophic.

　　Q2:How does the total cost of ownership(TCO)for such a robot compare to alternative solutions like overhead cranes or manual labor?

　　The initial investment in an ER280-3200 and its integration is significant.However,its TCO often proves advantageous over time.Compared to overhead cranes,the robot offers vastly superior speed,precision,and programmability.A crane requires a skilled operator for every cycle and is limited in path complexity.The robot works autonomously 24/7,with consistent cycle times,leading to much higher throughput and freeing personnel for higher-value tasks.Against manual labor,the benefits are in capacity,consistency,and safety.Humans cannot safely and repeatedly handle 280kg loads,leading to high injury risk,fatigue,and variable output.The robot eliminates these risks,ensures unwavering quality,and operates continuously without breaks.The TCO calculation must factor in increased production output,reduced product damage,lower energy costs compared to running large cranes,and significant savings from avoided workplace injuries.

　　Q3:Can a robot with this large reach maintain high precision when handling a heavy load at full arm extension?

　　This is a core engineering challenge.The answer lies in the robot’s mechanical design and control system.Mechanically,the arm structure is designed for maximum rigidity using finite element analysis(FEA)to optimize the geometry and materials,minimizing bending and torsional flex under load.High-precision gearboxes(often strain-wave or RV types)in each joint minimize backlash.In terms of control,the servo drives use high-resolution encoders for precise position feedback.The controller runs advanced algorithms that compensate for factors like arm deflection due to load and gravity.This is often called"payload compensation"or"gravity compensation."While absolute positional repeatability might see a slight variance between no-load and full-load at full extension,the repeatability—the ability to return to the same taught point under the same conditions—is what matters for automation and is kept within tight tolerances(e.g.,±0.2mm).

　　Q4:What types of end-effectors(grippers/tools)are suitable for a 280kg payload,and how are they powered and controlled?

　　End-effectors for this class of robot are highly specialized.Common types include hydraulic parallel grippers for clamping heavy irregular parts like metal blocks,custom mechanical jaw grippers with leverage mechanisms for specific shapes,and high-capacity vacuum systems with multiple large suction cups for handling flat sheets or bags.Power and control are critical.Hydraulic grippers require an external hydraulic power unit with precise pressure control.Vacuum systems need large ejectors or pumps.All require robust tool flange adapters and utility connections.The robot’s wrist typically features a pass-through for air/oil/electrical lines.Control is via the robot’s I/O or a dedicated PLC,which communicates with sensors on the gripper(pressure switches,vacuum sensors,position sensors)to confirm successful part acquisition and release,forming a closed-loop safety and process control system.

　　Q5:How does the performance of a large robot like this impact the design of the surrounding automation cell and factory layout?

　　Integrating an ER280-3200 fundamentally shapes the cell design.First,foundation requirements are critical.It may need a specific reinforced concrete foundation to dampen vibrations and ensure long-term positional stability.Second,part presentation must match its reach and cycle time.Large conveyors,roller beds,or AGV docking stations must be positioned to place parts within the robot’s optimal working zone to minimize non-productive long-axis movements.Third,peripheral equipment like pallet dispensers,stretch wrappers,or machine tool doors must be synchronized via a central controller(often a PLC that coordinates with the robot controller).Finally,maintenance access is a key layout consideration.Ample space must be left around the robot for technicians to service joints,replace gears,or access utilities,which influences the overall footprint of the cell beyond just the robot's work envelope.
