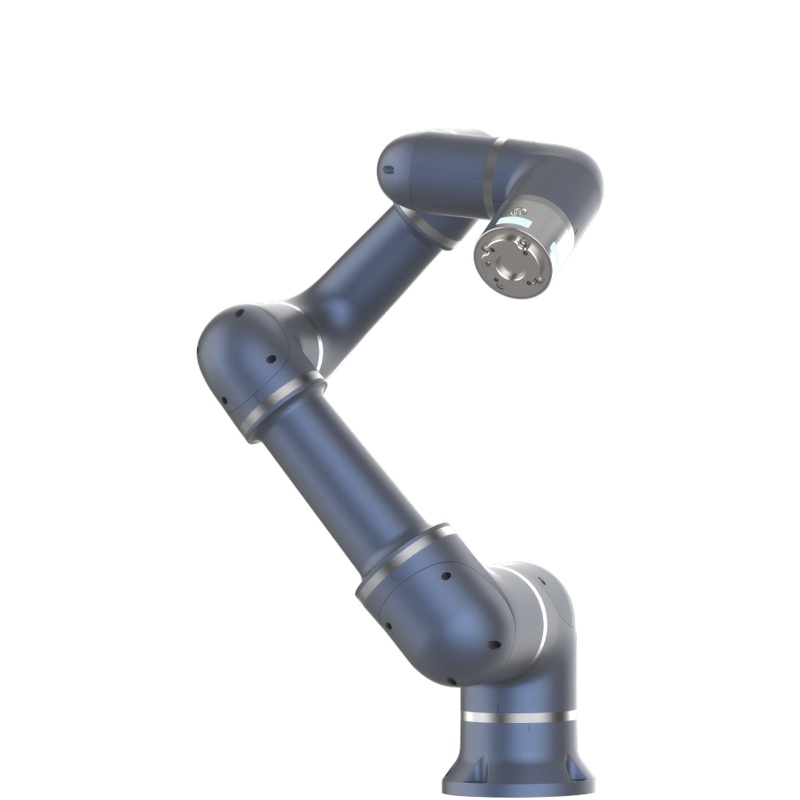

The ESTUN S7-80 Eco is a cutting-edge 6-axis collaborative robot specifically engineered to meet the high-speed and high-precision demands of the electronics manufacturing
sector.With a 7 kg payload and an 800 mm reach,this collaborative robot integrates advanced motion control with collaborative safety,enabling it to operate as a versatile cobot on
modern assembly lines.It is designed for intricate tasks such as PCB assembly,delicate part testing,and precision dispensing while maintaining industrial-grade repeatability.
ESTUN S7-80 Eco Technical Specifications
For engineering teams evaluating automation equipment,the S7-80 Eco offers a superior speed profile compared to standard collaborative robots,ensuring competitive cycle
times close to traditional industrial automation.
Model:S7-80 Eco(6-Axis Collaborative Robot)
Payload Capacity:7 kg(15.43 lbs)
Maximum Reach:800 mm(31.50 in)
Repeatability:±0.03 mm
Maximum Tool End Speed:3.0 m/s
Weight:Approximately 24 kg
Protection Rating:IP54
Axis Speed(Max):J1/J2 173°/s,J3 208°/s,J4/J5/J6 297°/s
Joint Range:J1/J2/J4/J5/J6±360°,J3±160°
I/O Interface:16 DI,16 DO,4 AI,4 AO
Communication:Modbus TCP,RS485,TCP/IP,EtherCAT optional
Secondary Development:C#,C++,Python,Remote Script API
Key Features and Technical Advantages
Enhanced Speed and Cycle Efficiency
The S7-80 Eco is engineered with optimized axis speeds,allowing wrist axes to reach up to 297°/s.This enables rapid orientation changes and high-speed motion essential for
electronics manufacturing lines with high throughput requirements.
Industrial-Grade Precision
High-resolution 20-bit absolute encoders combined with advanced kinematic compensation technology allow the robot to maintain a repeatability of±0.03 mm.This precision
ensures reliable handling of fine-pitch components and small fasteners while minimizing defect rates.
Simplified Integration and Programming
The robot uses a graphical user interface that allows new users to master basic programming quickly.For advanced integration,it supports programming via Python,C++,and
C#.The hand-guiding teaching mode enables operators to physically guide the robot to record motion paths,reducing commissioning time.
Advanced Safety and Force Control
The S7-80 Eco complies with EN ISO 13849-1 PLd Cat.3 safety standards.Integrated torque sensors on all axes support force-controlled operations,allowing sensitive tasks such
as insertion and polishing while ensuring immediate stops upon unexpected contact.
Targeted Application Scenarios
Electronics assembly tasks including high-speed pick and place of micro-components and connector assembly.
Automated testing involving precise positioning of probes and sensors for circuit testing and optical inspection.
Dispensing and coating processes requiring constant speed and precise height control for adhesives and protective coatings.
Screw driving applications where integrated torque monitoring ensures consistent fastening quality.
Operation and Maintenance Guidelines
Setup and Installation
Install the robot on a rigid,vibration-free structure.The S7-80 Eco supports floor,wall,and ceiling mounting configurations.Ensure the controller cabinet is placed in a ventilated
environment and that all cables are routed safely to prevent mechanical stress.
Daily Operation
Before operation,confirm the emergency stop and enable switches are functioning properly.Use collaborative speed modes when working near personnel and activate
high-speed modes only when the workspace is secured or monitored by external safety systems.
Maintenance and Care
Conduct visual inspections of joints and cables every 500 operating hours.Check for signs of grease leakage or abnormal temperature rise.Always disconnect power before
maintenance.Regularly back up program data to cloud or local storage to avoid data loss.
Frequently Asked Questions
What is the difference between the ESTUN S7-80 Eco and the Pro version?
The Eco version is optimized for cost-effective deployment in standard industrial environments,while the Pro version typically offers enhanced internal components or higher
protection ratings for specialized applications.Both versions share the same payload and reach.
Can the ESTUN S7-80 Eco be programmed using Python?
Yes,the robot supports secondary development using Python,C#,and C++through a Remote Script API,allowing advanced customization for complex automation requirements.
Is the S7-80 Eco suitable for fence-free operation?
The robot is certified for collaborative use and includes adjustable collision detection and torque sensing.A site-specific risk assessment is still required based on the application
and end-effector.
What are the power requirements for the S7-80 Eco?
The controller operates on single-phase 100 to 240 V AC at 50/60 Hz,enabling global deployment without special power infrastructure.
How does the S7-80 Eco achieve high precision?
Precision is achieved through high-resolution encoders and factory kinematic calibration,ensuring accurate tool center point control with±0.03 mm repeatability.
What mounting options are supported?
The robot supports floor,wall,and ceiling mounting.Gravity compensation is automatically adjusted in software based on the installation orientation.
Does the ESTUN S7-80 Eco support vision systems?
The robot can be integrated with ESTUN or third-party vision systems for part recognition,inspection,and guidance tasks in dynamic environments.
What maintenance is required?
Routine maintenance includes inspection of cables,joints,and seals,along with periodic brake checks and software updates.Remote monitoring tools help reduce unplanned
downtime.
Can third-party grippers be used?
The robot features a standard ISO 9409-1-50-4-M6 flange and provides I/O and power at the tool end,supporting a wide range of pneumatic and electric grippers.
How does the S7-80 Eco compare to traditional industrial robots?
The S7-80 Eco delivers speeds close to traditional industrial robots while retaining collaborative safety and ease of deployment,making it a hybrid solution for high-speed,
human-interactive applications.
