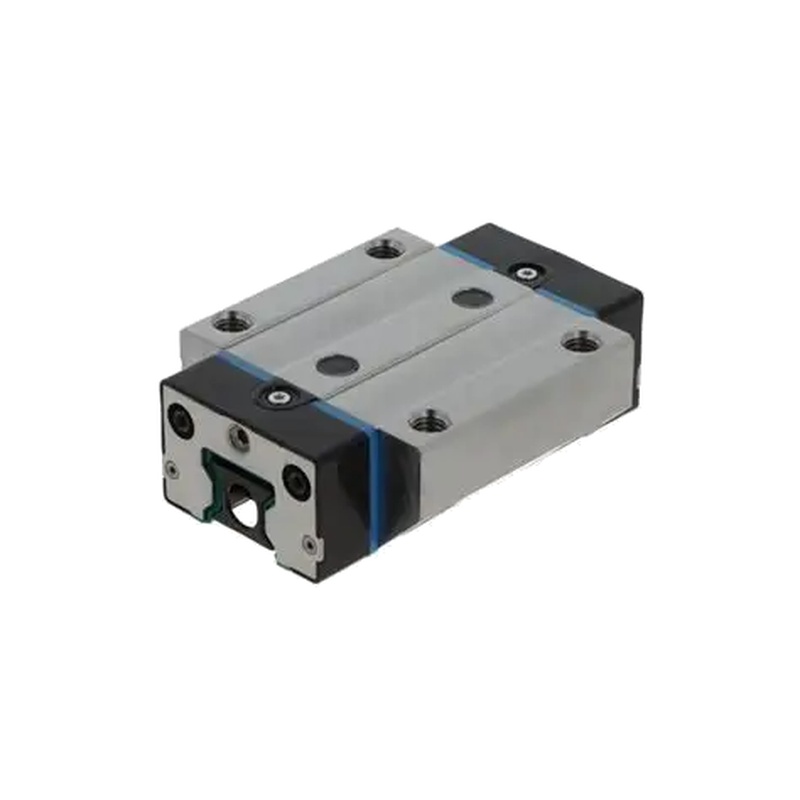

The SCHNEEBERGER BMW W 35-A-G2-V2 linear guide features a 35mm rail width with industrial-grade A-type sealing for extreme contamination environments.Engineered for
mining,steel mills,and wood processing,it delivers 55.6kN static load capacity and±0.002mm repeatability using G2 precision geometry and V2 rigidity enhancements.Operators
frequently search for high-load dust-proof rails,mining equipment guides,and replacement carriages.
Product Parameters
Parameter Value
Rail Width 35 mm
Seal Type A(Heavy Contamination)
Generation G2(Optimized Geometry)
Version V2(Rigidity Enhanced)
Dynamic Load(C)42.8 kN
Static Load(Co)55.6 kN
Preload Class Medium(P2)
Accuracy Grade Normal(N)
Seal Layers Triple-Lip+Scraper
Operating Temperature-30°C to+100°C
Corrosion Protection Black Oxide Coating
Key Features&Advantages
1.Heavy-Duty Sealing(A-Type)
Triple-lip seals and integrated scrapers block wood chips,metal shavings,and silica dust.Field tests show 3x longer life than standard seals in quarry conveyors.
2.V2 High-Rigidity Design
Reinforced end caps and thicker rail walls increase moment capacity by 25%.Critical for vibrating screens handling 50-ton/hour loads.
3.G2 Friction Reduction
Asymmetric ball grooves cut drag force by 18%at 2m/s speeds.Reduces energy costs in automated lumber handling systems.
Industrial Applications
Mining Crushers:Withstands rock dust at 10g/m³concentrations
Steel Rolling Mills:Endures scale accumulation and 800°C radiant heat
Wood CNC Routers:Immune to resin buildup and chip infiltration
Installation&Maintenance
Mounting Procedure:
Degrease surfaces with alkaline cleaners(pH 9-11).
Align rails within±0.015mm/m using SCHNEEBERGER’s DUST-ALIGN jig.
Torque M10 bolts to 32 Nm in cross pattern.
Maintenance Protocol:
Apply Kluberplex BEM 41-132 grease every 500 hours
Clean wipers monthly with soft brushes
Replace scrapers after 250km travel
Critical Warnings:
Never expose to water jets(seals aren’t waterproof)
Limit impact shocks to<10%of static load
Ground equipment near welding stations
Q1:How does this handle explosive dust environments?
Combine with SCHNEEBERGER’s ATEX kit(order code EX-35A).Use conductive grease to prevent static discharge.Maintain surface resistance below 10<sup>6</sup>
ohms.Never install near ignition sources.
Q2:What lubrication works in high-sawdust woodworking?
Choose tacky EP2 grease like Mobilith SHC 460.Its fibrous structure traps particles.Apply via zerk fittings every 200 operating hours.Avoid low-viscosity oils-they attract dust.
Q3:Can I use these on vibrating screens with 5g acceleration?
Yes,when mounted with SCHNEEBERGER’s VS-35 dampers.Limit stroke to±3mm at 25Hz.Secure cables with strain relief clamps.Check bolt torque weekly.
Q4:How to clean resin-clogged carriages?
Soak in methyl ethyl ketone(MEK)for 20 minutes.Scrape gently with brass tools.Rinse with compressed air at 0.3MPa max.Replace seals if hardened.
Q5:What causes premature wiper detachment?
Excessive side loads above 15kN shear adhesive.Install lateral guides on long strokes.Check frame rigidity-deflection>0.1mm/m strains seals.
Q6:Are these compatible with magnetic encoders?
Only non-magnetic versions(suffix-NM).Keep scales 2mm from rail surfaces.Shielding required near VFD cables above 10A current.
Q7:How to retrofit older conveyors without frame machining?
Use SCHNEEBERGER’s ADAPT-35 shim system.Compensates for±1.5mm misalignment.Always recalibrate encoder references post-installation.
Q8:What’s the temperature limit near foundry equipment?
Install thermal shields for ambient above 80°C.Localized radiant heat must stay below 120°C.Use infrared thermometers for spot checks.
Q9:Can I submerge these in coolant sumps?
Not recommended.A-seals aren’t liquid-tight.For sump applications,specify IP67-rated W 35-S-G2-V2 models with submersible seals.
Q10:How to calculate service life under 30-ton loads?
Use SCHNEEBERGER’s LifeCalc Pro with contamination factor 5.Expect 40,000 hours at 0.5m/s.Monitor vibration-replace at 7mm/s RMS.
