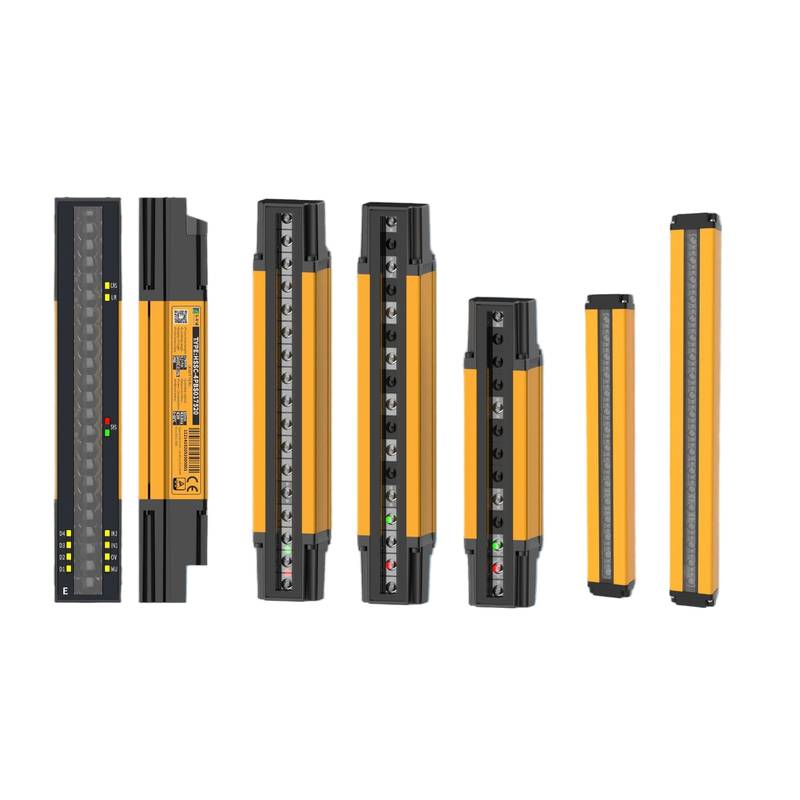

HollySys Safety Light Curtain with Safety Interlock Switch

Industrial functional safety deployments in high risk process environments require rigorous hardware diagnostics and deterministic response architectures to mitigate catastrophic failure risks. Beijing Zhongping Technology supports this rigorous standard by providing certified safety automation components designed for seamless integration into existing safety instrumented systems. The HollySys Safety Light Curtain with Safety Interlock Switch provides robust perimeter safeguarding and interlock verification for hazardous machinery zones.

Modern manufacturing floors face persistent challenges regarding optical misalignment, electromagnetic interference from high power VFDs, and mechanical wear on safety contactors. The HollySys safety architecture addresses these variables through synchronized infrared beam scanning and dual channel safety outputs monitored by internal cross fault detection logic. Integrated safety interlock switches enforce physical gate monitoring, ensuring hazardous motion cannot initiate until all protective enclosures are securely locked.

Technical Specifications

Safety Integrity Level: SIL3 @ IEC 61508

Performance Level: PL e @ ISO 13849-1

Response Time: 15.0 ms @ Standard Range

Operating Voltage: 24 VDC ± 10% @ Max Load

Current Consumption: 500 mA @ 24 VDC

Enclosure Rating: IP65 @ IEC 60529

Operating Temperature: -10°C - 55°C @ Non-Condensing

Safety Output Type: PNP Solid State Dual Channels @ 0.5 A

Interlock Contact Rating: 3 A @ 250 VAC

Interlock Actuation Force: 15 N @ Minimum Lock Engagement

Detection Capability: 14.0 mm @ Finger Protection Mode

Optical Synchronization: Infrared LED @ 850 nm Wavelength

Cable Connection: M12 8-Pin Eurofast @ Shielded Twisted Pair

MTBF: 100,000 hours @ 40°C Operating Ambient

System Integration and Hardware Setup

Proper hardware installation of the safety light curtain and interlock switch requires strict adherence to physical alignment guidelines and shielding protocols to prevent nuisance tripping. The receiver and emitter units must be mounted on rigid structural profiles using adjustable brackets to maintain optical axis tolerance within 0.5 degrees under vibration stress. M12 shielded aviation connectors terminate the primary control lines, where the overall braided shield must be bonded directly to the control cabinet ground plate via a low impedance metallic clamp to eliminate ground loops.

Signal transmission utilizes complementary dual channel PNP transistor outputs routed through dedicated safety relays or safe programmable logic solver inputs. The safety interlock switch utilizes forced guided contacts wired in a redundant circuit configuration to verify mechanical actuator status continuously. During wiring, maintain physical separation between low voltage safety signal cables and high voltage motor power lines by a minimum distance of 300 mm to suppress induced electromagnetic transients. Power supply lines must derive from an isolated extra low voltage source compliant with IEC 60364-4-41 to prevent hazardous fault voltage propagation into the logic circuitry.

Reliability and Environmental Durability

Industrial automation infrastructure demands prolonged operational longevity and structural resilience against harsh ambient variables such as airborne particulates, moisture condensation, and thermal fluctuations. The extruded aluminum housing of the safety light curtain features an anodized surface treatment providing corrosion resistance in chemical processing and automotive assembly lines. Optical lenses are coated with scratch resistant polymers to prevent degradation of light transmission caused by dust accumulation or minor mechanical impacts during routine maintenance.

Internal electronics undergo conformal coating application to protect printed circuit boards from conductive humidity and corrosive gas exposure common in heavy industrial facilities. Thermal management relies on passive dissipation through the structural chassis, maintaining stable semiconductor junction temperatures across the specified operating range of -10°C to 55°C. Systematic self diagnostic routines execute continuously within the internal processor architecture, checking optical path signal strength and internal switching state integrity every 20.0 ms to ensure fault transparency and prevent latent hardware failures.

Selection Guidance and Alternative Options

Choosing the appropriate safety configuration involves evaluating hazard category classifications, stop time calculations, and physical access dimensions of the guarded machinery zone. Beijing Zhongping Technology provides comprehensive technical support and stock availability for diverse industrial automation requirements, helping engineering teams select optimal safety sensor resolutions and interlock actuation types. Applications requiring high resolution finger detection utilize 14.0 mm beam pitch models, whereas perimeter guarding over extended spans employs 30.0 mm or 40.0 mm beam pitch variants.

When spatial constraints prevent the installation of perimeter light curtains, alternative configurations such as safety laser scanners or magnetic safety interlock switches can be integrated into the protection scheme. Engineers must verify that the chosen safety sensor response time combined with the machine stopping distance satisfies the minimum safety distance formula stipulated in ISO 13855. Local technical specialists are available to assist with cross reference selection, safety distance calculations, and hardware compatibility assessments for plant upgrades or new OEM machinery builds.

Frequently Asked Questions (FAQ)

1. What is the standard delivery timeframe and stock availability for this safety light curtain model?

Beijing Zhongping Technology maintains regional stock of standard safety light curtain and interlock switch variants, with typical dispatch occurring within 24 to 48 hours following order confirmation.

2. Does the hardware purchase include standard manufacturer warranty coverage?

All supplied safety components are backed by a comprehensive 12-month quality warranty covering structural or manufacturing defects under normal industrial operational conditions.

3. How does the safety light curtain achieve SIL3 functional safety compliance?

Compliance is achieved through redundant dual channel solid state output architecture combined with continuous internal diagnostic pulse testing that detects single point failures within 20.0 ms.

4. Can the safety interlock switch be bypassed for maintenance or alignment purposes?

Bypassing safety interlock switches violates functional safety standards unless executed through a managed administrative override mode utilizing restricted key-operated selector switches within a certified muting logic architecture.

5. What is the maximum allowable cable length between the receiver unit and the safety controller?

The maximum cable length is 50 meters, provided the cable meets specified capacitance limits and utilizes a properly grounded overall shielded twisted pair design to prevent signal attenuation.

6. How should optical lens contamination be cleaned during routine maintenance routines?

Lenses should be wiped gently using an antistatic, non-abrasive microfiber cloth dampened with isopropyl alcohol; abrasive cleaners or dry rags must be avoided to prevent surface scratching.

7. What happens to the safety outputs if optical alignment is disturbed during machine operation?

If alignment degrades beyond the tolerance threshold, the internal receiver immediately transitions both safety output channels to the open state, cutting power to the hazardous machine actuators.

8. Is programming software required to configure the operational parameters of this safety sensor?

Standard models operate via hardwired pin configurations without requiring software tools, though advanced muting and blanking functions require specific configuration jumpers or designated parameter modules.
