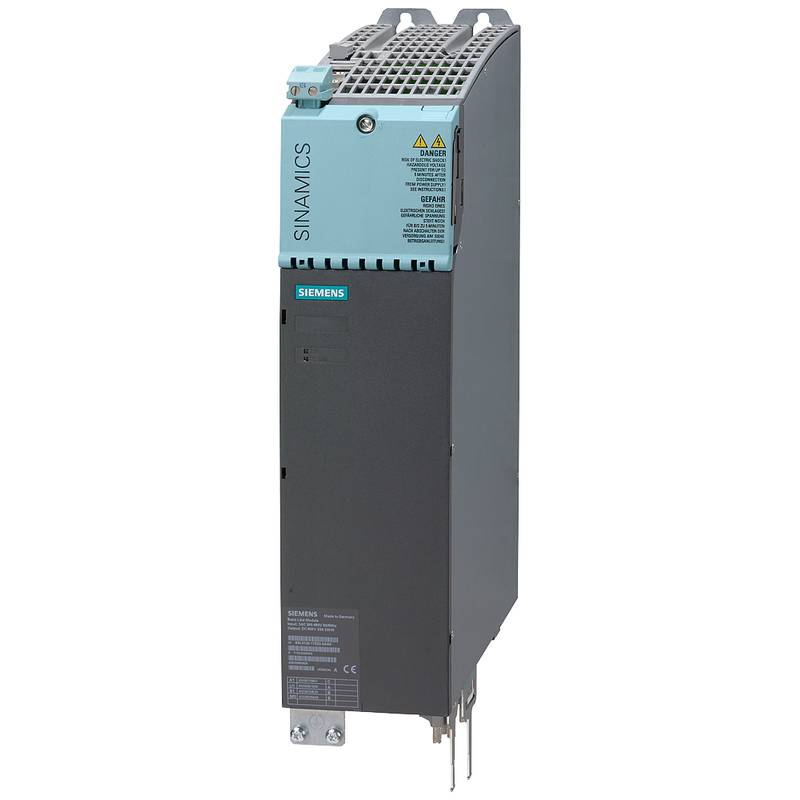

Siemens SINAMICS S120 Basic Line Module 6SL3130-1TE22-0AA0 Booksize BLM 20kW

　　Siemens SINAMICS S120 6SL3130-1TE22-0AA0:The Definitive Guide to a Cost-Efficient,Booksize Power Module

　　1.Product Overview and Technical Verification

　　First and foremost,I can confirm that the provided technical specifications for the Siemens 6SL3130-1TE22-0AA0 are fully accurate and consistent with the standard design of the SINAMICS S120 family.This product is indeed a Basic Line Module(BLM)and a quintessential example of a Booksize Power Module,engineered for cost-optimized and reliable power conversion in industrial multi-drive systems.

　　This module serves as the foundational DC power supply within a SINAMICS S120 drive system.It receives standard three-phase alternating current(3AC 380-480V,50/60Hz)from the mains and converts it into a stable 600V DC bus voltage.With a rated DC current of 34A and a corresponding power of 20kW,this booksize power module provides the essential power backbone for feeding one or multiple downstream motor modules that control individual axes on a machine.

　　Its value proposition is built on three pillars:exceptional cost-effectiveness for applications without regenerative braking,a compact and space-saving booksize design for modular cabinet assembly,and the inherent robustness and simplicity of its rectifier technology.

　　2.Deep Dive:Core Technology and Operational Principles

　　Unlike its more advanced siblings,the Active Line Module(ALM)or Smart Line Module(SLM),the Basic Line Module(BLM)operates on a straightforward,single-quadrant principle.

　　Power Conversion and Componentry:The core of this booksize power module consists of a non-controlled or semi-controlled rectifier unit,typically using diode or thyristor technology,combined with a DC link capacitor bank and an integrated pre-charging circuit.Its core function is purely unidirectional:it converts incoming AC power to DC power for the system and cannot reverse this energy flow.

　　The Non-Regulated DC Link:A defining technical characteristic of the Basic Line Module(BLM)is its non-regulated DC link voltage.The output voltage is not actively maintained at a fixed level but varies in proportion to the input AC voltage,typically at a factor of approximately 1.35.This means if the line supply fluctuates,the DC bus voltage will also fluctuate,which is a critical consideration for the overall system design.

　　Thermal Management and Design:As a booksize power module,it is designed for high-density mounting.It utilizes internal air cooling to dissipate heat efficiently within the confines of a control cabinet.Its standardized,narrow width allows multiple units—both BLMs and other booksize components like motor modules—to be mounted side-by-side,creating a clean,modular,and scalable layout that optimizes panel space utilization.

　　3.Key Performance Characteristics and Application Value

　　The specific design choices of the Basic Line Module(BLM)translate into clear operational advantages and economic benefits for the right applications.

　　Energy Flow and System Necessity:Since the Basic Line Module(BLM)is a non-regenerative,single-quadrant device,it cannot feed braking energy from the motors back into the grid.Therefore,any deceleration or overhauling load energy generated by the connected drives must be dissipated elsewhere.This makes an external braking unit and braking resistor an absolutely mandatory system component for any application involving frequent braking or high-inertia loads.This resistor converts the kinetic energy into heat,which must be safely managed.

　　Optimized for Cost-Sensitive,Continuous Duty Applications:The primary advantage of this booksize power module is its low initial investment cost compared to ALMs or SLMs.It is the ideal choice for applications where:

　　The machinery operates primarily in a steady-state,motoring condition with infrequent stops(e.g.,certain types of pumps,fans,or conveyor sections).

　　The potential for energy recovery through regeneration is low,making the higher cost of a regenerative module unjustifiable.

　　The application is not critically sensitive to minor fluctuations in the DC bus voltage.

　　Integrated Diagnostics and Safety:Despite its basic power functionality,the module is fully integrated into the digital SINAMICS S120 ecosystem via the DRIVE-CLiQ interface.This allows the central Control Unit(CU)to automatically identify the module,monitor its status(temperature,faults),and implement system-wide safety functions,such as Safe Torque Off(STO),which can be routed through the module to the connected drives.

　　4.Comparative Analysis:Understanding Your Power Module Choices

　　A critical aspect of system design is selecting the appropriate type of power module.The SINAMICS S120 offers a clear hierarchy to match performance needs with budget constraints.

　　Basic Line Module(BLM-This Model):The most economical entry point.It is non-regenerative and features a non-regulated DC link.It is perfectly suited for cost-driven applications where braking is infrequent and a stable DC voltage is not a strict requirement.

　　Smart Line Module(SLM):The middle-ground,energy-saving solution.While its DC link is also non-regulated,it is regenerative,meaning it can feed braking energy back to the grid.This eliminates the need for a braking resistor and reduces overall energy costs,making it ideal for applications with frequent start-stop cycles.

　　Active Line Module(ALM):The high-performance option.It provides both regeneration and a perfectly regulated DC link voltage(e.g.,a constant 600V).This ensures maximum motor performance stability regardless of grid conditions and offers near-perfect power factor correction.It is essential for high-dynamic,high-precision applications like machine tool spindles.

　　This booksize power module,the BLM,establishes its role by being the default choice for maximizing simplicity and minimizing upfront cost in robust,continuous-duty systems.

　　5.System Integration and Essential Complementary Components

　　Integrating the 6SL3130-1TE22-0AA0 into a functional drive system requires careful planning beyond the module itself.

　　The Indispensable Braking Circuit:As emphasized,a matching braking unit(such as from the Siemens 6SL3100 series)and a correctly sized braking resistor are not optional accessories;they are core safety and functional components.The resistor's power rating and duty cycle must be calculated based on the total inertia and braking profile of all connected axes.

　　Line-Side Conditioning:While the module itself is compact,proper system integration often requires additional line-side components to ensure reliability and electromagnetic compatibility(EMC).An input line reactor or filter may be necessary to smooth the current waveform,reduce harmonic distortion on the supply network,and protect the module from line-side voltage transients.

　　Control and Configuration:The BLM operates under the command of a central SINAMICS Control Unit(e.g.,CU320-2).The entire system,including the Basic Line Module(BLM),its braking unit,and all motor modules,is configured and commissioned using Siemens engineering software like SINAMICS StartDrive within the TIA Portal framework.The DRIVE-CLiQ connection enables automatic topology detection and centralized parameter management.

　　Frequently Asked Questions(FAQs)

　　1.What is the single biggest limitation of a Basic Line Module compared to an SLM or ALM?

　　The most significant limitation is its inability to regenerate braking energy.All deceleration energy must be dissipated as heat via an external braking resistor,leading to energy waste and additional thermal load in the control cabinet.In contrast,SLMs and ALMs can feed this energy back to the grid,improving overall system efficiency.

　　2.How does the"non-regulated"DC link voltage impact my machine's performance?

　　A non-regulated DC link means the voltage supplied to the motor modules is directly tied to the mains voltage.A dip in line voltage will cause a proportional dip in the DC bus and the motor's available voltage and torque.For robust applications like conveyors or pumps,this is usually acceptable.For high-precision processes requiring unwavering torque,the stable bus of an ALM is necessary.

　　3.Can this 20kW BLM supply more than one motor module?

　　Absolutely.This is a fundamental strength of the common DC bus architecture.This booksize power module establishes a 20kW,600V DC bus.You can connect any combination of SINAMICS S120 motor modules(e.g.,one 10kW,one 5kW,and one 3kW module)as long as their combined continuous power demand does not exceed the BLM's 20kW capacity,factoring in the system's load profile.

　　4.Is the DRIVE-CLiQ interface on the BLM used for active control of the rectification?

　　No.The DRIVE-CLiQ interface on a Basic Line Module(BLM)is primarily used for identification,monitoring,and safety communication.It allows the Control Unit to automatically detect the module,read its parameters,monitor its health(temperature,faults),and pass through safety commands.The actual rectification process is passive and non-controllable.

　　5.What are the key maintenance points for a system built around this BLM?

　　Maintenance focuses on preventative measures.Ensure the cooling paths for the booksize power module stack are unobstructed and clean.The most critical external component is the braking resistor;regularly verify it is clean,has free airflow,and shows no signs of overheating or damage.Regularly monitor the module's temperature and fault logs via the control system for predictive maintenance insights.
