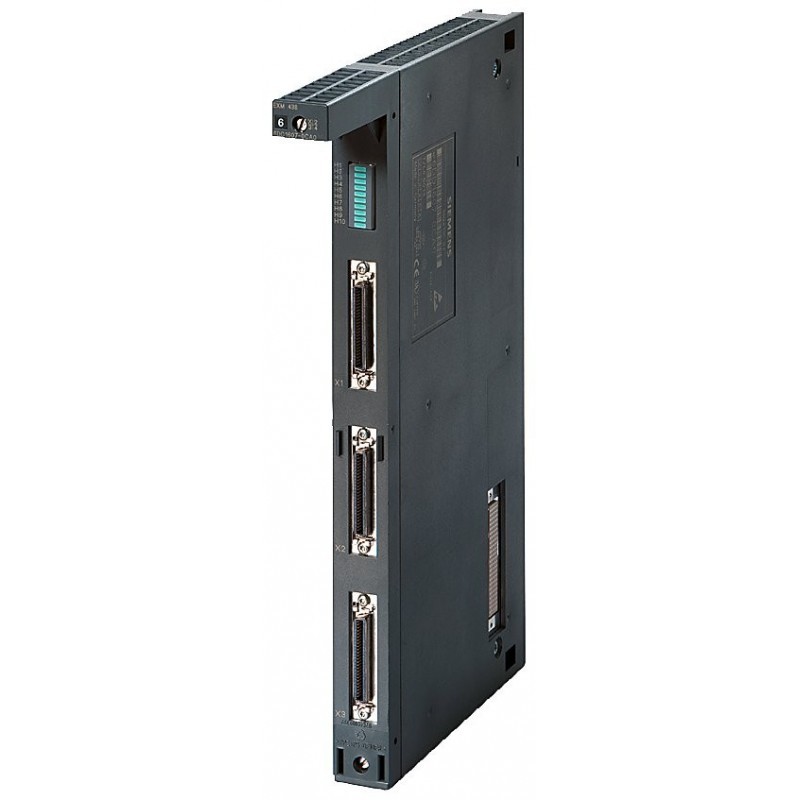

Siemens 6DD1607-0AA2 High-Performance PLC Application & Control Module

　　Siemens order number 6DD1607-0AA2 is a specific variant of the SIMATIC S7-400 FM458-1 DP application module.Unlike a standard CPU,it is a specialized high-speed function module engineered to offload and handle time-critical,computationally intensive tasks within the S7-400 PLC system.This module excels in scenarios where standard processor scan times fall short,acting as a dedicated processor for complex closed-loop control,high-speed counting,and sophisticated motion control.

　　1.Product Overview and System Architecture

　　The FM458-1 DP is a cornerstone module for implementing high-performance automation solutions within the SIMATIC S7-400 framework.The S7-400 platform is known as a powerful PLC family designed for medium to high-end performance requirements,characterized by a modular design,a powerful backplane bus,and support for multi-CPU operations.Within this system,the FM458-1 DP occupies a unique niche.

　　Its primary function is to relieve the central CPU of heavy computational burdens.While the main S7-400 CPU handles sequential logic,communication,and system management,the FM458-1 DP can be tasked with executing dedicated,high-speed algorithms.It connects directly to the S7-400 backplane and features an integrated PROFIBUS-DP interface,allowing it to act as a master or slave on a high-speed DP network for direct communication with drives,I/O,and other field devices.This architecture is ideal for multi-processor computing,where complex tasks are broken down into technologies like open-loop control,calculation,or communication and assigned to different specialized processors.

　　2.Technical Specifications and Hardware Design

　　The module is designed for reliability in industrial environments and requires a single slot in an S7-400 rack.Its hardware is engineered for deterministic,low-latency operation.

　　Core Electrical and Performance Data:

　　Power Supply:It operates on the system's 5V DC backplane power,with a typical current consumption of 1.5 A and a maximum of 3 A.It also requires a 24V DC supply for its integrated digital inputs.

　　Processing and Memory:For retaining critical parameters and data,the module is equipped with a buffered SRAM and supports a backup battery,with a maximum backup current of 15µA.It includes a hardware clock(real-time clock)with a resolution of 500 ms.

　　High-Speed I/O:A key feature is its onboard digital input channel.It provides 8 digital inputs via a dedicated connector(X2),accepting a 24V DC signal.These inputs are engineered for ultra-fast response,with an input delay from"0"to"1"of just 5 microseconds(µs),which is critical for capturing high-speed encoder signals or precise event triggers.

　　Physical Characteristics:The module has a substantial weight of approximately 1000 grams,reflecting its robust construction.

　　Integrated Communication and Diagnostics:

　　The onboard PROFIBUS-DP interface supports advanced functions like equidistance(for precise bus timing)and direct data exchange(DX),enabling fast,controller-to-controller communication.Comprehensive alarm and diagnostic functions are integrated,allowing for detailed system monitoring and troubleshooting.

　　3.Core Features and Application Advantages

　　The FM458-1 DP transforms a standard S7-400 PLC into a platform capable of tackling the most demanding control challenges.Its advantages are realized in several key areas:

　　Deterministic,High-Speed Control Loop Execution:The module's dedicated processor and fast I/O enable the execution of control algorithms with extremely short and predictable cycle times.This is essential for applications like precision motion control,turbine control,or tension control in web processing,where instability can occur in milliseconds.

　　Offloading Complex Mathematical Functions:It can perform complex,processor-intensive calculations—such as coordinate transformations for robotics,advanced PID control with feedforward,or model-based predictive control—without impacting the performance of the main CPU.This preserves the system's overall responsiveness for other tasks.

　　Direct High-Speed Field Communication:By leveraging its integrated PROFIBUS-DP master capability,the FM458-1 DP can communicate directly with a network of drives(e.g.,SINAMICS)and I/O devices.This creates a short,fast control loop path that bypasses the central CPU,significantly reducing latency for motion control applications.

　　Foundation for Custom,Optimized Solutions:Engineers can program the module with highly specialized,optimized code for a specific machine function.This contrasts with using a general-purpose CPU for everything,allowing for a more efficient and powerful overall system design.

　　4.Primary Application Domains

　　This module is deployed in industries where performance,precision,and reliability are non-negotiable.

　　Complex Motion Control Systems:It is ideal for multi-axis coordinated motion in machines like printing presses,packaging machinery,and converting lines.It can handle electronic gearing,cam profiling,and complex interpolation tasks.

　　High-Speed Process Control:In industries such as plastics(injection molding),rubber,or fibers,where rapid,closed-loop control of temperature,pressure,and position is critical for product quality.

　　Test Bench and Simulation Rig Control:Used to control dynamic test stands for engines,turbines,or vehicle components,where real-time data acquisition and high-frequency control output are required.

　　Specialized Machine Automation:Any custom machine with a unique,computationally heavy control algorithm,such as advanced weighing systems,laser cutting path optimization,or complex assembly stations,can benefit from the dedicated processing power of the FM458-1 DP.

　　5.Comparative Context and System Integration

　　To appreciate the role of the FM458-1 DP,it's helpful to understand the hierarchy of control processing.

　　Standard S7-400 CPU:Executes the main user program,handles communication networks(like Industrial Ethernet for HMI and IT connectivity),and manages system resources.It is the"manager"of the automation system.

　　FM458-1 DP Application Module:A"specialist"or"co-processor."It is programmed with a dedicated function for a specific,high-speed task.It operates in parallel with the CPU,exchanging necessary data via the backplane and/or PROFIBUS.

　　Technology Modules(e.g.,Counters,Positioning):Other S7-400 modules like the FM450-1 counter or FM451 positioning module handle dedicated hardware functions but are typically more limited in programmability than the versatile,software-driven FM458-1 DP.

　　Integration Insight:The FM458-1 DP is selected when the required control speed or computational complexity exceeds the comfortable capabilities of a standard CPU cycle.It allows system architects to implement a distributed processing model within a single controller rack,leading to cleaner,more efficient,and higher-performing machine designs.

　　Frequently Asked Questions(FAQs)

　　1.How is programming the FM458-1 DP different from programming a standard S7-400 CPU?

　　The FM458-1 DP is programmed using specific programming packages from Siemens,such as the CFC(Continuous Function Chart)language within the SIMATIC engineering framework.CFC is ideal for representing continuous control processes with function blocks.The program developed for the FM458-1 DP is a dedicated"application"that runs independently on the module,while the standard CPU is programmed in languages like Ladder Logic(LAD)or Structured Text(ST)for general logic and sequencing.

　　2.What are the ultra-fast 5µs digital inputs used for?

　　These inputs are designed for capturing high-frequency signals directly.A primary use is connecting high-resolution incremental encoders for position feedback in motion control systems.The 5µs response time ensures that even at very high motor speeds,no encoder pulses are missed,which is critical for maintaining precise position control and calculating accurate velocity.

　　3.Can the FM458-1 DP operate without a central S7-400 CPU?

　　No,it cannot.The FM458-1 DP is a function module that requires an S7-400 central processing unit(CPU)to be present in the same rack.The CPU handles the system startup,initializes the modules,and manages the overall program coordination and communication with programming devices(PGs)and human-machine interfaces(HMIs).The FM458-1 DP is a dependent,albeit very powerful,component of the CPU's control system.

　　4.What types of control algorithms is this module best suited for?

　　It excels at executing deterministic algorithms that require fast,regular execution.This includes:

　　Advanced PID Control:Multi-loop,cascade,or PID with complex feedforward and dead-time compensation.

　　State-Space Controllers:Used in multi-variable control systems.

　　Mathematical Models:Running real-time simulations or process models for predictive control.

　　Motion Trajectory Planning:Calculating complex,smooth paths for coordinated multi-axis movement.

　　5.How does the PROFIBUS-DP master capability enhance its performance in motion control?

　　In a typical motion control setup,the FM458-1 DP can be configured as the DP master for a network of servo drives.This allows it to send setpoints(position,velocity,torque)and receive actual values directly at a fixed,high-speed bus cycle time(equidistance).This creates a tightly synchronized"motion bus,"minimizing communication jitter and ensuring all axes are updated simultaneously,which is fundamental for precise coordinated motion.
