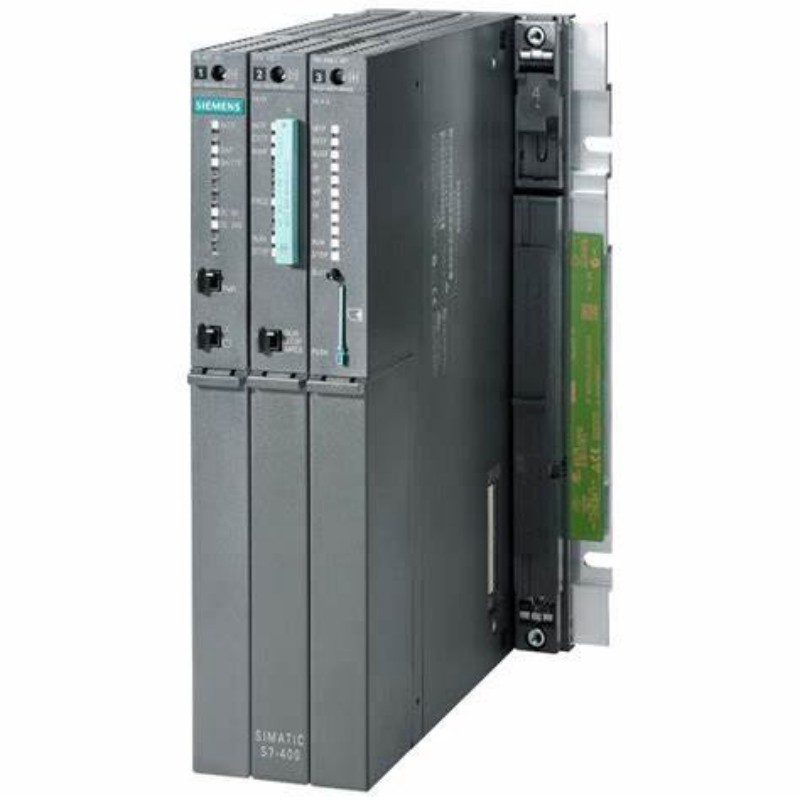

1.Product Overview and System Architecture
The EXM 438-1 is not a standard PLC I/O module;it is a specialized,plug-in digital analog extension module designed exclusively for the FM458-1 DP basic module within the SIMATIC S7-400 family.Its primary function is to bridge the FM458-1 DP—a processor optimized for compute-intensive,time-critical control algorithms—with the physical world of sensors and drives.
This architecture is designed for speed.The EXM 438-1 connects to the FM458-1 DP via a dedicated internal bus,bypassing the standard SIMATIC backplane.This direct connection allows the application processor to read and write I/O data with minimal latency,supporting cycle times starting from 100 microseconds.In this setup,the standard S7-400 rack primarily supplies power,while all high-speed data exchange happens directly between the FM458-1 DP and the EXM 438-1.
2.Detailed Technical Specifications and I/O Capabilities
The EXM 438-1 is engineered to handle a wide array of signals required for advanced control,particularly in motion and servo applications.
Analog I/O:The module provides high-precision analog interfaces.It includes 5 differential analog inputs with a±10V range and 12-bit resolution.For output,it features 8 analog outputs:four with 16-bit resolution and four with 12-bit resolution,all with a±10V output range and individual short-circuit protection.Conversion times are exceptionally fast,as low as 2 microseconds for the 16-bit outputs.
Digital I/O and Encoder Integration:For discrete and position feedback,the module offers 16 digital inputs and 8 digital outputs.A standout feature is its direct support for a wide range of encoders.It can connect up to 12 encoders simultaneously:eight incremental encoders(with synchronization capability)and four absolute encoders supporting SSI or EnDat interfaces.This eliminates the need for separate encoder interface modules.
Power,Isolation,and Physical Design:The module requires both 5V DC(from the backplane)and 24V DC(externally supplied)for operation.Critical I/O channels feature electrical isolation to enhance system stability and noise immunity.Designed as a single-slot module,it operates without a fan in environments up to 40°C and has a weight of approximately 1 kg.
3.Core Functional Advantages
The EXM 438-1's design translates into several key advantages for demanding automation tasks.
Deterministic,High-Speed Performance:The direct internal bus connection to the FM458-1 DP ensures predictable,sub-millisecond I/O update times.This determinism is essential for closed-loop control of high-dynamic processes,such as synchronizing multiple axes in a printing press or controlling the tension in a rolling mill.
Simplified System Configuration:Engineers configure the EXM 438-1 not with traditional ladder logic,but using the Continuous Function Chart(CFC)tool within the STEP 7 environment.This graphical,function-block-based approach is often more intuitive for implementing complex control algorithms,streamlining the engineering process.
Reduced Hardware Footprint:By integrating analog I/O,digital I/O,and extensive encoder interfaces into a single module,the EXM 438-1 significantly reduces the number of components required in a control cabinet.This consolidation saves space,simplifies wiring,and improves overall system reliability.
4.Primary Application Domains
This module is deployed in industries where control speed and precision are non-negotiable.
High-Dynamic Motion Control:Ideal for complex machinery like packaging robots,CNC machine tools,and textile manufacturing equipment where multiple axes must be coordinated with extreme precision and speed.
Advanced Process Control:Suited for fast-loop process control applications,such as controlling main drives in paper mills,metal rolling and winding stations,or test benches for motors and turbines.
Custom High-Performance Solutions:Serves as the I/O backbone for specialized systems built around the FM458-1 DP,where standard PLC scan times are insufficient.
Frequently Asked Questions(FAQs)
What is the key difference between the 6DD1607-0AA2 and the EXM 438-1 module?
The 6DD1607-0AA2 is the article number for the FM458-1 DP application module,which is the central processing unit for high-speed control tasks.The EXM 438-1 is a separate,dedicated I/O expansion module(often ordered under article number 6DD1607-0CA1)that connects directly to the FM458-1 DP to provide its ultra-fast analog,digital,and encoder interfaces.
Can the EXM 438-1 module be used with a standard S7-400 CPU without the FM458-1 DP?
No,it cannot.The EXM 438-1 is functionally and physically designed to work only with the FM458-1 DP basic module.Its direct internal bus connection is not compatible with the standard I/O bus of a conventional S7-400 CPU.
What software is required to program and configure a system using the EXM 438-1?
Configuration is done within the Siemens STEP 7 engineering framework,specifically using the Continuous Function Chart(CFC)editor.The FM458-1 DP system may also require the D7-SYS software package for advanced function blocks and optimized operating systems.
How does the EXM 438-1 handle encoder signals?
The module provides dedicated circuitry for connecting a mix of incremental and absolute encoders.It supports symmetric and asymmetric incremental encoder signals and absolute encoders with SSI or EnDat interfaces,supplying the necessary power and clock signals directly.
What are the environmental specifications for reliable operation?
The module is designed for industrial environments.It can operate at ambient temperatures of 0°C to 40°C without a forced-air fan.If the temperature exceeds 40°C,installation of a fan is required to ensure reliable performance.
