Introduction to Motor Module Shield Connection Plates
In the electrically noisy environment of modern industrial automation,the integrity of motion control signals is paramount.The Siemens 6SL3162-1AD00-0AA0 is a specialized Motor module shield connection plate,a critical component within the SINAMICS S120 drive system architecture.This EMC shield plate is engineered to provide a reliable,low-impedance grounding point for the shielding layers of motor and feedback cables.Its primary function is to divert high-frequency interference currents away from sensitive electronics,thereby ensuring the electromagnetic compatibility(EMC)and operational stability of the entire drive system.By effectively mitigating electromagnetic interference(EMI),this plate safeguards against data corruption,communication faults,and erratic motor behavior,which are common challenges in installations with multiple drives,switching power supplies,and complex wiring harnesses.
Technical Reference and Accuracy Verification
A review of the provided search results does not directly confirm the specific details of the 6SL3162-1AD00-0AA0 model as a shield plate for 100mm wide,45A/60A internally-cooled motor modules.The search results reference other Siemens shielding connection kits,such as the 6SL3162-1AF00-0AA1 for 150mm wide modules and the 6SL3162-1AH01-0AA0 for 200mm wide modules.Therefore,the precise dimensional and current rating specifications for the-1AD00-variant should be verified against the official Siemens SINAMICS S120 manuals or data sheets.The following technical overview is based on the standard design principles and functions of such EMC shield plates within the Siemens ecosystem.
Core Design Philosophy and Function
The Imperative of EMC in Drive Systems
Industrial settings are often described as an"electromagnetic interference minefield."Devices like variable frequency drives(VFDs),switching power supplies,and relays generate significant conducted and radiated noise.The SINAMICS S120's high switching frequency,while essential for precise motor control,can be a potent source of interference.Without proper management,this noise can couple onto signal and feedback cables,leading to degraded system performance.The core function of the Motor module shield connection plate is to establish a"clean earth"—a centralized,high-quality grounding point that acts as a sink for this interference before it can disrupt system operation.
Superior Shielding Effectiveness and Connection Integrity
Unlike improvised grounding methods,this dedicated plate is designed for optimal EMC shield plate performance.
Low-Inductance Design:The plate is constructed from a highly conductive metal,typically zinc-plated steel or aluminum,and is designed with a broad,flat surface area.This geometry minimizes parasitic inductance,which is crucial for effectively shunting high-frequency noise(common in drive systems)to ground.
Secure and Durable Connection:It features multiple,precisely engineered clamping points or terminals designed to accommodate standard shield braids or foil from PROFIBUS,DRIVE-CLiQ,and motor power cables.These clamps ensure a gas-tight,corrosion-resistant connection that maintains a consistent low-impedance path over the product's lifetime,far superior to screw terminals or"pigtail"connections which can act as antennas at high frequencies.
Integrated System Design:The plate is mechanically and electrically designed to mount directly onto the SINAMICS S120 booksize motor module or its mounting rail.This ensures the shortest possible path between the cable shield and the drive's grounding system,a key factor in effective high-frequency noise suppression.
Detailed Performance Characteristics and Specifications
Physical and Material Composition

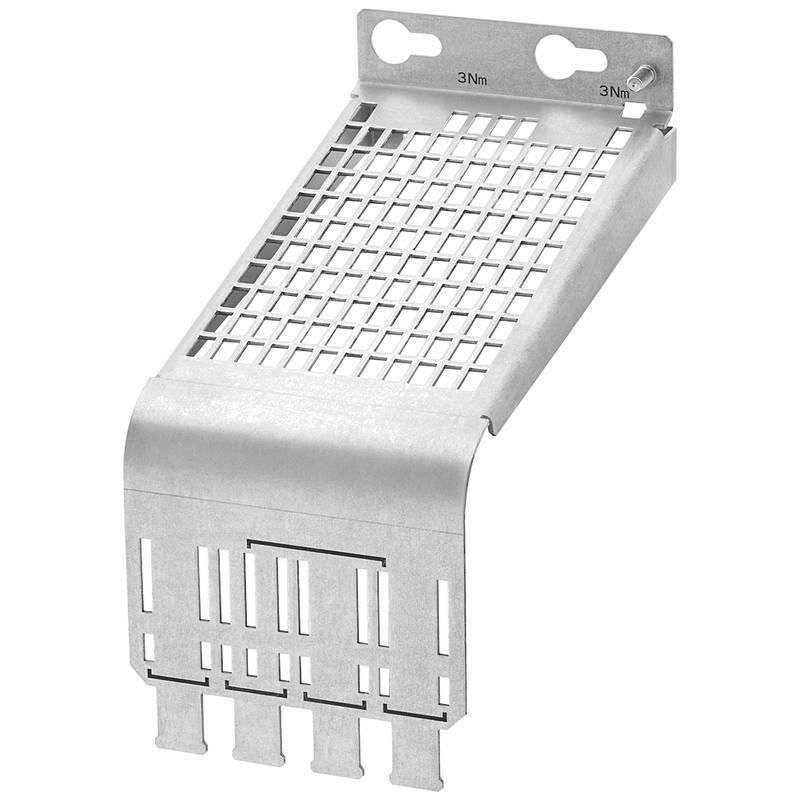

The EMC shield plate is a precision metal component.Its dimensions are tailored to match the standard booksize form factor of its associated 45A/60A motor module,ensuring a seamless fit within the control cabinet layout.The base material is selected for excellent conductivity and corrosion resistance,often with a surface treatment like zinc-nickel plating to prevent oxidation and maintain stable electrical properties in humid industrial environments.The connection clamps are made from spring-tempered,corrosion-resistant alloys to maintain constant pressure on the cable shields.
Electrical and EMC Performance Parameters
The primary performance metric for a shield connection plate is its transfer impedance—a measure of how effectively it passes interference current to ground.A well-designed plate like the Siemens unit exhibits extremely low transfer impedance across a broad frequency spectrum(from kHz to GHz ranges).This performance directly translates to high shielding effectiveness,which can reduce radiated emissions from the cable bundle and improve immunity to external noise.By centralizing the shield connections,the plate also helps manage common-mode currents,preventing them from circulating between different devices and creating ground loops,which are a frequent source of analog signal distortion and communication errors.
System Integration and Installation Architecture
Role within the SINAMICS S120 Topology
In a complete SINAMICS S120 system,the Motor module shield connection plate is a vital link in the holistic EMC strategy.It interfaces between the shielded cables and the motor module's metal housing,which is itself connected to the control cabinet's grounded mounting plate.This creates a"faraday cage"effect around the sensitive electronics,containing internally generated noise and blocking external interference.It works in concert with other EMC measures,such as the use of ferrite cores on cables,proper cabinet grounding,and the installation of RFI filters on the main power supply,to ensure the entire system complies with international EMC standards like IEC 61800-3.
Installation Best Practices and Wiring Guidelines
Correct installation is non-negotiable for achieving the promised EMC performance.Best practices include:
Preparation of Cable Shields:The shield braid must be trimmed,combed,and folded back neatly to create a solid,360-degree contact surface under the clamp.
Direct and Short Connections:Each cable shield should be connected directly to the plate.Daisy-chaining shields from one cable to another is strictly prohibited,as it compromises the grounding integrity for all downstream cables.
Dedicated Grounding Strap:The plate itself must be connected to the cabinet's central grounding point(star point)or the mounting plate using a short,wide,braided copper grounding strap.This strap should have a surface area sufficient to handle high-frequency noise currents.
Separation of Power and Signal Cables:During cabinet layout,cables with shields connected to this plate(motor power,feedback)should be routed separately from unshielded AC power cables and other noise sources to minimize inductive coupling.
Application-Specific Advantages and Scenarios
Ensuring Precision in Sensitive Applications
The use of this dedicated plate is critical in applications where signal integrity directly impacts quality or safety.
High-Speed and Precision Machinery:In packaging,printing,or CNC machines,even minor feedback signal noise can cause velocity ripple or positioning errors.A robust shield connection ensures the encoder or resolver signals remain pristine.
Multi-Axis and Robotic Systems:These systems have dense cable bundles carrying both high-power and low-signal currents.Centralized shield termination at the EMC shield plate prevents crosstalk between axes,which could lead to synchronized motion errors or communication faults on shared networks like PROFINET.
Systems in Electrically Noisy Environments:Installations near welding equipment,large motors,or radio transmitters are subjected to intense external EMI.A properly implemented shield grounding system is the first line of defense in immunizing the drive system against such ambient noise.
Economic and Operational Benefits
Investing in a proper shield connection system yields significant returns:
Reduced Downtime:By eliminating interference-related faults and sporadic errors,it increases machine availability and productivity.
Faster Commissioning:Pre-defined,easy-to-use connection points simplify wiring and reduce the time spent debugging EMC issues during system startup.
Compliance Assurance:It provides a verifiable and standardized method to meet stringent EMC regulations,avoiding costly rework or certification failures.
Comparison with Alternative Shielding Methods
Versus Generic Terminal Blocks or Chassis Grounding
Using a standard DIN-rail terminal block or simply tightening a shield under a screw against the cabinet wall is a common but flawed practice.These methods often result in a high-inductance connection point that is ineffective at high frequencies.The Siemens EMC shield plate offers a purpose-built,low-impedance solution with clamps designed specifically for shield termination,providing vastly superior performance.
Versus"Pigtail"Connections
A"pigtail"is a short wire soldered or crimped to a cable shield and then connected to a terminal.This practice is highly discouraged in EMC engineering because the pigtail wire acts as an inductor at high frequencies,effectively isolating the shield from ground for the very noise it is meant to suppress.The 360-degree clamp connection of the dedicated plate eliminates this inductive weakness entirely.
Installation Scenarios
New System Deployment:For new control cabinet builds,integrating these plates from the outset is the most effective and cost-efficient strategy,ensuring a clean,compliant installation.
System Upgrade and Troubleshooting:In existing systems suffering from unexplained faults or noise issues,retrofitting these plates is often the most targeted and effective solution to resolve persistent EMC problems.
Frequently Asked Questions(FAQs)
Why is a special plate necessary?Can't I just connect the cable shield to the nearest screw on the motor module?
No.A random screw connection does not guarantee a gas-tight,low-impedance,or corrosion-resistant contact.More importantly,the motor module's housing may not be directly connected to the central safety ground(PE)with a path suitable for high-frequency noise.The Motor module shield connection plate provides a dedicated,engineered interface designed specifically for this purpose,ensuring a reliable and effective path to ground across the entire frequency spectrum of concern.
Does using this EMC shield plate mean I can ignore other cable routing and grounding rules?
Absolutely not.The shield plate is a single,albeit critical,component in a complete EMC protection strategy.It must be used in conjunction with proper practices:using high-quality,symmetrically constructed shielded cables;routing power and signal cables in separate trays or with ample separation;and ensuring the overall control cabinet has a low-impedance,"star-point"grounding system.The plate is the optimal endpoint for the shield,but it does not compensate for poor cable quality or overall cabinet design.
How do I connect multiple shield wires to a single clamp on the plate?
The clamps on Siemens shield plates are typically designed to accommodate one cable shield per clamp to ensure proper pressure and contact.For multiple cables,you should use multiple available clamps on the plate.Do not bundle multiple shield braids into a single clamp unless the plate's documentation explicitly states that a specific clamp is designed for this purpose,as this can lead to an unreliable connection for some of the cables.
Can this plate help with problems like encoder communication loss or analog signal drift?
Yes,these are classic symptoms of electromagnetic interference.Noise coupling onto feedback or analog signal cables is a primary cause of such issues.By providing an excellent high-frequency ground for these cables'shields,the EMC shield plate can dramatically reduce or eliminate this noise ingress,thereby resolving communication instability and signal drift problems.
What is the key difference between this accessory and the functional grounding of the drive system?
This distinction is crucial.Functional grounding(the connection of the drive's PE terminal)is for electrical safety,designed to handle fault currents at mains frequency(50/60 Hz).The EMC shield plate and its connections are part of the high-frequency grounding system,designed to handle noise currents in the kHz to MHz range.They serve complementary but technically different purposes.Both must be correctly implemented for a safe and robust system.
