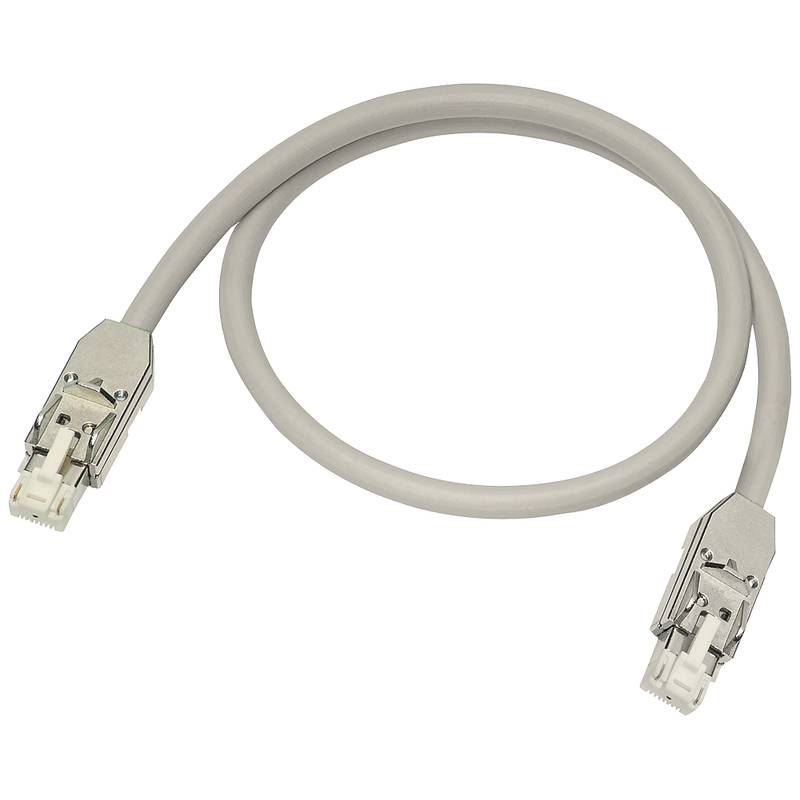

Siemens SINAMICS S120 Drive CLiQ Cable 6SL3060-4AA10-0AA0, IP20, 0.95m Ethernet

　　1.Product Introduction and Core Function

　　The Siemens 6SL3060-4AA10-0AA0 is a specialized industrial communication cable integral to the SINAMICS S120 drive system.It belongs to the Motion-Connect 800(MC800)series of pre-assembled cables,renowned for their robustness and reliability in demanding automation environments.This particular model serves as the primary data and power lifeline,enabling the high-speed,deterministic DRIVE CLiQ communication protocol that synchronizes drives,motors,and control units within a S120 system.While your information correctly identifies it as a SINAMICS S120 cable with IP20/IP20 protection,it is important to note that the standard maximum allowable length for this MC800 series cable is 50 meters,with the 0.95m version being a specific short-length variant for closely spaced components.

　　2.Detailed Technical Specifications and Construction

　　The 6SL3060-4AA10-0AA0 is engineered to meet the rigorous demands of industrial communication.It combines signal and power conductors within a single,durable jacket to simplify installation and enhance reliability.

　　Electrical and Communication Characteristics:

　　This cable facilitates full-duplex communication,allowing for simultaneous high-speed data transmission and reception,which is critical for real-time motion control.It operates at a low voltage,with a maximum working voltage of 30 V AC/DC,ensuring safe operation within the control cabinet.Its integrated design includes conductors for the DRIVE CLiQ data signals as well as a separate 24 V DC supply line,which powers peripheral devices like sensors or auxiliary electronics directly from the drive system,eliminating the need for separate power wiring.This integration significantly reduces cabinet clutter and potential error points.

　　Mechanical and Environmental Durability:

　　As part of the MC800 series,this cable is built for superior mechanical strength.Its construction makes it resistant to oil and other common industrial contaminants,suitable for both fixed installation and applications requiring movement,such as in cable carriers.The cable features a robust PUR(polyurethane)outer sheath,known for its excellent resistance to abrasion,chemicals,and hydrolysis.It is rated for a wide operational temperature range from-20°C to+80°C,ensuring stable performance in most industrial settings.The IP20/IP20 ingress protection rating indicates it is designed for use inside protected control cabinets,guarding against touch by fingers and solid objects larger than 12.5mm,but not against water.

　　Connector and Physical Design:

　　The cable is terminated with industry-standard,pre-assembled connectors that ensure a secure and reliable connection to SINAMICS S120 components.Its compact outer diameter and flexible design facilitate neat cable routing within tight cabinet spaces.Proper installation requires observing the minimum bending radius,especially in dynamic applications,to maintain signal integrity and cable longevity.

　　3.System Integration and Network Architecture

　　The true value of the 6SL3060-4AA10-0AA0 cable is realized within the holistic DRIVE CLiQ network architecture of SINAMICS S120.

　　Building a Deterministic Network:

　　This cable is not a simple wire but a key component in a real-time communication network.It connects a central Control Unit(CU)to various booksize motor modules,single and double motor modules,sensor modules,and other peripherals.Every device connected via this cable is automatically detected and configured by the system,drastically simplifying commissioning and reducing potential wiring errors.

　　Network Expansion and Topology Rules:

　　For system layouts exceeding the standard cable length or requiring complex topologies,Siemens provides specific expansion components.The MC800 series cable can be connected to other cable series,such as MC500,using a dedicated DRIVE-CLiQ cable coupler(6SL3066-2DA00-0AB0).Furthermore,to extend the total network reach beyond 100 meters,DRIVE-CLiQ hubs like the DMC20(IP20)or DME20(IP67)can be employed.These hubs act as network switches,allowing star topologies and effectively doubling the permissible cable length.The system allows for up to two hubs in series,enabling network spans of up to 300 meters when using MC500 cables,which is essential for large machinery.Strict rules govern mixed network design,where the sum of MC500 cable lengths plus twice the sum of MC800 cable lengths must not exceed 100 meters between active components or hubs.

　　4.Application Advantages and Competitive Value Proposition

　　Choosing the Siemens 6SL3060-4AA10-0AA0 cable translates into tangible benefits for machine builders and end-users,impacting reliability,cost,and performance.

　　Ensuring System-Wide Reliability and Uptime:

　　The pre-assembled,tested nature of this genuine Siemens cable guarantees electrical characteristics perfectly matched to the DRIVE CLiQ protocol's demands.This compatibility minimizes signal reflection,crosstalk,and data errors that can cause erratic drive behavior,communication faults,or unplanned downtime.Its rugged construction directly contributes to higher machine availability by withstanding the vibration,temperature cycles,and occasional mechanical stress found in industrial environments.

　　Reducing Total Cost of Ownership:

　　While the initial investment in a factory-made cable may be higher than field-assembled alternatives,it saves significant costs downstream.It eliminates the time and labor required for manual crimping and testing of connectors.The plug-and-play nature speeds up installation and commissioning.Most importantly,it prevents the costly production stoppages that can result from communication failures caused by inferior cables.

　　Enabling High-Performance Motion Control:

　　The integrity of the industrial communication cable is foundational to achieving the high dynamic performance expected from a SINAMICS S120 system.A stable,low-latency connection ensures that torque commands,actual position values,and safety signals are transmitted without delay or corruption.This is critical for applications involving precise multi-axis coordination,such as in robotics,packaging machines,or CNC machining centers,where synchronization directly affects product quality and throughput.

　　Frequently Asked Questions(FAQs)

　　1.Can I use a standard Ethernet cable instead of the dedicated 6SL3060-4AA10-0AA0 DRIVE-CLiQ cable?

　　No,it is strongly discouraged.While DRIVE CLiQ uses Ethernet-based physical layers,the Siemens cable is specifically engineered for industrial motion control.It combines data pairs with separate power conductors for 24V supply,uses industrial-grade PUR sheathing for durability,and features connectors designed for secure locking in high-vibration environments.Using a standard Ethernet cable risks communication failures,loss of peripheral device power,and physical connector failure.

　　2.What is the difference between the MC500 and MC800 cable series,and when should I use the MC800?

　　Both are genuine Siemens DRIVE CLiQ cables,but the MC800 series(to which 6SL3060-4AA10-0AA0 belongs)is built for higher mechanical stress.The MC800 cable has enhanced resistance to oil and is designed for use in cable carriers and applications with frequent movement.The MC500 series is typically used for standard fixed installations within a control cabinet.The MC800 has a shorter maximum allowed length(50m vs.100m for MC500)due to its different electrical characteristics optimized for dynamic use.

　　3.My system requires a cable longer than 50 meters.What are my options?

　　You cannot use a single MC800 cable longer than 50 meters.To achieve longer distances,you must use system expansion components.You can connect multiple cables using a DRIVE-CLiQ cable coupler,or,more effectively,integrate a DRIVE-CLiQ hub(DMC20 or DME20).The hub allows you to create a new network segment,enabling total system lengths of up to 300 meters with specific configurations.

　　4.How critical is the 24V supply integrated into this cable?

　　It is essential for many system functions.This 24V line powers the electronics of connected booksize motor modules and other peripheral devices.If this power is interrupted or unstable due to a poor-quality cable,it can cause modules to go offline,trigger safety faults,or lead to inconsistent performance.The integrated power delivery is a key feature that ensures all network nodes operate reliably from a single source.

　　5.Conclusion

　　The Siemens 6SL3060-4AA10-0AA0 is far more than just a cable;it is a critical,system-qualified component of the SINAMICS S120 drive ecosystem.Its design as a high-grade industrial communication cable for the DRIVE CLiQ network ensures data integrity,delivers auxiliary power,and provides the mechanical ruggedness required for 24/7 industrial operation.By guaranteeing reliable communication between the control intelligence and the power modules,it forms the reliable nervous system upon which precision,synchronized motion control is built.Specifying this genuine cable is a fundamental step in constructing a robust,high-performance,and easily maintainable automation system.
