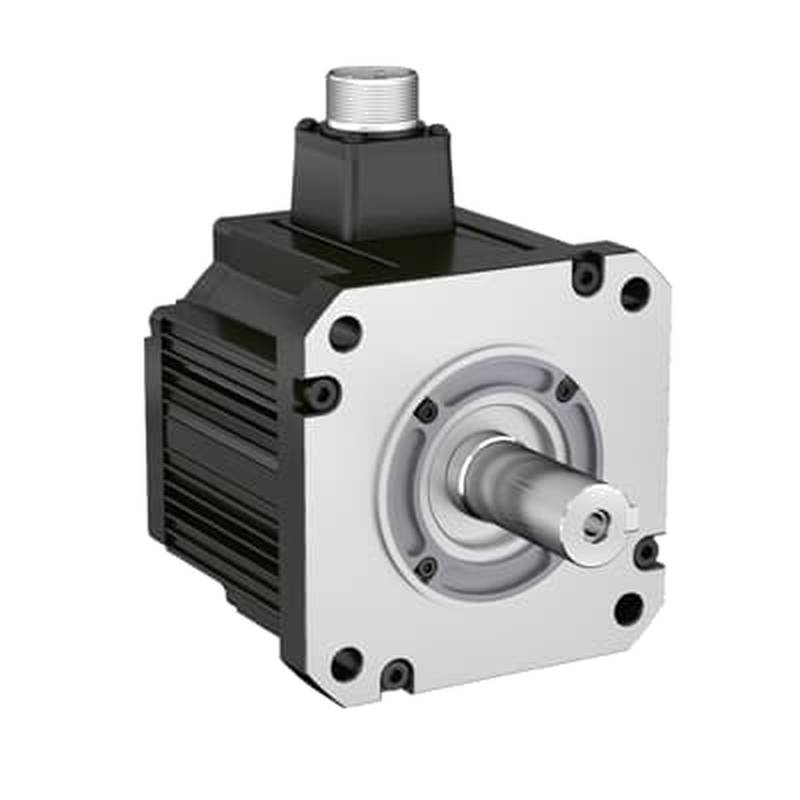

ABB ESM22E-113-154-T1N0A00 11kW 400V AC Servo Motor for Industrial Applications

The ABB ESM22E-113-154-T1N0A00 is a high-performance industrial servo motor engineered for precise motion control in demanding automation environments. As an industrial servo motor, this unit operates on a 400V AC power supply, offering the robust torque and dynamic response required for high-speed production lines. This 380v servo motor provides seamless integration with advanced control systems, ensuring consistent positioning accuracy in applications ranging from CNC machining and robotic assembly to automated packaging equipment. For maintenance engineers and procurement specialists, this model serves as a critical component to minimize downtime and restore peak operational capacity. Its standardized frame and electrical interface facilitate efficient deployment in multi-axis motion architectures where reliability is paramount.

Product Type & Category Positioning

The ABB ESM22E-113-154-T1N0A00 falls under the classification of high-inertia, permanent magnet synchronous industrial servo motors designed for closed-loop motion control. Within the broader category of industrial drives, it functions as a primary actuator that converts electrical energy into precise mechanical rotation. Building on this classification, the unit is specifically configured for industrial applications that require rapid acceleration, stable velocity regulation, and absolute positioning feedback.

These motors are categorized by their voltage rating, peak torque capabilities, and encoder resolution, which collectively define their suitability for heavy-duty industrial tasks. This particular model serves as a pivotal element in motion control hierarchies, acting as the bridge between the programmable logic controller (PLC) commands and the actual mechanical movement. Its role is to execute complex path profiles with minimal lag, ensuring that the driven load reaches its destination within established tolerances.

Technical Specifications

Model: ESM22E-113-154-T1N0A00

Voltage: 400V AC

Rated Power: 1.54 kW

Rated Speed: 2200 RPM

Peak Torque: 15.4 Nm

Encoder Type: Absolute Multi-turn

Cooling Method: Natural convection/forced air

Protection Class: IP65

Mounting Type: Flange mount

Weight: 12.8 kg

Technical Highlights

The design philosophy behind the ESM22E series prioritizes mechanical robustness to withstand the rigors of continuous industrial operation. By utilizing high-grade magnetic materials and an optimized rotor structure, the motor achieves a favorable power-to-weight ratio that reduces mechanical stress on the mounting flange. Moreover, the integrated IP65-rated housing protects the internal windings from particulate ingress and moisture, ensuring consistent performance in harsh manufacturing conditions.

Regarding performance and precision, this motor delivers exceptional control stability during high-frequency start-stop cycles. The absolute multi-turn encoder provides sub-degree feedback resolution, which is essential for maintaining process integrity in automated assembly tasks. Additionally, the 15.4 Nm peak torque output ensures that the system maintains responsiveness even when subjected to sudden load fluctuations, effectively protecting the equipment from synchronization errors.

Application Scenarios

CNC Machine Tool Axis Drive: Provides high-speed positioning precision of ±0.01 mm, enabling consistent surface finish quality and reduced cycle times for complex machining paths.   Automated Packaging Lines: Ensures synchronized motion at speeds exceeding 200 units per minute, resulting in an estimated 15% improvement in line throughput compared to standard induction motor drives.   Robotic End-Effector Positioning: Facilitates rapid point-to-point movement with a settling time under 50 ms, significantly enhancing the operational duty cycle in high-speed pick-and-place workstations.   Conveyor System Tensioning: Maintains constant torque across varying loads, which helps in reducing mechanical vibration and extending the service life of drive belts and pulleys by approximately 20%.

Selection Recommendations

This selection recommendation follows the technical parameters matching method, focusing on the load profile and environmental compatibility. The ESM22E-113-154-T1N0A00 is highly suitable for high-inertia applications where the load mass requires a sustained peak torque of 15.4 Nm to maintain a controlled velocity profile. Conversely, this model is not recommended for cleanroom environments requiring specialized medical-grade surface coatings, as the standard IP65-rated casing is intended for heavy industrial settings rather than sanitary-sensitive zones. For applications requiring a higher continuous power output, users may consider the ABB ESM22E-150 series as a potential alternative.
