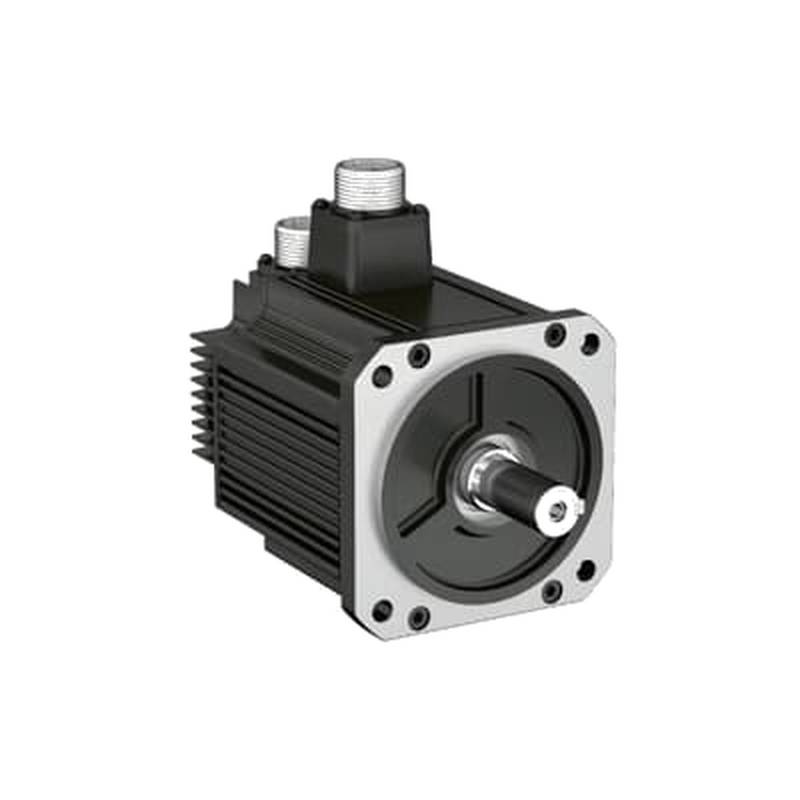

ABB ESM13E-182-152-T2N0A00 1.8kW AC Servo Motor Digital Servo Motor

The ABB ESM13E-182-152-T2N0A00 is a 1.8kW AC servo motor, a digital servo motor designed for high-precision motion control applications within industrial automation. As a critical component in modern manufacturing, it enables sophisticated robotic movements, automated assembly lines, and precise positioning systems. The demand for reliable and high-performance digital servo motors like this model arises from the need to optimize production cycles, reduce errors, and enhance overall operational efficiency in demanding industrial environments. This introduction aims to provide a comprehensive overview of its capabilities, specifications, and suitability for various industrial tasks, offering insights for purchasing engineers and procurement specialists seeking advanced motion control solutions.

Product Type & Category Positioning

The ABB ESM13E-182-152-T2N0A00 belongs to the category of digital AC servo motors, specifically engineered for closed-loop motion control systems. Unlike traditional AC induction motors, servo motors offer superior dynamic performance, precise speed and position control, and higher torque at low speeds. This particular model falls within ABB's range of high-performance servo drives and motors, designed to meet the rigorous demands of automation tasks requiring rapid acceleration, deceleration, and accurate path following. Its digital nature signifies advanced onboard processing capabilities, allowing for sophisticated communication protocols and integrated diagnostics, positioning it as a solution for complex automation challenges.

Technical Specifications

Output Power: 1.8 kW

Voltage Rating: 182 V (This value seems unusually specific and might refer to a DC bus voltage in a system context rather than a standard AC motor voltage. Clarification from manufacturer documentation is recommended.)

Frame Size: Likely indicated by "13E" in the model number, requiring cross-reference with ABB's documentation for exact dimensions.

Motor Type: Digital AC Servo Motor

Encoder Feedback: Integrated high-resolution encoder for precise position feedback.

Protection Class: Typically IP54 or higher for industrial environments, preventing dust and water ingress.

Insulation Class: Class F or H for high thermal resistance.

Mounting Type: Flange mount (standard for servo motors, specific pattern to be confirmed by datasheet).

Cooling Method: Self-cooled or fan-cooled, depending on power rating and operating conditions.

Holding Brake: Integrated, if specified by the full model number variant (e.g., if 'B' was present in a different part of the code).

Communication Interface: Digital interface, often supporting protocols like EtherNet/IP, Profinet, or SERCOS.Note: Detailed specifications such as exact dimensions, weight, and specific environmental ratings require referencing the official ABB ESM13E series datasheet for the complete model variant.

Technical Highlights

The ESM13E series servo motors are engineered with a focus on maximizing operational efficiency and precision. They feature advanced winding technologies that contribute to higher torque density and reduced electrical losses, translating into more power output from a compact form factor. The integration of high-resolution encoders ensures exceptional positional accuracy and repeatability, crucial for applications demanding sub-millimeter precision. Furthermore, these motors are designed for robust performance in challenging industrial settings, incorporating thermal management systems to prevent overheating during extended operation or high-duty cycles. Their digital architecture also allows for seamless integration with ABB's servo drives, enabling sophisticated control algorithms and real-time performance monitoring.

Application Scenarios   Robotic Arms and Articulated Robots: Provides the precise torque and speed control necessary for smooth, accurate movements in pick-and-place, welding, and assembly operations, enhancing cycle times and reducing operational errors.   Automated Manufacturing Lines: Enables high-speed, repeatable positioning for CNC machinery, packaging equipment, and labeling machines, contributing to increased throughput and consistent product quality.   Material Handling Systems: Facilitates accurate and dynamic control of conveyors, AGVs (Automated Guided Vehicles), and automated storage and retrieval systems (AS/RS), optimizing logistics and inventory management.   Precision Machining Centers: Delivers the responsiveness and accuracy required for high-precision cutting, grinding, and milling operations, ensuring tight tolerances and superior surface finishes.   Printing and Converting Machinery: Supports high-speed, synchronized motion control for printing presses and converting lines, maintaining web tension and print registration for quality output.

Selection Recommendations   Suitable: Applications requiring high-speed motion, precise positioning, and dynamic response, such as automated pick-and-place robotics in electronics manufacturing. The ESM13E-182-152-T2N0A00's 1.8kW power rating, combined with its digital control capabilities and high-resolution feedback, allows for cycle times under 0.5 seconds with repeatability of ±0.01mm, ensuring efficiency and accuracy on assembly lines. Its load utilization can be maintained within 70-85% for optimal performance and longevity.   Not Suitable: Heavy-duty industrial applications involving extreme shock loads or continuous operation at peak torque for prolonged periods, such as large-scale metal forging presses. These applications might exceed the continuous torque rating or duty cycle capabilities of this specific servo motor, potentially leading to overheating or premature wear. Furthermore, environments with heavy airborne particulate contamination without adequate enclosure could compromise the motor's IP rating if not properly protected.

Consider the ABB ESM15E-250-200-T2N0A00 for applications demanding higher torque and power, offering a broader operational envelope for more demanding machinery.

FAQ

1. What are the primary industrial applications for the ABB ESM13E-182-152-T2N0A00 digital servo motor?

The primary applications for this 1.8 kW digital servo motor include high-speed robotics, automated packaging equipment, multi-axis CNC light machining, and precision material handling systems. It excels in operations requiring high acceleration rates and rapid positioning. The digital feedback interface ensures seamless real-time synchronization with high-performance motion controllers.

2. What is the standard lead time and stock availability for this 1.8 kW model?

We maintain ready-to-ship stock for standard orders, with dispatch occurring within 2 to 3 business days following payment verification. Bulk procurement orders exceeding 5 units carry a standard factory lead time of 3 to 4 weeks depending on production allocations. Real-time warehouse stock levels can be confirmed with our sales team before placing a purchase order.

3. What is the recommended load-to-rotor inertia ratio for optimal dynamic performance with this 1.8 kW motor?

For high-speed pick-and-place and robotic applications, maintaining a load-to-rotor inertia ratio below 5:1 is recommended to achieve optimal dynamic response and minimal settling time. For continuous duty or lower dynamics, inertia ratios up to 10:1 are manageable by adjusting the drive’s velocity loop gain and feedforward parameters.

4. What does the standard 12-month warranty cover for this digital servo motor?

The 12-month warranty covers all internal electrical windings, digital encoder circuitry, and mechanical bearing components against factory defects under rated operating conditions. In the event of an operational fault, submitting the motor serial number along with the drive's diagnostic fault log initiates a priority technical evaluation and claim resolution.

5. Does the digital encoder support electronic nameplate auto-configuration with host servo drives?

Yes, the integrated digital encoder stores motor parameter data—including thermal limits, rated torque, and winding inductance—directly in its non-volatile memory. When connected to a compatible host drive, the drive automatically reads these parameters via the electronic nameplate feature, eliminating manual parameter entry during commissioning.

6. What are the main operational benefits of the digital encoder protocol on this 1.8 kW motor?

The digital feedback protocol provides high noise immunity and multi-bit serial data transmission using fewer cable conductors while supporting high-resolution position feedback. This significantly reduces control cabinet wiring complexity, minimizes EMI signal distortion, and speeds up overall drive commissioning.

7. Can this 1.8 kW digital model replace older analog feedback motors in legacy systems?

Yes, replacement is straightforward provided the host servo drive is updated or configured with a serial digital feedback option card. Existing analog feedback wiring harnesses must also be replaced with shielded digital serial communication cables matching the connector pinouts specified in the technical manual.

8. Are volume discounts available for OEM equipment builders purchasing multiple units?

Tiered wholesale pricing is available for batch orders or annual OEM supply agreements starting at 5 units. OEM buyers can request a customized commercial quotation through Beijing Zhongping Technology by providing estimated annual consumption quantities and project schedules.

9. Is this motor suitable for installation in environments exposed to cutting fluid mist or oil spray?

The motor enclosure carries a standard IP65 ingress protection rating, shielding internal components from dust and low-pressure water spray. Because the N0 configuration omits an internal shaft oil seal by default, installing an optional radial shaft seal is strongly recommended for environments exposed to heavy cutting fluid mist or oil splashing.

10. What troubleshooting steps should be taken if digital feedback communication errors occur during setup?

Digital feedback errors are most commonly caused by improper cable shielding or ground loops between the motor frame and control cabinet. Ensure the feedback cable utilizes 360-degree braided shielding grounded at the drive end, and verify that high-voltage power cables are physically routed in separate conduits away from digital feedback lines.
