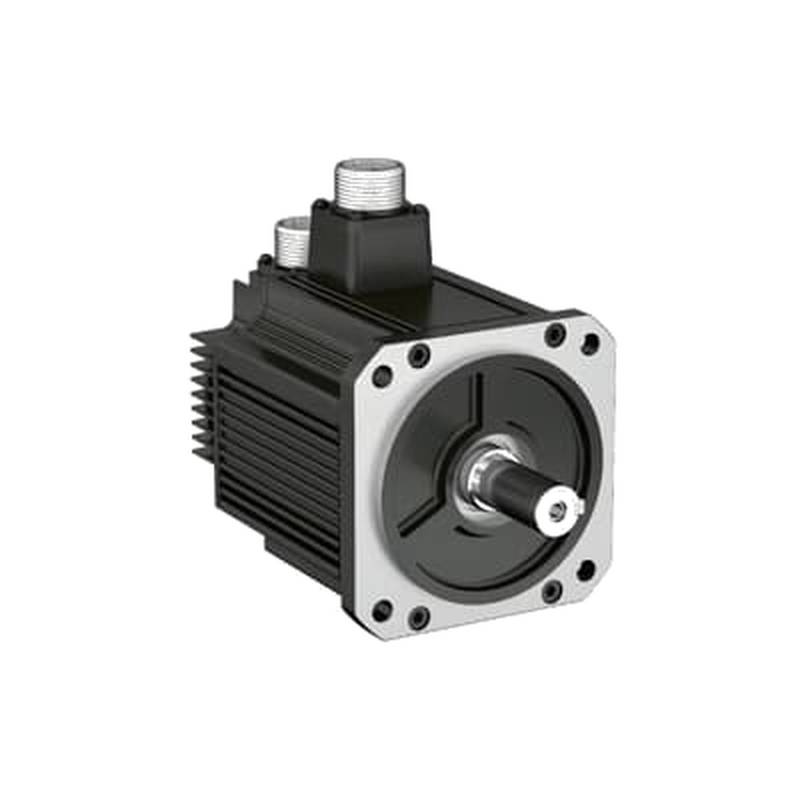

ABB ESM13B-152-304-T2B0A00 High Speed 1.5 kW AC Servo Motor

The ABB ESM13B-152-304-T2B0A00 is a high-performance 1.5 kW servo motor engineered for industrial automation, functioning as a critical component in motion control systems that require a high speed servo motor profile. This unit delivers precise position and velocity control for applications including CNC machinery, automated assembly lines, and robotics, where machine downtime often necessitates immediate, factory-spec replacement. The ESM13B series is designed to provide high torque density and rapid dynamic response, ensuring consistent operational reliability in demanding production environments. By integrating advanced feedback technology, this motor facilitates tighter control loops and reduced settling times for optimized machine throughput.

Product Type & Category Positioning

The ABB ESM13B-152-304-T2B0A00 belongs to the eSM series of low-voltage AC brushless servo motors, classified as a medium-inertia, high-dynamic-response industrial actuator. It operates within a three-phase power architecture, typically paired with MotiFlex e180 or MicroFlex e190 servo drives to achieve synchronized motion control. This product is categorized under motion control hardware, specifically serving as a drop-in replacement or component for automated precision equipment.

Building on this classification, the motor design focuses on maximizing productivity through high-resolution feedback systems. Unlike standard industrial motors, this servo motor variant is specifically optimized for high-speed positioning tasks where load dynamics change frequently. It is widely applied in industries requiring rigorous synchronization, such as material handling, electronic manufacturing, and metal forming.

Technical Specifications

Rated Power: 1.5 kW.

Model Number: ESM13B-152-304-T2B0A00.

Input Phase: 3-PHASE.

Degree of Protection: IP67 (except shaft opening).

Encoder Feedback: High-resolution absolute encoder.

Optional Feature: Integrated 24 V holding brake.

Mounting Flange Size: 130 mm (ESM13 series standard).

System Compatibility: MotiFlex e180 / MicroFlex e190 series drives.

Operating Temperature: 0 °C to 45 °C (ambient).

Insulation Class: Class B.

Technical Highlights

The eSM series motors utilize a high torque density electromagnetic design that allows for faster acceleration and deceleration profiles than conventional motors. This efficiency directly translates to shorter cycle times in high-speed manufacturing sequences.

Additionally, the incorporation of an absolute encoder eliminates the need for repeated homing cycles after power-up. This feature minimizes machine setup time and ensures that position data is maintained instantly upon system activation.

Moreover, the ruggedized construction, rated to IP67, ensures that the motor remains operational in environments where dust or moisture ingress might compromise standard electrical components. This durability supports long-term stability and reduces the frequency of scheduled maintenance interventions.

Application Scenarios   CNC Machining: Enhances cutting accuracy by providing precise torque regulation during complex tool-path execution, reducing surface finish variations by up to 15%.   High-Speed Packaging: Enables rapid start-stop cycles in labeling or filling machines, significantly improving output throughput while maintaining sub-millimeter positioning accuracy.   Automated Assembly Lines: Maintains consistent tension and synchronization in conveyor-fed robotic workstations, effectively reducing component misalignment during assembly.   Material Handling: Provides stable, jerk-free movement for high-load armatures, ensuring structural integrity and longevity of mechanical linkages under high-duty cycles.

Selection Recommendations   Suitable Application: Precision pick-and-place systems requiring high frequency of operation (cycle time ≤0.5 s/part, repeatability ±0.01 mm, and consistent load profiles).    Unsuitable Application: Extreme heavy-duty crushing or pulverizing equipment where the impact load exceeds 150% of the rated torque, or environments with extreme temperature fluctuations (outside -20 °C to 60 °C) that exceed the motor's insulation class limits.   Comparative Insight: For applications requiring higher inertia tolerance or expanded torque ranges for heavier mechanical loads, please refer to the larger ESM18E series (e.g., ESM18E-292-154-T1B0A00) as an alternative reference model.

FAQ

1.What is the standard lead time for the ESM13B-152-304-T2B0A00,and is it currently in stock?

We typically keep this model in stock for immediate dispatch within 2 to 3 working days after payment clearance.For bulk orders exceeding 10 units,our logistics department requires an additional 7 to 10 days for processing.You can confirm current availability for your specific order volume by contacting us directly for a real-time status update.

2.Does this motor come with an absolute or incremental encoder?

This specific model includes a high-resolution absolute encoder as standard.This configuration allows the system to retain precise position information without requiring homing cycles upon power-up.We find this feature significantly reduces machine setup time and increases total productivity for our customers.

3.Is the ESM13B-152-304-T2B0A00 compatible with my existing servo drive?

This motor is engineered to operate seamlessly with ABB MotiFlex e180 and MicroFlex e190 servo drives,as well as most third-party drives matching its feedback protocol.If you are using a different control architecture,you must verify the feedback communication protocol compatibility with our technical team.We provide wiring diagrams and integration guides to assist in verifying your hardware matches our specifications.

4.How does the integrated holding brake(B0 option)on this high-speed motor handle emergency stops at 3000 RPM?

The integrated electromechanical holding brake is engineered strictly for static position holding and must not be engaged for dynamic braking during high-speed rotation.Applying the mechanical brake while running at 3000 RPM causes rapid friction lining degradation,mechanical shock,and excessive thermal buildup inside the housing.Emergency deceleration must always be handled electronically by the servo drive's dynamic braking circuit,with the mechanical holding brake engaging only after the shaft has reached a complete standstill.

5.What warranty coverage is provided for this purchase?

We provide a standard 12-month warranty on all new units from the date of shipment.This warranty covers manufacturing defects and internal component failures under normal operating conditions.If you encounter an issue,simply provide the serial number to our support team to initiate a diagnostic review and resolution process.

6.What is the typical unit price range,MOQ,and quote turnaround time for this 1.5 kW motor?

The market price for this unit typically ranges between$1,100 and$1,800 USD depending on order volume,with formal binding quotations provided within 24 business hours.The minimum order quantity is 1 unit,with total pricing determined by batch volume,real-time warehouse stock levels,and preferred international shipping terms.

7.Is the T2 winding configuration suitable for high-voltage 400V/480V industrial control networks?

The T2 code designates high-voltage winding insulation engineered specifically for direct integration with 380V–480V AC three-phase servo drives.This configuration complies with standard European and North American high-voltage plant distribution systems.

8.Is the motor shaft dynamically balanced to handle continuous operation at 3000 RPM?

All high-speed ESM13B rotors undergo factory dynamic balancing in compliance with ISO 1940 Grade G2.5 standards to minimize high-speed vibration.When fitting external couplings or pulleys,installers must ensure connected components match the same precision balance rating.

9.What HS code and shipping documentation are supplied for customs clearance?

This motor is exported under HS Code 850110,complete with a commercial invoice,detailed packing list,and Certificate of Origin(COO).Our logistics team assists with export declarations to streamline customs clearance at the destination port.

10.How does the built-in thermal sensor protect this motor against winding over-temperature during continuous high-load operation?

The integrated thermal sensor feeds real-time winding temperature data directly back to the servo drive to trigger protective alarms before insulation thermal limits are exceeded.If continuous overload or restricted cabinet airflow causes stator temperatures to spike,the connected drive automatically throttles output current or executes a safe stop to prevent permanent motor burnout.
