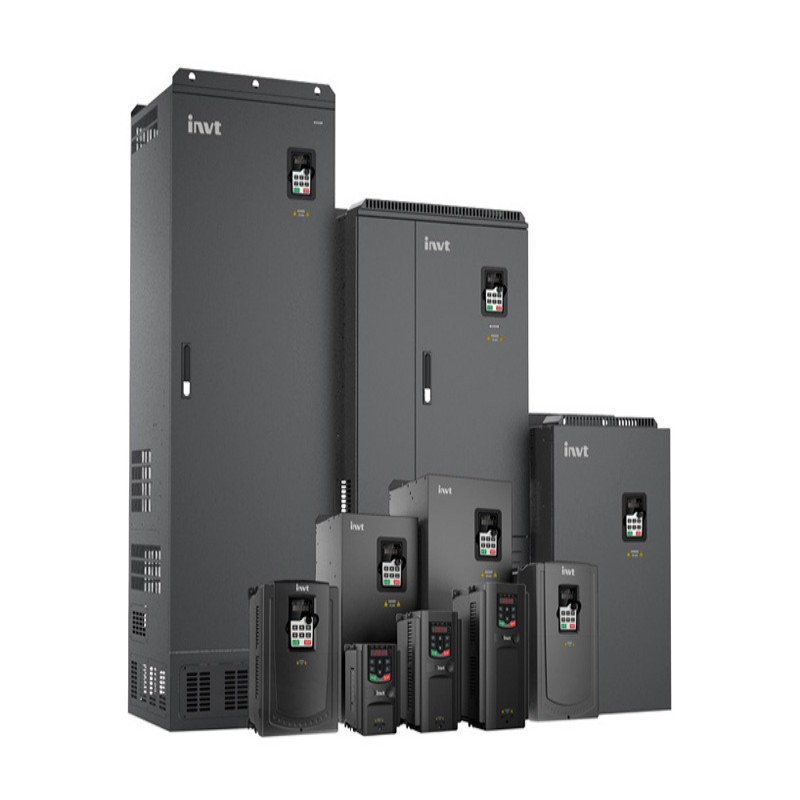

The INVT GD200A-0R7G-4 is a versatile universal inverter from the Goodrive200A series, designed to deliver precise control of three-phase asynchronous motors. Rated at 0.75 kW for 380 V AC supply, this model combines reliability and high performance in challenging industrial environments. It features advanced sensorless vector control (SVC) for accurate speed and torque regulation, ensuring stable operation under voltage fluctuations, temperature variations, and dusty conditions. Ideal for municipal water systems, conveyors, machine tools, and HVAC applications.
Design Philosophy: Durability and User-Friendliness
The GD200A-0R7G-4 emphasizes industrial resilience and ease of use. Its independent air duct design and semi-book-type structure enhance heat dissipation and resist dust accumulation. Protective coatings offer anti-static, anti-corrosion, and anti-dust properties, ensuring extended service life in harsh environments such as textiles, printing, and chemical industries.
Key Features
Advanced Sensorless Vector Control: Delivers 150% starting torque at 0.5 Hz and a speed range of 1:100, with ±0.2% steady-state speed accuracy and under 20 ms dynamic torque response.
Wide Voltage Input Range: Operates reliably with input voltages from 323 V to 440 V AC, adapting easily to unstable grid conditions.
Enhanced EMC Performance: Optional built-in C3 or external C2 filters ensure compliance with IEC/EN 61800-3 standards for reduced electromagnetic interference.
Integrated Functionality: Includes a braking unit (for models up to 30 kW), common DC bus support, and multiple braking options for quick and controlled stops.
User-Friendly Interface: Features a high-performance keyboard with parameter copy-paste功能, simplifying setup and maintenance.
Technical Specifications
Model: GD200A-0R7G-4
Series: Goodrive200A
Rated Power: 0.75 kW
Input Voltage: 3-Phase, 380 V AC (-15% to +10%)
Output Frequency: 0–400 Hz
Control Modes: Sensorless Vector Control (SVC), V/F Control
Starting Torque: 150% @ 0.5 Hz (SVC)
Overload Capacity: 150% (1 min), 180% (10 s), 200% (1 s)
Speed Accuracy: ±0.2% (SVC)
Communication: Modbus RTU
Protection Rating: IP20
Installation: Wall-mounted, flange-mounted, or floor-standing
Applications
Industrial machinery: Pumps, fans, compressors, conveyors, and machine tool spindles
Municipal infrastructure: Water supply pumping stations
Building automation: HVAC fans and pumps for energy efficiency
Material handling: Conveyor systems in packaging and production lines
Key Advantages
The GD200A-0R7G-4 offers robust performance, high accuracy, and reliability at a competitive cost. Its wide voltage range and environmental protection ensure continuous operation in demanding conditions. Integrated features reduce the need for external components, simplifying system design and lowering overall costs.
Packaging & Warranty
INVT uses protective packaging to ensure safe delivery. The product includes a standard warranty (typically 18 months), supported by a global technical network and accessible genuine spare parts.
Frequently Asked Questions
What are the benefits of sensorless vector control in this inverter?
Sensorless vector control provides superior low-speed torque, dynamic response, and speed regulation compared to standard V/F control. It enables high starting torque (150% at 0.5 Hz) and accurate speed stability (±0.2%), making it ideal for applications like conveyors and pumps that require reliable performance under variable loads.
How does the wide voltage input range improve operation?
The inverter accepts input voltages from 323 V to 440 V AC, ensuring reliable performance in areas with unstable power grids. This range protects against overvoltage and undervoltage conditions, reduces downtime, and maintains consistent motor operation.
What is the purpose of the built-in braking unit and common DC bus support?
The braking unit dissipates excess energy during deceleration through an external resistor, enabling rapid and controlled stops. Common DC bus support allows multiple inverters to share a single DC power source, improving energy efficiency by reusing regenerative power and reducing infrastructure costs.
