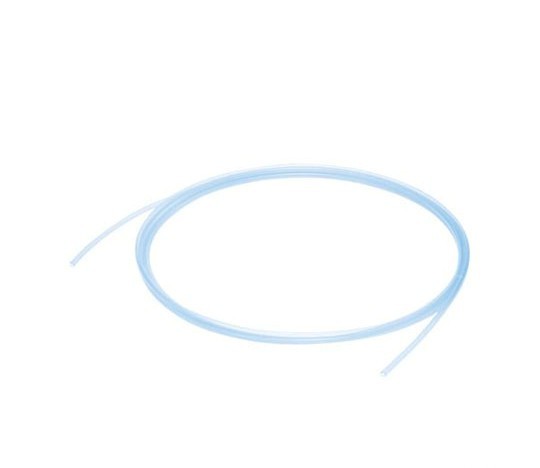

TLM0604BU-20 is a fluoropolymer (PFA) SMC hose produced by SMC, belonging to the TLM series. It is made from high-performance PFA material, offering excellent chemical resistance and thermal stability. This SMC PFA high temperature pneumatic tubing is widely used in industrial automation, food processing, pharmaceuticals, and semiconductor manufacturing due to its superior properties.
Product Specifications
Dimensions:
Outer Diameter (OD): 6 mm
Inner Diameter (ID): 4 mm
Length: 20 meters
Working Pressure:
Maximum working pressure: 1.5 MPa at 20°C
Pressure decreases with increasing temperature (e.g., 0.2 MPa at 260°C)
Operating Temperature:
Maximum operating temperature: 260°C
Liquid media (e.g., water, solvents): 0 to 100°C
Material and Compliance:
Material: PFA (perfluoroalkoxy resin)
Compliant with food hygiene regulations, FDA 177-1550, and UL94-V0 self-extinguishing fire standards
Other Features:
Color: Blue (translucent)
Minimum bend radius: 35 mm
Product Features
Chemical Resistance: PFA material provides excellent resistance to most chemicals, making it suitable for conveying corrosive liquids.
High-Temperature Performance: Capable of operating at temperatures up to 260°C.
Low Friction and Cleanliness: Smooth inner surface reduces fluid resistance and ensures high cleanliness, ideal for applications requiring high purity.
Transparency: Semi-transparent blue design allows for easy monitoring of fluid flow.
Applications
TLM0604BU-20 is suitable for various industrial and laboratory environments, including:
Food Processing: Conveying food-grade liquids such as beverages and sauces.
Pharmaceutical and Medical Equipment: Applications requiring high hygiene and cleanliness standards.
Industrial Automation: Conveying compressed air, inert gases, and other fluids.
Laboratory Equipment: Handling chemical reagents and solvents.
Installation and Maintenance
Installation Environment: Ensure a clean, dust-free environment free from corrosive gases and strong electromagnetic interference.
Bending Radius: Ensure the bending radius is at least 35 mm to avoid deformation.
Connections: Use compatible fittings such as LQ or KQ series for secure connections.
Regular Inspection: Check for signs of wear, cracks, or deformation, and ensure connections are tight.
Cleaning: Thoroughly blow out or clean the SMC hose before use to remove internal impurities.
Precautions
Temperature and Pressure Limits: Strictly adhere to temperature and pressure limits to avoid damage.
Media Compatibility: Ensure the conveyed media are compatible with PFA material.
Safety: Always ensure the SMC PFA high temperature pneumatic tubing is depressurized during installation and maintenance.
Common Questions and Answers
Chemical Resistance: TLM0604BU-20 offers excellent resistance to most chemicals and is suitable for conveying corrosive liquids.
Maximum Operating Temperature: The maximum operating temperature is 260°C, with pressure limits decreasing at higher temperatures.
Fittings Selection: Use dedicated fittings like LQ or KQ series to ensure reliable connections.
Minimum Bend Radius: The minimum bend radius is 35 mm to prevent SMC hose deformation.
Suitability for Food Processing: Compliant with food hygiene regulations and FDA standards, making it suitable for food-grade applications.
Cleaning: Use compressed air to blow out the SMC PFA high temperature pneumatic tubing or rinse with water or cleaning agents before use.
Service Life: The lifespan depends on the operating environment and maintenance. Regular inspections can extend its service life.
Compressed Air Applications: Suitable for compressed air systems with a maximum pressure of 1.5 MPa at 20°C.
Transparency: The semi-transparent blue design allows for easy monitoring of fluid flow.
Pricing: The pricing for the SMC hose varies among different suppliers. Misumi offers it at $162.26 per roll, RS Components lists it at HK$2,687.21 per roll, and SMC Japan provides it for ¥13,800 per roll.
