The HollySys HIG Industrial Gateway Server Modbus Converter provides robust data acquisition and protocol conversion for complex industrial networks. Integrating embedded computing platforms and versatile communication interfaces, this industrial gateway server addresses multi-protocol integration challenges in power systems and renewable energy stations.
Industrial automation engineers frequently encounter severe networking bottlenecks caused by heterogeneous legacy devices, fragmented communication protocols, and high-density data collection requirements. Deploying a dedicated modbus converter and industrial gateway server eliminates protocol isolation by translating hundreds of standard and proprietary protocols into unified data streams. This architecture ensures reliable data acquisition, local storage, and high-speed multi-master forwarding without dropping critical process packets or triggering communication timeouts.
Technical Specifications
Supported Protocols: 50+ standard industrial protocols and 500+ variant or custom protocols
Processor Architecture: ARM and X86 embedded processor options
Operating System: Linux-based embedded platform

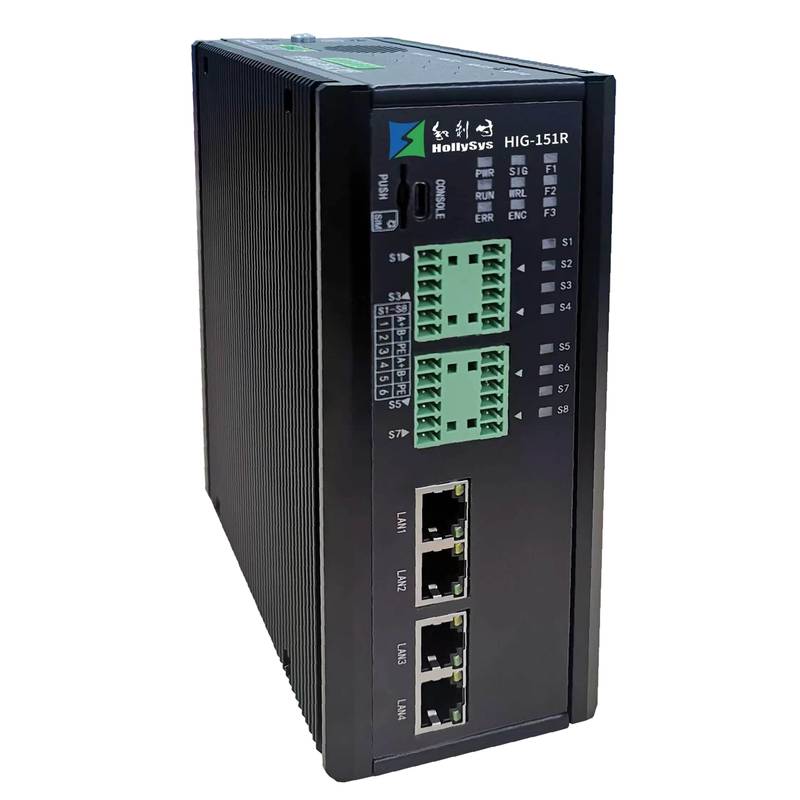

Model HIG-151R Interface: 4 Ethernet ports, 8 serial ports, rail-mounted installation, 25,000 capacity points @ Standard Load
Model HIG-513U1 Interface: 8 Ethernet ports, 8 serial ports, 1U rack-mounted installation, 100,000 capacity points @ Standard Load
Operating Temperature: -40°C - 70°C @ Full Industrial Load
Power Supply: Low power consumption, fanless thermal design
Electromagnetic Compatibility: EMC Level 4 compliance for power applications @ Substation Environments
Insulation Performance: Meets power equipment insulation standards @ High-Voltage Conditions
Data Storage: Integrated historical data logging capacity @ On-Board Flash Memory
System Integration and Hardware Setup
System integration requires rigorous physical layer connection practices to ensure uninterrupted communication inside high-interference industrial cabinets. Field technicians should utilize shielded twisted pair cables for all RS-485 serial loops and ground the cable shields exclusively at one end to prevent ground loops. When terminating Ethernet links, industrial-grade RJ45 connectors or M12 aviation plugs must maintain continuous 360-degree contact with the chassis shielding ground. Proper cable routing separates low-voltage signal lines from high-voltage power trunking by a minimum clearance distance of 300 mm to suppress electromagnetic coupling. Power supply inputs require stable DC distribution coupled with external surge protection modules to safeguard internal circuits against transient voltage spikes.
Reliability and Environmental Durability
Harsh industrial environments demand resilient hardware design capable of withstanding extreme thermal shifts and severe electromagnetic disturbances. The unit features a passive, fanless cooling architecture that utilizes an extruded aluminum enclosure to dissipate thermal energy effectively across a wide operating range of -40°C to 70°C. Electrical isolation barriers on communication ports protect internal processing components from high-voltage surges typically found in high-voltage switchgear yards and wind turbine nacelles. Compliance with EMC Level 4 standards guarantees immunity against electrostatic discharge, fast electrical transients, and radiated electromagnetic fields. Furthermore, solid-state internal storage and component selection contribute to an extended mean time between failures, ensuring stable operation in unattended remote sites.
Selection Guidance and Alternative Options
Choosing the appropriate communication management machine depends heavily on point count capacity, physical installation constraints, and interface port density requirements. The modular hardware platform accommodates various expansion boards to match specific field expansion needs without requiring complete system redesigns. For compact control cabinets requiring DIN-rail mounting, the HIG-151R model provides an efficient configuration with 4 Ethernet ports, 8 serial ports, and support for up to 25,000 data points. For larger substation automation or central control rooms requiring rack integration, the HIG-513U1 model delivers 8 Ethernet ports, 8 serial ports, and an expanded capacity of 100,000 data points in a 1U form factor. Beijing Zhongping Technology provides comprehensive technical support and stock availability for cross-reference selection, helping engineering teams identify the optimal hardware configuration for their specific protocol conversion requirements.
Frequently Asked Questions (FAQ)
1. What are the standard lead times and delivery schedules for stocking orders?
Standard stock items are dispatched within 3 to 5 business days, while customized configuration requests require formal project scheduling verification.
2. What warranty coverage is provided for this industrial gateway hardware?
A standard 12-month commercial and technical warranty covers manufacturing defects and hardware performance failures from the date of shipment.
3. How many protocol types can be processed simultaneously on a single unit?
The embedded platform supports over 50 standard protocols and more than 500 variant or custom protocols, running concurrent mapping tasks based on system capacity limits.
4. Does the hardware support IEC 61850 substation automation protocols?
Yes, specific model variants support IEC 61850 MMS, GOOSE messaging, and DL/T 860 CMS protocols for digital substation applications.
5. Can expansion boards be installed on-site after initial deployment?
Modular models support flexible field-installable expansion cards to add serial or Ethernet communication interfaces as project requirements scale.
6. What operating system drives the embedded software architecture?
The device operates on a hardened, real-time Linux operating system optimized for deterministic communication and data processing tasks.
7. How does the unit handle historical data storage during network disconnection?
Integrated non-volatile memory provides local historical data buffering, automatically forwarding logged records to the master station once network connectivity is restored.
8. What is the method for configuring point tables and protocol mappings?
Configuration is executed through dedicated engineering software tools that support point-to-point mapping, scaling, and multi-master forwarding parameter setups.
9. Are fanless thermal designs effective in high ambient temperature enclosures?
The passive thermal dissipation architecture relies on natural convection, maintaining safe operating temperatures up to 70°C without mechanical fans.
10. What level of electromagnetic compatibility compliance is certified?
The equipment complies with EMC Level 4 requirements, satisfying strict immunity standards mandated for electrical power utility installations.
