Product Overview

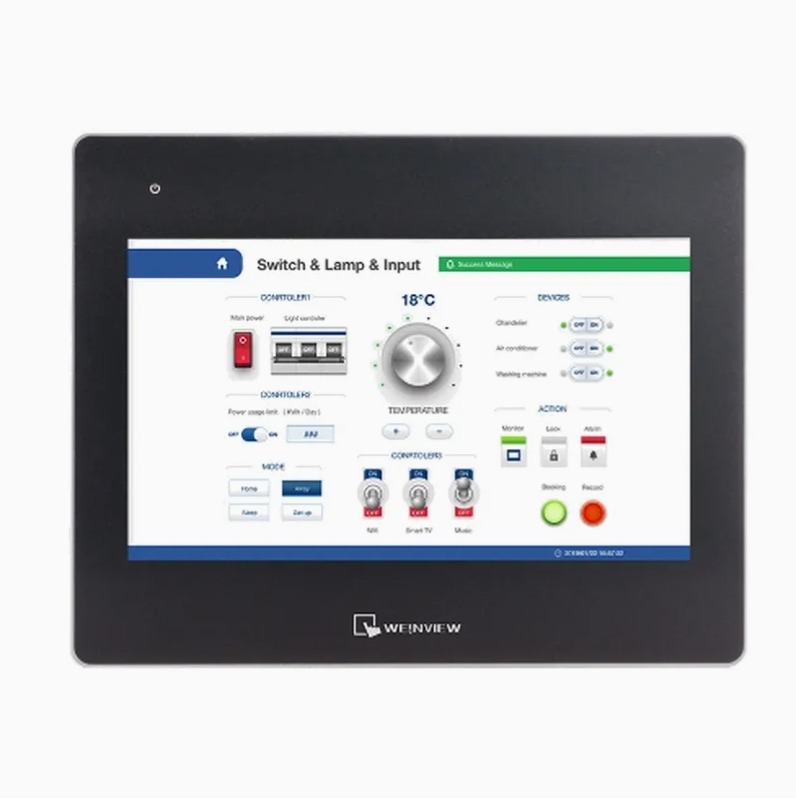

The Weinview TGMA63D-ET is a 6.3-inch compact HMI engineered for space-limited panels that still demand full-color process visualization. Its 800 × 480 TFT screen and 400 cd/m² LED backlight guarantee crisp images—even under bright factory lighting or direct sunlight—while the IP66-rated front bezel withstands dust and wash-down.
Key Specifications
Display: 6.3" TFT, 800 × 480 pixels, 16.7 M colors, 400 cd/m², LED 50,000 h lifetime
Touch: 4-wire resistive, 1 million actuations, glove-/water-friendly
CPU & Memory: 32-bit RISC, 256 MB RAM, 128 MB Flash
Interfaces:
– Ethernet × 2 (10/100 Mbps)
– RS-232, RS-485 (max 115.2 kbps)
– USB Host 2.0, USB Device 2.0
– CANopen master/slave
Real-time Clock & Storage: 128 kB battery-backed SRAM, SD card slot (up to 32 GB)
Power: 24 V DC ±20 %, 10 W typical, 15 W max
Environment: 0–50 °C operating, –20–60 °C storage, 10–90 % RH non-condensing
Mechanical: 156 × 97 mm cut-out, 172 × 113 × 39 mm overall, 0.55 kg
Core Functions
32-bit RISC CPU with 256 MB RAM and 128 MB Flash for smooth graphics and data logging
Resistive touch rated for 1 million presses—works with gloves or wet fingers
Dual Ethernet, RS-232, RS-485, USB Host/Device, and CANopen for instant PLC, drive, or barcode connectivity
Built-in data gateway and MQTT client for cloud dashboards and remote maintenance
EasyBuilder Pro software: drag-and-drop design, 400+ PLC drivers, and multi-language support
Typical Applications
Mount the TGMA63D-ET on compact packaging machines, battery formation rigs, semiconductor handlers, or solar inverters where a 7" screen is too large. Its IP66 front bezel and wide 0–50 °C operating range make it ideal for wash-down food lines and dusty woodworking stations.
Quick Setup
Clip the unit into a 156 × 97 mm cut-out, wire power (24 V DC), and load your project via USB or Ethernet. Auto-detect finds your PLC brand in seconds, and the one-hand SD-card slot backs up recipes and alarm logs without opening the cabinet.
FAQs
Q1: Does the TGMA63D-ET support cloud connectivity?
A: Yes. Built-in MQTT and OPC UA clients publish data to AWS, Azure, or Weinview’s own cloud with no extra hardware.
Q2: How long do the backlights last?
A: The LED backlight is rated for 50,000 hours at 25 °C—over 5.7 years of continuous operation.
Q3: Can I use my existing EasyBuilder Pro projects?
A: Absolutely. The TGMA63D-ET is fully compatible with EasyBuilder Pro; simply select the model when compiling and download.
