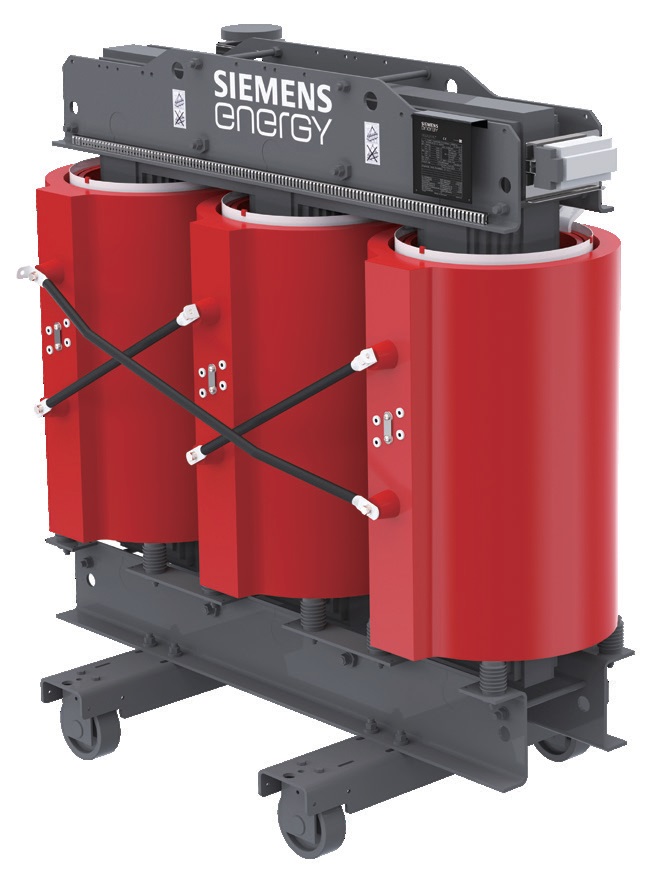

Siemens 20kV 200-2500kVA Medium Voltage MV Transformer Cast Resin Distribution

This 20kV cast-resin distribution transformer is engineered for medium-voltage indoor distribution in commercial and industrial facilities, featuring a rated capacity of 200 - 2500 kVA. Built with vacuum-cast foil windings and an oil-free fire-safe construction, it delivers reliable performance while maintaining low operational loss levels.

Operating within industrial distribution networks requires resilient equipment that can withstand thermal and mechanical stresses without unexpected downtime. This dry-type distribution transformer utilizes advanced vacuum-pressure casting technology to encase its windings in high-grade epoxy resin, effectively preventing moisture ingress and resisting micro-cracks under fluctuating loads. High-voltage tappings at 20 kV, 22 kV, and 24 kV allow flexible adaptation to varying grid potentials, transforming them efficiently down to 0.4 kV for downstream low-voltage switchboards. The integration of foil windings instead of traditional wire wound designs significantly enhances short-circuit mechanical stability by evenly distributing axial forces during fault conditions, making it an optimal choice for high-demand commercial complexes, manufacturing plants, and critical infrastructure facilities.

Technical Specifications

Rated Primary Voltage: 20 kV, 22 kV, 24 kV @ No-Load

Rated Secondary Voltage: 0.4 kV @ No-Load

Rated Capacity: 200 - 2500 kVA @ Continuous Operation

High Voltage Tapping Range: ± 2 x 2.5% @ Off-Circuit

Vector Group: Dyn11 / Yyn0 @ Standard Configuration

Cooling Method: AN / AF @ Natural Air or Forced Air

Winding Material: Copper or Aluminum @ Conductor Specification

Insulation System Temperature Class: Class F / Class H @ Thermal Rating

Enclosure Protection Level: IP00 (Standard) / IP20 / IP23 @ Indoor Installation

Dielectric Withstand Voltage: 50 kV / 125 kV @ Power Frequency and Lightning Impulse

Product Overview and Key Features

The 20kV resin cast distribution transformer represents a pinnacle of dry-type transformer engineering, specifically tailored for safe and efficient indoor medium-voltage distribution. Its primary design philosophy centers on eliminating fire hazards associated with oil-filled alternatives while delivering dependable voltage transformation across capacities ranging from 200 kVA to 2500 kVA.

Several core characteristics define its operational advantages in the field. The vacuum-cast epoxy resin winding structure provides exceptional resistance against moisture, chemical pollutants, and industrial dust, ensuring stable performance in humid or mildly corrosive environments. Foil windings utilized in both high-voltage and low-voltage sections reduce eddy current losses and improve thermal dissipation, resulting in cooler operation and prolonged insulation life.

The absence of insulating oil removes explosion risks and eliminates the need for complex oil containment systems, making it exceptionally safe for indoor installations inside hospitals, high-rise buildings, and data centers. Furthermore, its low-loss core design aligns with strict energy efficiency standards, minimizing idle power consumption and reducing life-cycle operating expenses.

Constructed with grain-oriented silicon steel cores assembled with precision step-lap joints, the unit achieves remarkably low acoustic noise levels. This acoustic performance allows the transformer to be installed closer to load centers, reducing low-voltage cable run lengths and associated copper losses. Optional monitoring accessories, such as PT100 temperature sensors embedded in the windings linked to digital controllers, enable real-time thermal tracking via RS485 communication ports.

Applications and Selection Guide

This transformer is ideally suited for environments requiring high safety standards and reliable medium-voltage step-down capabilities. In commercial complexes, data centers, and healthcare facilities, its fire-safe, oil-free construction satisfies strict building codes while keeping audible noise emissions to a minimum. Industrial manufacturing plants benefit from its high short-circuit dynamic stability, which handles heavy motor starting loads and transient current spikes without sustaining internal winding damage.

Selecting the correct unit involves a structured evaluation path. Engineers must first verify the primary system voltage matching the 20 kV, 22 kV, or 24 kV tapping requirements, followed by calculating the peak and continuous load demands to determine the appropriate kVA rating between 200 kVA and 2500 kVA. Next, energy efficiency expectations dictate the core loss parameters, while environmental conditions determine whether an IP00 open chassis or an IP20/IP23 protective enclosure is necessary. Special configurations, such as dual low-voltage outputs or enhanced forced-air cooling packages, can be specified for unique installation constraints.

Installation and Compliance

Proper mechanical placement requires securing the transformer base to a flat, level concrete foundation using designated anchor points or directional swivel rollers for precise positioning. For indoor spaces, enclosures rated IP20 or IP23 prevent accidental contact with live high-voltage parts while allowing adequate natural convection airflow. High-voltage termination can be achieved via standard open-type porcelain bushings or separable elbow connectors, depending on the switchgear interface, while low-voltage connections utilize flexible copper busbars to absorb thermal expansion and operational vibrations.

Internal temperature monitoring relies on PT100 sensors embedded directly within the low-voltage windings, connected to a dedicated control unit that provides localized digital readout and relay outputs for alarm and trip signals. Grounding is mandatory across the core frame, enclosure, and electrostatic shield to comply with safety regulations and mitigate electromagnetic interference. The off-circuit tap changer link must only be adjusted while the transformer is completely de-energized and isolated from the power grid.

The product design and routine manufacturing tests comply with relevant international standards governing dry-type transformers, including IEC and GB specifications. Type tests validate thermal withstand capabilities, dielectric impulse strength, and short-circuit mechanical endurance under laboratory conditions.

Frequently Asked Questions

Q1: What is the current stock availability and standard shipping lead time for this 20kV transformer model?

A: Beijing Zhongping Technology maintains strategic regional inventory for standard capacity ratings, allowing for rapid dispatch and minimizing project delays associated with extended overseas manufacturing lead times.

Q2: What warranty coverage and after-sales support apply to this equipment?

A: Every unit is backed by a comprehensive 12-month operational warranty, supported by Beijing Zhongping Technology's technical service team for pre-commissioning guidance and rapid response troubleshooting.

Q3: What are the main differences and selection criteria between copper and aluminum winding conductors?

A: Copper conductors offer higher electrical conductivity and mechanical strength, resulting in a more compact footprint, whereas aluminum provides a lighter and more cost-effective solution for standard applications where space constraints are minimal.

Q4: Can this dry-type transformer be installed in outdoor environments?

A: The standard configuration is designed for indoor use within a protected enclosure; outdoor deployment requires a specialized weatherproof housing rated at least IP23 or higher with customized anti-corrosion treatment.

Q5: What is the maximum short-term overload capacity of this resin cast transformer?

A: Resin cast transformers can handle moderate short-term overloads in accordance with IEC loading guides, provided that the winding hot-spot temperature does not exceed the maximum thermal limits defined by the Class F or Class H insulation system.

Q6: What routine maintenance procedures are required for an oil-free distribution transformer?

A: Maintenance is minimal due to the sealed solid insulation system, requiring only periodic visual inspections for dust accumulation, tightening of terminal connections, and functional testing of the temperature controller and cooling fans.

Q7: How does the acoustic noise level compare during operation, and is it suitable for noise-sensitive locations?

A: The core is constructed with high-grade grain-oriented silicon steel utilizing step-lap joints, keeping operational noise significantly below standard regulatory thresholds and making it ideal for hospitals and commercial office buildings.

Q8: What energy efficiency standard does the 13-type low-loss design conform to?

A: The 13-type low-loss series is engineered to match advanced regional energy efficiency benchmarks, significantly reducing no-load and load losses to lower total cost of ownership over the operational lifecycle.
