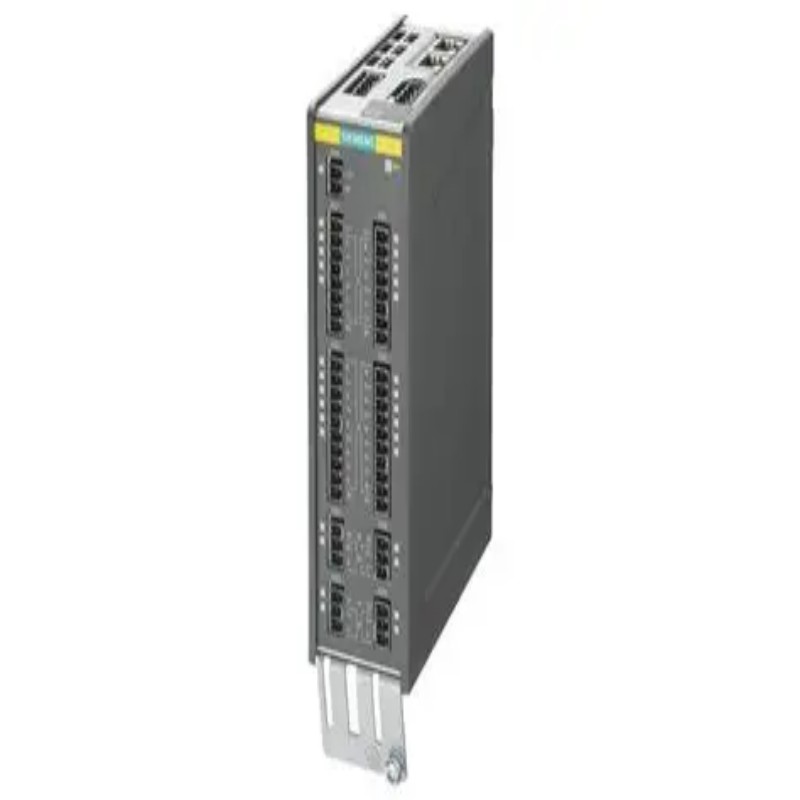

The Siemens 6SL3120-1TE13-0AA3 is a fundamental component within the SINAMICS S120 drive system, representing a booksize motor module designed for precision and efficiency. As a dedicated single motor module, it delivers controlled power from a common DC bus directly to one motor, enabling precise control over speed and torque. This compact, internally air-cooled unit is engineered for seamless integration into multi-axis automation systems, providing a reliable and scalable solution for a vast range of industrial applications, from packaging and material handling to industrial robotics.
1. Product Core: Technical Specifications and Functional Design
This single motor module is designed to operate as part of a larger SINAMICS S120 system, where a central Control Unit (e.g., CU320-2) manages one or more such modules via the DRIVE-CLiQ network.
1.1 Key Technical Data
Parameter
Specification
Article Number 6SL3120-1TE13-0AA3
Product Type SINAMICS S120 Motor Module
Module Configuration Single Motor Module
Design Booksize, internal air cooling
Input DC Link Voltage 600 V DC (supplied from a Line Module)
Rated Output Current 3 A
Output Power Approx. 1.5 kW (at 400 V AC)
Technology IGBT-based inverter with vector control
Communication DRIVE-CLiQ
1.2 In-Depth Functional Analysis
Dedicated Single-Axis Control: Unlike a multi-axis drive, this single motor module is exclusively dedicated to controlling one motor. This focused design simplifies commissioning and troubleshooting, as all parameters and diagnostics for that specific axis are contained within this module's control loop managed by the overarching Control Unit.
Booksize Form Factor: The booksize motor module is designed for high-density mounting in control cabinets. Its standardized, narrow width allows multiple units to be mounted side-by-side on a mounting rail, significantly saving space compared to larger chassis-type units. The internal fan ensures effective heat dissipation without requiring external ducting.
Vector Control Performance: The module executes sophisticated vector control algorithms dictated by the Control Unit. This allows for precise regulation of both speed and torque, providing high dynamic response for demanding applications. It enables smooth operation across the entire speed range, including full torque at standstill.
Full System Integration via DRIVE-CLiQ: The DRIVE-CLiQ interface is the lifeline of the S120 system. It allows the central Control Unit to automatically detect the motor module, download the correct parameters, and enable comprehensive diagnostic and safety functions, including real-time monitoring of current, temperature, and fault states.
2. Performance Advantages and Application-Specific Value
The 6SL3120-1TE13-0AA3 delivers value through its focused performance, ease of use, and system-level efficiency.
Optimized for Multi-Axis Systems: In complex machinery with several moving axes, such as a packaging machine or a robot, using individual single motor modules provides a modular and scalable architecture. Each axis can be independently configured and serviced, enhancing system flexibility and uptime.
Space-Efficient Design: The booksize motor module design is a key enabler for building compact control cabinets. By allowing dense packing of drive components, it helps OEMs design smaller and more integrated machines, which is a critical requirement in today's manufacturing landscape.
High Dynamic Response and Precision: The combination of powerful control algorithms and fast-switching IGBT technology results in excellent dynamic performance. This is crucial for applications requiring rapid acceleration and deceleration or precise positioning, ensuring high product quality and throughput.
3. Expanded Perspective: The Role of Distributed Motor Modules in Modern Automation
Understanding the system architecture that this single motor module operates within is key to appreciating its strategic value in industrial automation.
3.1 System Architecture: Centralized Control vs. Distributed Power
The SINAMICS S120 system exemplifies a hybrid architecture that leverages the strengths of both centralized intelligence and distributed power conversion.
Centralized Intelligence (Control Unit): A single Control Unit (CU) serves as the brain of the entire drive system. It houses the processing power for all motion control tasks, from basic velocity control to complex interpolated axis movements. This centralization simplifies programming and data management.
Distributed Power (Motor Modules): The single motor module, like the 6SL3120-1TE13-0AA3, acts as the muscle. Physically located close to the motors they control, these modules reduce the length of expensive motor power cables and minimize electromagnetic interference (EMI). This distributed power stage, fed from a common DC bus, creates a clean, efficient, and scalable power distribution network.
Selection Insight: This architecture is ideal for machine builders who need to control multiple axes with a high degree of coordination but want to avoid the cost and cabling complexity of using individual, standalone drives for each axis.
3.2 Critical Considerations for Implementation
Successfully implementing a system based on these compact motor modules requires attention to several key details.
Sizing and Coordination: The single motor module must be correctly sized to the motor it will control, based on the motor's continuous and peak current requirements. Furthermore, the upstream booksize Line Module (ALM, SLM, or BLM) must be sized to supply the combined power of all motor modules on the common DC bus.
Cooling and Clearances: While the modules are internally cooled, the overall control cabinet's thermal management must be designed to handle the total heat dissipation from all components. Adherence to Siemens' installation guidelines regarding minimum clearances between modules is essential to ensure adequate airflow and prevent overheating.
Configuration and Safety: The entire drive system is configured using Siemens' SINAMICS Startdrive software within the TIA Portal. This integrated environment streamlines the commissioning process. Safety functions, such as Safe Torque Off (STO), are implemented via the Control Unit and are routed through the DRIVE-CLiQ network to the motor module.
4. Frequently Asked Questions (FAQs)
1. What is the key difference between a Motor Module and a Servo Drive?
A single motor module is a power amplifier that relies on a central Control Unit for its intelligence and motion control capabilities. A traditional standalone servo drive contains both the power stage and the control processor in one housing. The modular S120 approach offers greater flexibility and easier coordination in multi-axis systems.
2. Can this 3A module control any type of motor?
This module is primarily designed to control AC induction motors and synchronous servo motors. The specific motor type must be configured in the Control Unit, which then applies the appropriate control algorithm (e.g., vector control for induction motors). The motor's data must be entered accurately for optimal performance.
3. Why is the DRIVE-CLiQ connection so important?
DRIVE-CLiQ enables automatic topology detection. When the system is powered on, the Control Unit automatically identifies all connected booksize motor modules and their positions in the DRIVE-CLiQ network. This eliminates manual addressing, reduces commissioning time, and provides a clear overview of the system structure for diagnostics.
4. What happens if the Control Unit fails?
If the central Control Unit fails, all single motor modules connected to it will cease to operate, as they rely on the CU for their control signals. This is a consideration for system redundancy. However, the CU can be hot-swapped in redundant configurations to maximize system availability.
5. How is this 'booksize' design different from a 'chassis-type' unit?
A booksize motor module is a compact, standardized component for building block-style installation inside a control cabinet, ideal for multi-axis machines. A chassis-type unit is a larger, self-contained drive with its own heatsink, often designed for higher power levels and mounted directly onto a backplate or chassis, typically controlling a single, high-power motor.
