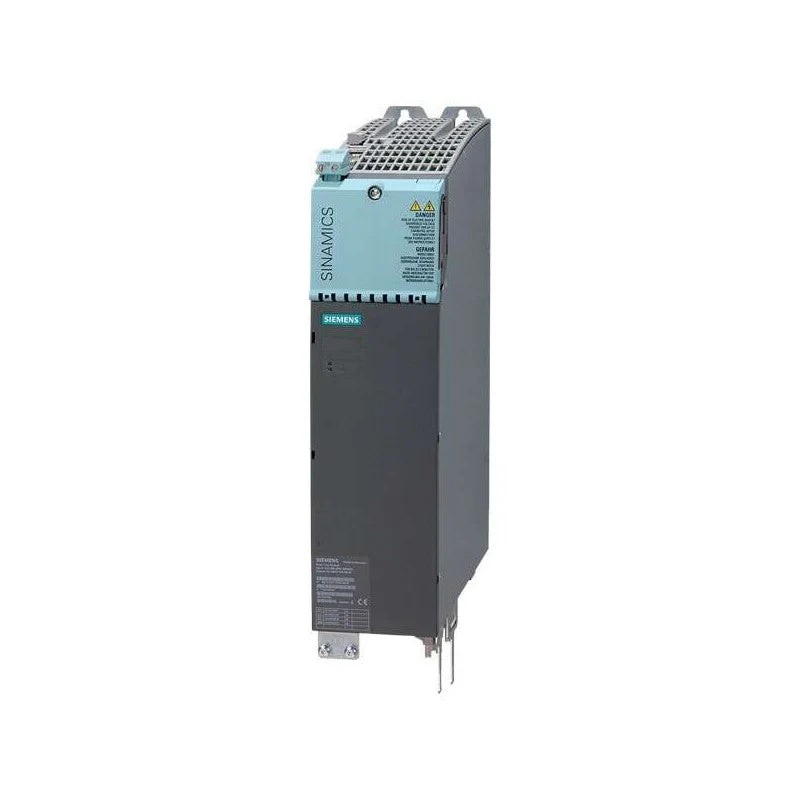

Siemens 6SL3130-1TE22-0AA0 Basic Line Module 20kW 600VDC Power Supply

Siemens SINAMICS S120 Basic Line Module 6SL3130-1TE22-0AA0: The Economical and Robust Power Supply for Standard Drive Applications

The Siemens 6SL3130-1TE22-0AA0 is a Basic Line Module (BLM) within the SINAMICS S120 drive family, embodying a design philosophy centered on cost-effectiveness and reliability for standard industrial applications. This 20kW, booksize-formatted power supply module serves as a fundamental component in DC bus systems, performing the essential task of converting incoming three-phase AC power into a DC voltage that feeds downstream motor modules.

Its straightforward, non-regenerative operation makes it an ideal choice for applications with infrequent braking or where process dynamics do not justify the investment in more advanced regenerative modules. Designed for integration into control cabinets, this German-engineered module provides a solid and dependable power foundation for a wide range of automation tasks, from simple pump and fan drives to conveyor systems.

Product Core: Technical Specifications and Functional Design

 The 6SL3130-1TE22-0AA0 operates on a simple rectification principle, utilizing diodes or thyristors to achieve its power conversion. This design choice is the key to its robustness and affordability.

Key Technical Data:

Parameter    Specification Article Number    6SL3130-1TE22-0AA0 Product Type    SINAMICS S120 Basic Line Module (BLM) Design    Booksize Input Voltage    3 AC 380 - 480 V ± 10%, 47-63 Hz Output Power    20 kW Output DC Voltage    Approx. 600 V DC (Non-regulated, ~1.35 x Input Voltage) Rated DC Current    34 A Regenerative Capability    No Cooling Method    Internal air cooling Communication    Integrated DRIVE-CLiQ interface

In-Depth Functional Analysis:

Non-Regenerative Rectification: As a BLM, this module functions as a one-way street for electrical energy. It can only convert AC power from the grid to DC power for the drive system. When the motor acts as a generator (e.g., during deceleration), the BLM cannot invert this energy back to the grid. This braking energy must be dissipated externally, typically through a braking resistor and associated braking unit.

Non-Regulated DC Link: The output DC voltage is not stabilized by active components. It fluctuates in proportion to the input AC voltage, typically around 1.35 times its value. For a 400V supply, this results in a DC bus voltage of approximately 540V. While this is sufficient for many applications, it means the system is more susceptible to performance variations caused by mains voltage sags.

Integrated Pre-charging Circuit: Like other S120 line modules, the BLM incorporates a pre-charging circuit to safely energize the DC link capacitors upon startup, preventing excessive inrush current. For this 20kW BLM, this circuit includes a pre-charging resistor and an internal bypass contactor.

Full System Integration via DRIVE-CLiQ: Despite its basic power functionality, the module is fully integrated into the S120 control architecture. The DRIVE-CLiQ interface allows the central Control Unit (e.g., CU320-2) to automatically identify the module, monitor its status (such as temperature and faults), and manage the overall power structure seamlessly.

Application Scenarios and Operational Value The 6SL3130-1TE22-0AA0 delivers the greatest value in applications where its limitations are not a hindrance and its cost advantages are fully realized.

Cost-Driven Standard Applications: It is perfectly suited for driving pumps, fans, compressors, and conveyors where controlled braking and energy recovery are not required. In these continuous-duty applications, the initial cost savings over an SLM or ALM can be significant without compromising operational performance.

Systems with Low Regenerative Loads: In machinery where braking events are infrequent and of low energy, the cost of adding a braking resistor is often lower than the price difference between a BLM and a regenerative module. This makes the BLM an economically sound choice.

Simplified System Architecture: For OEMs building standard machines, the BLM offers a straightforward and reliable power supply solution. Its integration into the S120 ecosystem via DRIVE-CLiQ ensures easy commissioning and diagnostics, while its electrical simplicity reduces design complexity.

Expanded Perspective: The Strategic Role of Basic Line Modules in a Diverse Portfolio

Understanding the BLM's position in the wider context of power conversion technologies is crucial for making a technically and economically optimal selection.

The Power Module Hierarchy: BLM vs. SLM vs. ALM The choice between a BLM, Smart Line Module (SLM), and Active Line Module (ALM) is a fundamental system design decision with direct implications for performance, energy consumption, and cost.

Basic Line Module (BLM - This Model): The entry-level, most economical option. It is non-regenerative, has a non-regulated DC link, and requires an external braking resistor for deceleration. It is the default choice for cost-sensitive applications without frequent braking.

Smart Line Module (SLM): The middle-ground solution. It is regenerative, meaning it can feed braking energy back to the grid, saving energy and eliminating the braking resistor. However, it shares the BLM's characteristic of a non-regulated DC link. It is ideal for applications with frequent braking where a stable DC voltage is not critical.

Active Line Module (ALM): The high-performance option. It is regenerative and provides a perfectly regulated DC link voltage (e.g., a stable 600V), ensuring consistent motor performance regardless of grid fluctuations. It also offers a near-perfect power factor. This comes at a higher initial cost and is reserved for high-dynamic, precision applications.

Decision Framework:

Choose a BLM when the application has infrequent braking, low energy recovery potential, and the primary driver is lowest initial cost.

Choose an SLM when energy savings from regeneration are desired and the DC link voltage can vary.

Choose an ALM when the process requires an absolutely stable DC link voltage for maximum performance and superior power quality.

Critical System Design and Implementation Notes Implementing a BLM-based drive system requires careful attention to its specific needs and limitations.

The Mandatory Braking Unit: A braking unit (e.g., from the 6SL3000-0BE series) and a suitably sized braking resistor are not optional accessories for a BLM; they are essential system components. This unit switches the resistor into the circuit whenever the DC bus voltage exceeds a threshold, dissipating the braking energy as heat. The resistor must be installed outside the control cabinet with adequate ventilation.

Pre-charging and External Components: While the BLM has an internal pre-charging circuit, an external line contactor is still required for the main power input. The control sequence must first close this line contactor to initiate pre-charge, and once complete, the BLM's internal bypass contactor closes.

Cooling and Physical Installation: As a booksize module, it relies on the controlled airflow within a booksize stack. Adherence to Siemens' installation guidelines regarding clearances, torque specifications for power connections (e.g., M6 screws with 6 Nm torque), and the overall cabinet cooling capacity is vital for long-term reliability.

Frequently Asked Questions (FAQs)

What is the most significant operational limitation of a BLM compared to an SLM?

The most significant limitation is its inability to regenerate braking energy. An SLM can feed this energy back to the grid, reducing overall power consumption. In contrast, a BLM must waste this energy as heat in a braking resistor. This not only increases electricity costs but also generates unwanted heat within the facility, which may require additional cooling.

How does the "non-regulated" DC link voltage affect my motor's performance?

A non-regulated DC link means the voltage available to the motor modules is directly tied to the mains voltage. If the line voltage sags by 10%, the DC bus and the motor's available voltage and torque will also drop. For robust applications like pumps and fans, this is usually acceptable. For high-precision spindles or applications that must maintain full torque during brownouts, the stable voltage of an ALM is necessary.

Is the DRIVE-CLiQ interface on this BLM used for control?

No, not for active control of the power conversion. The DRIVE-CLiQ interface on the BLM is primarily used for identification, monitoring, and safety. It allows the system's Control Unit to automatically detect the module, read its type plate, monitor its status (temperature, faults), and implement safety functions like Safe Torque Off (STO). The actual rectification process is a passive, non-controlled function.

Can this 20kW BLM supply multiple motor modules on a common DC bus?

 Yes, absolutely. This is a core concept of the S120 system. This 20kW BLM establishes a common DC bus that can supply any combination of S120 motor modules (e.g., one 10kW and two 5kW modules). The total continuous power drawn by all motor modules from the DC bus should not exceed the BLM's 20kW power rating.

What are the key maintenance points for a BLM?

Maintenance is largely preventative. The primary focus should be on ensuring the cooling paths are clean and unobstructed. Periodically check the tightness of the high-power connections during scheduled downtime. The most critical maintenance item is often the external braking resistor; ensure it is clean and has unrestricted airflow to prevent overheating. Monitoring the module's temperature and fault history via the controller provides valuable data for predictive maintenance.
