SIEMENS 7MB2521-0AA00-1AA0 Precision H2 Gas Composition Analyzer

Overview

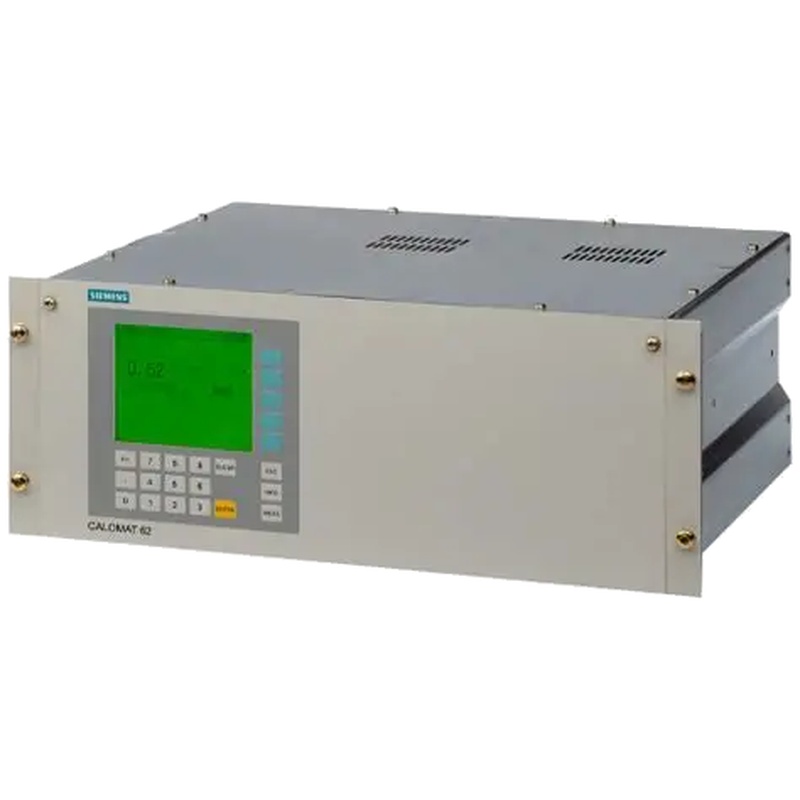

The Siemens CALOMAT 6 (Model 7MB2521-0AA00-1AA0) is a specialized gas analyzer designed for a measurement task fundamentally different from infrared-based units. This 19" rack-mounted device uses the principle of thermal conductivity (TCD) to accurately determine the concentration of hydrogen (H₂) in a nitrogen (N₂) background. It features an exceptionally wide measuring range—from 0-1% to 0-100% H₂—making it critical for industrial scenarios where monitoring and controlling hydrogen levels is essential for process safety, quality, and efficiency. Key applications include heat treatment furnaces and chemical synthesis processes.

1. Core Technology: Thermal Conductivity Detection (TCD) Demystified

Unlike the optical methods used by the Ultramat 23, the CALOMAT 6 operates on a robust physical principle: different gases have distinct heat conductivity. Hydrogen, for example, has a thermal conductivity approximately seven times higher than nitrogen.

The analyzer contains a measurement cell with heated elements. When a gas mixture flows through this cell, higher hydrogen content conducts heat away from the elements more effectively. This heat loss causes the elements’ temperature (and thus their electrical resistance) to change in a precise, measurable way—and this change is directly proportional to the hydrogen concentration.

This TCD method is highly reliable, requires no consumables, and is ideally suited for measuring binary gas mixtures (like H₂ in N₂).

2. Product Specifications and Key Features

This model is defined by its simplicity, wide measurement range, and focus on specific H₂/N₂ applications. Its key specifications include:

Product Name: Siemens CALOMAT 6 Gas Analyzer

Model Number: 7MB2521-0AA00-1AA0

Core Technology: Thermal Conductivity Detection (TCD)

Target Measurement: Hydrogen (H₂) concentration in a nitrogen (N₂) background

Measuring Range: 0-1% to 0-100% H₂ (exceptionally wide for versatile use)

Power Supply: DC 24V (a notable difference from standard AC-powered analyzers)

Mounting: 19" plug-in unit (compatible with standard industrial racks)

Gas Connections: 6 mm outer-diameter (OD) tubing (for seamless integration with sample gas systems)

3. The Critical Importance of DC 24V Power Supply

The use of a DC 24V power supply is a deliberate design choice that emphasizes the analyzer’s focus on intrinsic safety and industrial robustness.

In many areas where hydrogen is present—classified as explosive atmospheres (per ATEX/IECEx zones)—equipment must operate at low voltage and low energy to prevent ignition. DC 24V is a widely accepted safety standard for such applications. Additionally, this power configuration allows easy integration with uninterruptible power supplies (UPS) for continuous monitoring during power fluctuations, and it aligns with common distributed I/O and control cabinet architectures—enhancing overall system reliability.

4. Primary Applications: Where Hydrogen Measurement is Paramount

The CALOMAT 6 excels in scenarios where H₂/N₂ atmospheres are central to process success:

Industrial Heat Treatment Furnaces

It is used in annealing, sintering, and brazing processes, where protective H₂/N₂ atmospheres prevent metal oxidation and ensure consistent product quality. Precise H₂ control is vital for achieving the correct metallurgical properties (e.g., hardness, ductility) in finished parts.

Chemical and Petrochemical Plants

The analyzer monitors H₂ levels in process streams, such as during catalyst regeneration or as a reactant in hydrogenation processes (e.g., converting oils to fats or synthesizing chemicals). Accurate H₂ measurement ensures reaction efficiency and prevents waste or unsafe byproducts.

Generator Cooling Systems

In power plants, hydrogen is used as a coolant for large generators due to its high thermal conductivity. The CALOMAT 6 monitors for air ingress (which creates explosive H₂-air mixtures) and verifies the purity of the H₂ coolant—protecting equipment from damage and ensuring safe operation.

5. Advantages Summary

Specialized for H₂/N₂ Mixtures: Optimized exclusively for this binary pair, delivering high accuracy and long-term stability.

Exceptionally Wide Range: Measures from trace H₂ (0-1%, for safety/leak detection) to pure H₂ (0-100%, for purity monitoring), eliminating the need for multiple analyzers.

Intrinsically Safe Design: DC 24V power supply enables use in explosive atmospheres, aligning with industrial safety standards.

Low Maintenance: TCD technology has no moving parts or consumable chemical cells, reducing upkeep costs and downtime.

Frequently Asked Questions (FAQs)

1. How does TCD differ from NDIR?

NDIR uses gas-specific infrared absorption (ideal for trace gases in complex mixtures). TCD measures heat conductivity, making it perfect for one major component (e.g., H₂) in a simple background (e.g., N₂)—robust but less specific for complex mixes.

2. Why only measure H₂ in N₂?

Calibration relies on the fixed thermal conductivity difference between H₂ and N₂. A different background gas (e.g., argon) would change this contrast, causing significant measurement errors. It is calibrated for this specific binary pair.

3. What are the benefits of DC 24V power?

DC 24V is a safety standard for explosive areas, enables UPS backup for continuous monitoring, and simplifies integration with PLCs/DCS systems that use DC I/O.

4. Can it measure H₂ in other background gases?

No. This standard model is calibrated for N₂ backgrounds. Measuring H₂ in other gases (e.g., air, CO₂) would require a custom calibration curve—unsupported here.

5. Why such a wide measuring range?

Versatility: The low range (0-1%) handles safety/leak detection, while the high range (0-100%) monitors H₂ purity or production output—one analyzer serves multiple needs.

6. Which industries need H₂-in-N₂ monitoring most?

Metallurgy (heat treatment), chemical (hydrogenation/catalyst processes), and power generation (generator coolant purity) rely most heavily on this measurement.
