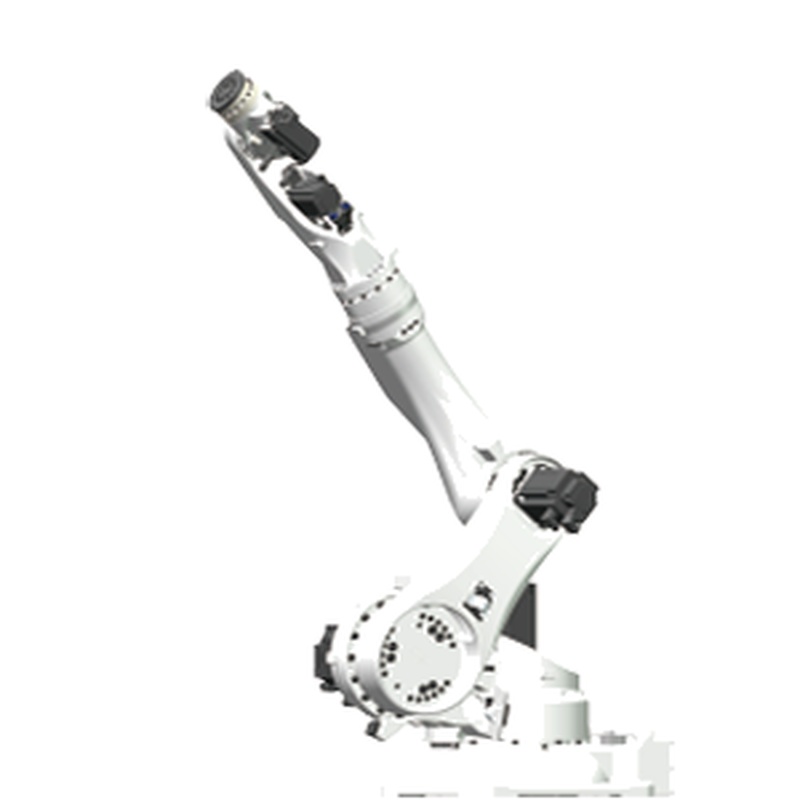

ESTUN ER45-2200-BD High Load Industrial Automated Welding Robot

　　1.Introduction to the ESTUN ER45-2200-BD

　　In the demanding arena of industrial fabrication,where weld quality and structural integrity are paramount,the ESTUN ER45-2200-BD establishes itself as a specialist engineered for strength and precision.This model is purpose-built as an Automated Welding Robot that transcends standard capabilities,designed to handle the substantial fixtures and large workpieces common in heavy equipment manufacturing.As a true High Load Industrial Robot with a 45kg payload,the ER45-2200-BD provides the necessary rigidity and stamina to carry heavy welding torches,seam trackers,and ancillary equipment without compromising speed or accuracy over its expansive 2200mm reach.It addresses the core challenge in heavy welding automation:maintaining consistent,high-quality weld seams over long paths and through complex geometries,making it an indispensable asset for sectors like construction machinery,shipbuilding,and pressure vessel fabrication.

　　2.The Demands of High-Load Welding Automation

　　Automated welding,particularly in heavy industry,presents a unique set of challenges that standard robots often cannot meet.The process involves not just the robot,but the integration of a heavy welding package(torch,wire feeder,cabling)and,critically,the mass of the workpiece itself which may require manipulation.A robot must possess exceptional structural rigidity to prevent deflection under the weight of its own tooling,as even minor vibration can lead to weld defects like porosity or inconsistent bead geometry.Furthermore,the robot must maintain precise path accuracy and speed control over long,continuous welds,which demands advanced motion control algorithms and robust mechanics.The ER45-2200-BD is conceived from the ground up to meet these demands,serving as a stable and reliable platform that ensures welding parameters set by the engineer are executed flawlessly,time after time.

　　3.Technical Features:Built for Stability and Precision

　　The performance of the ER45-2200-BD is rooted in specific design choices that prioritize stability and process control for high-load welding applications.

　　Enhanced Structural Rigidity and Payload Capacity

　　At the core of this robot is a massively reinforced arm and base structure.This design minimizes arm sag and torsional flex when operating at full 45kg capacity,which is essential for carrying advanced welding packages such as tandem MIG torches or heavy laser welding heads.The increased rigidity ensures that the tool center point(TCP)remains stable throughout its entire work envelope,a non-negotiable requirement for achieving consistent weld penetration and bead appearance.

　　Optimized Motion Performance for Welding

　　Beyond strength,the robot is tuned for the dynamics of welding.It features smooth,high-torque motion at all axes,enabling steady travel speeds essential for uniform weld deposition.Its design likely incorporates optimized inertia parameters,allowing it to smoothly accelerate and decelerate the high payload,which is crucial for welding at corners or on circular paths.The repeatability,typically within a fine margin(e.g.,±0.1mm),guarantees that complex welding paths programmed offline can be executed on the shop floor with exacting precision.

　　Integrated Design for Seamless Process Integration

　　The“BD”designation often implies a model variant optimized for welding,featuring factory-integrated harnesses and utilities on the upper arm.This internal routing protects welding cables and hoses from sparks,slag,and physical damage,reducing maintenance downtime.The robot interface is designed for straightforward connection with all major welding power sources and peripherals,such as smoke extractors or touch-sensing units,simplifying system integration.

　　4.Primary Application Scenarios

　　The ER45-2200-BD finds its primary calling in industries where weld size,component mass,and production scale are significant.

　　Heavy Machinery and Construction Equipment

　　This robot is ideal for welding the robust frames of excavators,bulldozers,and agricultural equipment.Its payload capacity allows it to handle large-diameter welding wire and gas nozzles required for deep-penetration,multi-pass welds on thick steel plates.The 2200mm reach enables it to cover large weldments with minimal repositioning.

　　Shipbuilding and Offshore Structures

　　In panel line fabrication or sub-assembly welding,the robot can perform long,straight seam welds on hull sections or structural members.Its ability to maintain a constant torch angle and travel speed over extended distances improves quality and productivity compared to manual welding.

　　Pressure Vessel and Tank Fabrication

　　For cylindrical tanks or vessels,the robot can be mounted on a linear track or in conjunction with a heavy-duty positioner.This creates a flexible cell where the robot can perform circumferential girth welds and longitudinal seams with high consistency,which is critical for product safety and integrity.

　　5.Specification Overview

　　Model:ESTUN ER45-2200-BD

　　Robot Type:6-Axis Articulated Industrial Robot

　　Maximum Payload:45 kg

　　Maximum Reach:2200 mm

　　Repeatability:High precision(e.g.,±0.1mm level,confirm with official datasheet)

　　Protection Level:IP54(Dust and water splash resistant)

　　Mounting:Floor mounted

　　Primary Application:Heavy-duty Automated Welding(MIG/MAG,Submerged Arc),Material Handling of large components

　　Key Feature:Enhanced rigidity and payload capacity optimized for welding process integration.

　　6.Expanding Your Knowledge:Key Q&A on High-Load Welding Robots

　　Q1:Why is a high payload capacity specifically important for an automated welding robot,beyond just carrying a heavy torch?

　　A high payload capacity is crucial for several reasons beyond the torch weight.First,modern welding processes often require ancillary devices attached directly to the robot's wrist.These can include laser seam tracking sensors,through-the-arc tracking systems,weld wire cleaners,or even secondary process tools like plasma cutters for edge preparation.Each adds significant mass.Second,the welding cabling and hose packages for high-amperage applications are themselves heavy and stiff;the robot must have the strength to manage the constant drag and inertia of these cables without path deviation.Finally,payload capacity correlates directly with robot rigidity.A robot designed for 45kg will have a more robust arm construction than a 20kg model,resulting in less vibration during high-deposition welding.This stability is directly linked to weld quality,as it allows for precise control of stick-out distance and travel speed,which are critical parameters for achieving consistent penetration and bead shape.

　　Q2:How does a robot like the ER45-2200-BD achieve and maintain the precise path accuracy required for high-quality welds over its large work envelope?

　　Achieving precise path accuracy involves a combination of mechanical design,calibration,and intelligent control.Mechanically,the robot uses high-precision reducers(like RV gearboxes)in its joints,which minimize backlash—the slight"play"that can cause positioning errors.The rigid arm structure,as mentioned,prevents flex.From a control perspective,the robot employs advanced kinematic models and real-time compensation algorithms.During manufacturing,each robot is meticulously calibrated to map its unique geometric parameters.During operation,the controller uses this model,along with feedback from high-resolution encoders on each motor,to calculate the exact position of the TCP hundreds of times per second.Furthermore,it can perform payload compensation,automatically adjusting the motor torque based on the known weight and center of gravity of the welding tool to counteract gravity-induced deflection,ensuring the programmed path is followed accurately in all arm orientations.

　　Q3:In heavy welding applications,how is a high-load robot typically integrated with workpiece positioning equipment like turntables or turning rolls?

　　Integration with positioning equipment is key to unlocking the full potential of a high-load welding robot.This creates a coordinated motion system.The robot(master)and the positioner(slave)are controlled by a unified system,often through a standard interface like Ethernet/IP or PROFINET.In practice,for a complex workpiece like a pressure vessel,the robot is programmed to weld a specific seam.The positioner simultaneously rotates the vessel at a calculated speed so that the weld is always in the optimal"flat"or"downhand"position relative to the torch.This coordination,known as"external axis"control,is managed seamlessly by the robot controller.It allows for continuous welding in the most favorable position,drastically improving weld quality,reducing spatter,and enabling the automation of welds that would be impossible in a fixed position.The 45kg payload of the ER45-2200-BD is well-matched to work with large,motorized positioners capable of handling equally heavy workpieces.

　　Q4:What are the primary advantages of using this class of robot for heavy welding compared to specialized welding machinery or manual welding?

　　The advantages are substantial in terms of quality,productivity,and cost-efficiency.Compared to specialized welding machinery(like gantry welders for longitudinal seams),an articulated robot offers far greater flexibility.It can be quickly reprogrammed for different part geometries and weld sequences,making it ideal for batch production of varied components.Compared to manual welding,the benefits are even more pronounced.The robot provides unmatched consistency,eliminating human variability in travel speed,arc length,and weave patterns.This leads to a dramatic reduction in defects and rework.It also increases productivity by operating continuously with high-duty cycles and improves worker safety by removing personnel from hazardous environments filled with fumes,intense heat,and arc radiation.For heavy fabrications,the robot's endurance allows it to complete long,multi-pass welds that would be physically exhausting for a human welder,ensuring the final pass is as controlled and sound as the first.

　　Q5:How can a high-load welding robot like this be incorporated into a larger digital manufacturing or Industry 4.0 strategy?

　　As a critical process node,this robot is a rich source of data that can feed a digital manufacturing ecosystem.Its controller can log vital process parameters for every weld:voltage,current,wire feed speed,gas flow,travel speed,and TCP position.This data can be timestamped and linked to a specific workpiece serial number,creating a complete digital weld record for quality traceability.In an Industry 4.0 setup,this data is transmitted to a Manufacturing Execution System(MES)or cloud platform.Here,it can be used for real-time monitoring and analytics,flagging any deviation from set parameters that might indicate a developing fault.Furthermore,welding programs can be developed and simulated offline using digital twin software and then downloaded directly to the robot,minimizing machine downtime for programming.This connectivity enables predictive maintenance schedules based on actual robot usage and arc-on hours,transforming the welding cell from an isolated station into an intelligent,data-driven component of the smart factory.
