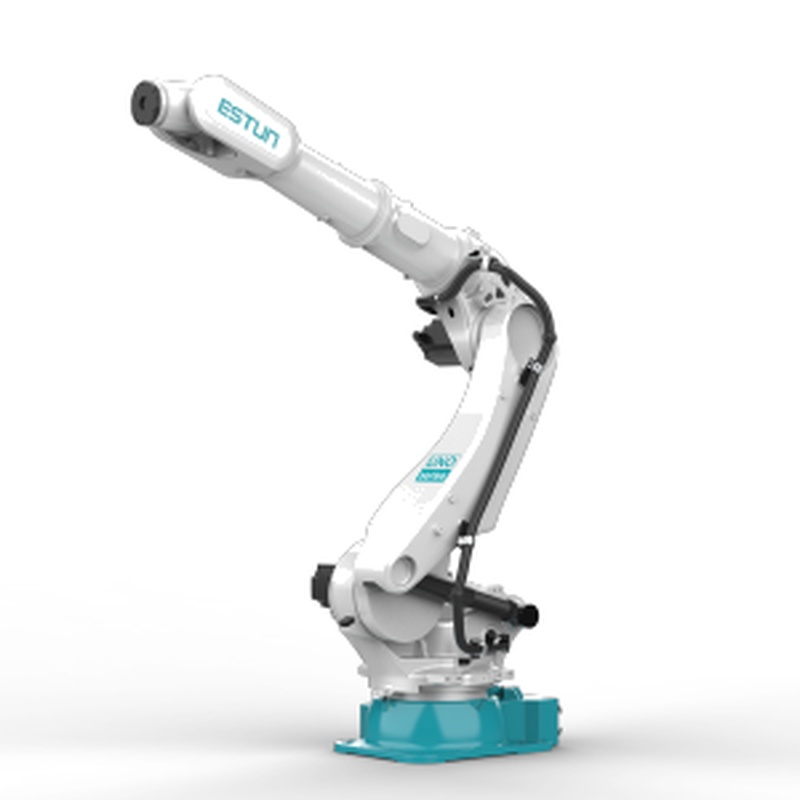

ESTUN UNO-220-3100-HR High Load Robotic Robot Arm for Palletizing

　　Discover the ESTUN UNO-220-3100-HR,a versatile Robot Arm for Palletizing and a robust High Load Robotic Arm.Engineered for IP67 environments,it combines 220kg payload,3100mm reach,and high-speed precision for demanding industries.

　　Introducing the ESTUN UNO-220-3100-HR:The Palletizing Specialist

　　In the fast-paced world of logistics and production line automation,efficiency is measured in cycles per hour and reliability under strenuous conditions.The ESTUN UNO-220-3100-HR stands out as a purpose-built Robot Arm for Palletizing that simultaneously excels as a general-purpose High Load Robotic Arm.While its 220kg payload and 3100mm reach place it firmly in the heavy-duty category,its distinguishing feature is the IP67 protection rating,signifying a robot engineered not just for strength,but for uninterrupted operation in dusty,humid,and wash-down environments typical in food&beverage,chemicals,and agriculture.The"HR"designation underscores a focus on High Repeatability and High Ruggedness,making it an ideal solution for high-speed,high-volume palletizing,depalletizing,and material transfer where uptime is critical.

　　The Evolution of Robotic Palletizing:From Simple Stacking to Intelligent Handling

　　Robotic palletizing has evolved far beyond merely stacking boxes.Modern systems like those built around the UNO-220-3100-HR are integrated material flow hubs.They involve sophisticated communication with upstream conveyors,vision systems for pattern recognition and quality checks,and advanced software for layer pattern generation and collision-free path planning.This robot type is designed for high duty cycles—constantly accelerating and decelerating its substantial mass.Unlike slower,heavier robots used for massive single-piece handling,a palletizing-optimized arm like this one balances load capacity with speed and agility,often featuring motion profiles optimized for the vertical"lift-and-place"and horizontal"extend-and-retract"motions dominant in palletizing,thereby maximizing throughput in bag,box,or case handling applications.

　　Core Design&Performance Features of the UNO-220-3100-HR

　　The performance of this robotic arm stems from a design philosophy centered on durability,speed,and environmental resistance.

　　The Imperative of IP67 Protection:This is a game-changer for many industries.An IP67 rating means the robot is completely dust-tight and can withstand immersion in up to 1 meter of water for 30 minutes.In practice,this allows it to be hosed down for cleaning in food processing plants,operate reliably in the humid,flour-dust-filled air of a bakery,or withstand the corrosive atmosphere of a fertilizer packaging facility.This level of protection drastically reduces maintenance issues related to contamination and allows for integration in areas previously considered too harsh for standard industrial robots.

　　Optimized for High-Speed,High-Load Cycles:Handling 220kg is impressive,but doing it quickly and repeatedly is where the UNO-220-3100-HR shines.Its mechanical structure and servo drives are tuned to manage high inertia efficiently.This results in faster cycle times for palletizing heavy bags or stacks of products.The robot's working range of 3100mm is optimally sized to cover multiple pallet positions or a wide feeding conveyor from a single,fixed floor mount,maximizing the output of a single automation cell.

　　Streamlined Integration for Palletizing:Unlike generic heavy robots,this model is often paired with or designed for seamless integration with palletizing-specific software and end-of-arm tooling(EOAT).This includes support for easy programming of complex layer patterns(brick,pinwheel,etc.),automatic pallet height tracking,and quick-change interfaces for different gripper types,such as versatile vacuum head systems or mechanical clampers for bags.

　　Target Industries&Specific Applications

　　The UNO-220-3100-HR finds its niche in industries where payload,environment,and speed intersect.

　　Food,Beverage&Agriculture:Palletizing bags of animal feed,flour,sugar,or fertilizer;handling crates of bottled beverages;stacking boxes of frozen goods in cold storage environments.

　　Building Materials&Chemicals:Handling heavy bags of cement,mortar,or polymer granules;palletizing boxes of tiles or slabs;transferring large chemical containers.

　　General Manufacturing&Logistics:Depalletizing raw materials onto production lines;loading/unloading heavy components from machining centers;and serving as a high-capacity transfer robot between different process stages in a factory.

　　Key Advantages:Why Choose This Robotic Arm?

　　Unmatched Environmental Resilience:The IP67 rating provides a significant operational advantage,reducing downtime due to environmental factors and expanding the possible application spaces within a plant.

　　Superior Return on Investment(ROI):By combining high load capacity with optimized speed for its class,it achieves a higher throughput rate,translating into faster payback periods compared to slower robots or manual multi-person teams.

　　Flexibility Within Heavy Payload Tasks:While a palletizing specialist,its 6-axis articulation allows it to be redeployed for other high-load tasks like machine tending or part transfer if production needs change,protecting your automation investment.

　　Technical Specifications Summary

　　Parameter Specification

　　Model ESTUN UNO-220-3100-HR

　　Type 6-Axis Articulated Industrial Robot

　　Max.Payload 220 kg

　　Max.Reach 3100 mm

　　Repeatability High(e.g.,±0.1mm-refer to official data)

　　Protection Class IP67(Dust-tight&protected against temporary immersion)

　　Mounting Floor Mount

　　Primary Application High-Speed/High-Capacity Palletizing,Heavy Material Handling

　　Expert Q&A:Navigating High-Load Robotic Palletizing

　　Q1:What specific advantages does an IP67-rated robot like the UNO-220-3100-HR offer in real-world palletizing applications compared to a standard IP54 model?

　　The advantages are profound,primarily in reliability and total cost of ownership.In a standard IP54 environment(protected against dust and water splashes),fine particulate matter like flour,powder,or cement dust can eventually infiltrate joints and motor housings,leading to increased wear on bearings and gears,and potential electrical failures.Moisture from high-pressure cleaning or ambient humidity can cause corrosion.An IP67-rated robot is hermetically sealed against these ingress.This means in a food plant,it can be directly washed down with sanitizing solutions without risk.In a dusty bagging plant,internal components remain clean.This leads to dramatically extended maintenance intervals,lower long-term repair costs,and virtually eliminates downtime caused by environmental contamination.It also provides greater flexibility for future line reconfiguration,as the robot can be placed in more challenging locations within the facility without performance degradation.

　　Q2:For high-speed palletizing of heavy items,how critical is the robot's repeatability,and what does"high repeatability"entail in this context?

　　In high-speed palletizing,repeatability is arguably more critical than absolute accuracy.The robot is taught specific points for picking and placing.Repeatability refers to its ability to return to precisely those same taught points,cycle after cycle,under the same load and conditions.With a 220kg load moving at high speeds,even a minor deviation of a few millimeters can cause a stack to become unstable,a bag to be misplaced off the edge of a pallet,or a collision with the pallet itself.High repeatability(often in the range of±0.1mm for a robot of this class)ensures stable,predictable stacking patterns essential for creating secure,transportable pallet loads.It is achieved through a combination of mechanical precision in the gearboxes and arm structure,high-fidelity feedback from encoders,and advanced control algorithms that compensate for mechanical deflection and thermal expansion,ensuring consistent performance from the first shift to the last.

　　Q3:How does the programming and setup process for a dedicated palletizing robot differ from that of a standard material handling robot?

　　The process is significantly streamlined through application-specific software.While a standard robot requires point-by-point teaching of trajectories,a modern palletizing system uses higher-level,parametric programming.The integrator or operator typically defines parameters such as:pallet dimensions,layer pattern(e.g.,5 boxes wide by 3 deep),product dimensions,and approach/retract heights.The palletizing software then automatically generates all the necessary robot positions and optimized trajectories.Many systems also feature vision system integration for picking randomly placed items from a conveyor and automatic pallet dispenser/wrapper coordination.This means the setup for a new product or pallet type can be done in minutes through a user-friendly interface(often a teach pendant or PC),rather than hours of manual teaching,drastically reducing changeover time and complexity.

　　Q4:What are the primary maintenance focus points for a high-duty-cycle,high-load palletizing robot operating in an IP67 environment?

　　While the IP67 rating protects against external elements,internal mechanical components still experience wear.Primary maintenance focuses on preventative checks of the mechanical system.This includes regularly monitoring and greasing the gearboxes in each axis according to the manufacturer's schedule,as they endure tremendous stress during high-speed acceleration with heavy loads.Checking belt tensions(if applicable)and inspecting the wear on end-of-arm tooling(suction cups,gripper jaws)is also crucial,as tool failure is a common source of stoppage.Despite the sealing,it's good practice to periodically inspect cable integrity,especially at stress points like the wrist,for any signs of fatigue.The good news is that because contaminants are kept out,the internal components often have a longer service life,making maintenance more predictable and less frequent than on a robot exposed to harsh particulates.

　　Q5:Can a single robot like the UNO-220-3100-HR handle mixed pallet loads(different box sizes on the same pallet),and what additional technology is required?

　　Absolutely.Handling mixed-SKU pallets is a growing demand in warehousing and distribution,and a capable robot like this is the perfect actuator for the task.The key additional technology is a powerful vision guidance system and sophisticated software.A 2D or 3D vision system scans the infeed conveyor to identify different box sizes,shapes,and orientations.This information is fed to the robotic cell's controller.The palletizing software then dynamically calculates the optimal stacking pattern to build a stable,dense pallet,considering each box's dimensions and weight.The robot is then instructed to pick and place each item in the correct sequence and position.This transforms the robot from a simple stacker into an intelligent material flow controller,enabling just-in-time,custom pallet building directly from the production or sorting line,which is a significant value-add in modern logistics.
